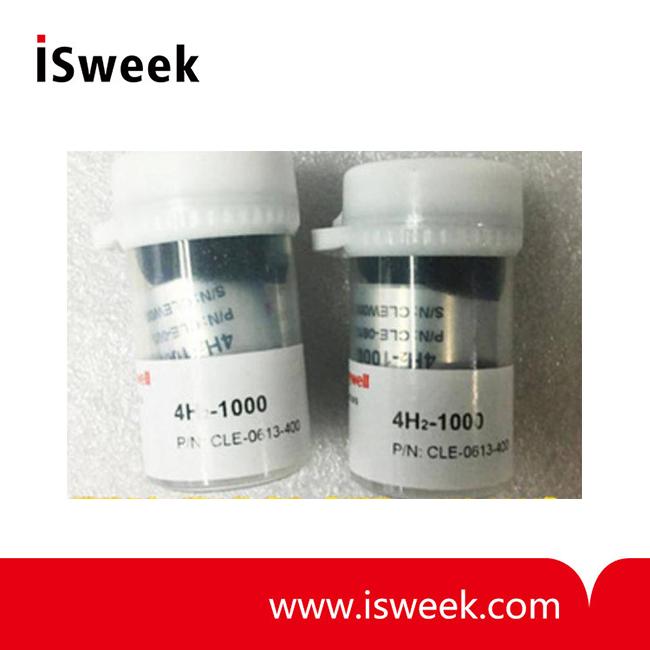

Hydrogen Sensor
-
Price
Price on request ≥1piece
-
Model Number
4H2-1000 -
Data Sheet
-
Package
Original packaging -
Specs
4H2-1000 -
Quantity
- +Send Inquiry
Find Similar Products
-
Ultra Low Power Digital Output NDIR CO2 Gas Sensor
Model Number：CozIR-A
MOQ：1
-
Ultra Low Power Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：COZIR-W/ExplorIR-W
MOQ：1
-
Low Cost HVAC Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：MisIR
MOQ：1
-
Probe Type NDIR CO2 Sensor
Model Number：COZIR-Probe
MOQ：1
-
High Speed Carbon Dioxide Sensor NDIR CO2 Sensor 20Hz 0-100%
Model Number：SprintIR-WF
MOQ：1
-
Infrared Gas Sensor for Oil Industry Methane Sensor
Model Number：PrimePell
MOQ：1
Product Description
Performance Characteristics：
|
Part Number |
CLE-0613-400 |
|
Nominal Range |
0 to 1000 ppm |
|
Maximum Overload |
2000 ppm |
|
Sensitivity |
0.02±0.01µA/ppm |
|
Baseline（20 ℃） |
<±0.2 µA |
|
Baseline Drift（-20 to 50 ℃） |
0 to 10 ppm equivalent |
|
Resolution |
10 ppm |
|
Response Time（T90） |
≤70 seconds |
|
Linearity |
Linear |
|
Long Term Output Drift |
< 2% signal/month |
Operation Conditions：
|
Temperature Range |
-20 ℃ to 50 ℃ |
|
Operating Humidity |
15 to 90 %RH non-condensing |
|
Pressure Range |
90 to 110 kPa |
|
Bias Potential |
0 mV |
|
Storage Life |
6 months in sealed container |
|
Storage Temperature |
0 ℃ to 20 ℃ |
|
Expected Operating Life |
2 years in air |
|
Warranty |
12 months from date of despatch |
Physical Characteristics：
|
Weight |
5 g (approx) |
|
Orientation Sensitivity |
None |
