HRLV-MaxSonar-EZ Series
High Resolution, Precision, Low Voltage Ultrasonic Range Finder
MB1003, MB1013, MB1023, MB1033, MB1043

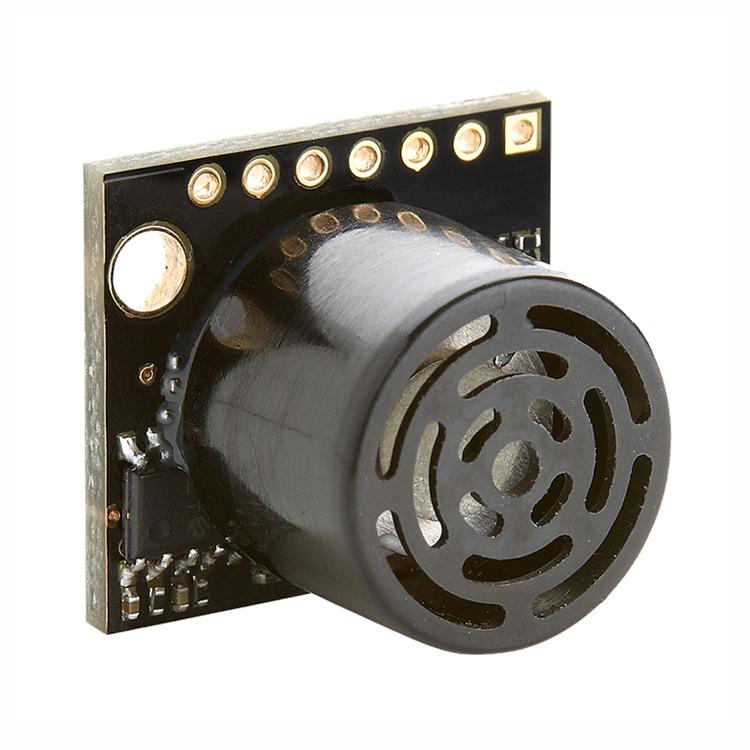

HRLV-MaxSonar-EZ Series Ultrasonic Rangefinder Product Description
The HRLV-MaxSonar-EZ sensor line is the most cost-effective solution for applications where precision range-finding, low-voltage operation, and low-cost are needed. This sensor component module allows users of other more costly precision rangefinders to lower the cost of their systems without sacrificing performance.
The HRLV-MaxSonar-EZ sensor line provides high accuracy and high resolution ultrasonic proximity detection and ranging in air, in a package less than one cubic inch. This sensor line features 1-mm resolution, target-size and operating-voltage compensation for improved accuracy, superior rejection of outside noise sources, internal speed-of-sound temperature compensation and optional external speed-of-sound temperature compensation. This ultrasonic sensor detects objects from 1-mm to 5-meters, senses range to objects from 30-cm to 5-meters, with large objects closer than 30-cm are typically reported as 30-cm. The interface output formats are pulse width, analog voltage, and serial digital in either RS232 or TTL.
Precision Range Sensing
• Range-finding at a fraction of the cost of other precision rangefinders
• Reading-to-reading stability of 1-mm at 1-meter is typical
• Accuracy is factory-matched at 1-meter to 0.1% providing a typical large target accuracy of 1% or better for most voltages and uses
• Calibrated acoustic detection zones allows selection of the part number that matches a specific application
• Compensation for target size variation and operating voltage range
• Standard internal temperature compensation and optional external temperature compensation
Range Outputs
• Pulse width, (1uS/mm)
• Analog Voltage, (5mm resolution)
• Serial, (RS232 or TTL using solder-able jumper or volume orders available as no- cost factory installed jumper)
Easy to Use Component Module
• Gracefully handles other ultrasonic sensors
• Stable and reliable range readings and excellent noise rejection make the sensor easy to use
• Easy to use interface with distance provided in a variety of outputs
• Target size compensation provides greater consistency and accuracy when switching targets
• Sensor automatically handles acoustic noise
• Sensor ignores other acoustic noise sources
• Small and easy to mount
• Calibrated sensor eliminates most sensor to sensor variations
• Very low power ranger, excellent for multiple sensors or battery based systems
General Characteristics
• Low-cost ultrasonic rangefinder
• Size less than 1 cubic inch with easy mounting
• Object proximity detection from 1-mm to 5-meters
• Resolution of 1-mm
• Excellent 3 Mean Time Between Failure (MTBF)
• Triggered operation yields a real-time
• 100mS measurement cycle
• Free run operation uses a 2Hz filter, with 100mS measurement and output cycle
• Actual operating temperature range from -40°C to +65°C, Recommended operating temperature range from -15°C to +65°C, provided proper frost prevention is employed
• Operating voltage from 2.5V to 5.5V
• Nominal current draw of 2.5mA at 3.3V, and 3.1mA at 5V
• Low current draw reduces current drain for battery operation
• Fast first reading after power-up eases battery requirements
HRLV-MaxSonar-EZ Series Ultrasonic Rangefinder Part Numbers
All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.
The following table displays all of the active and valid part numbers for this product.
High Resolution, Precision, Low Voltage Ultrasonic Range Finder
MB1003, MB1013, MB1023, MB1033, MB1043
