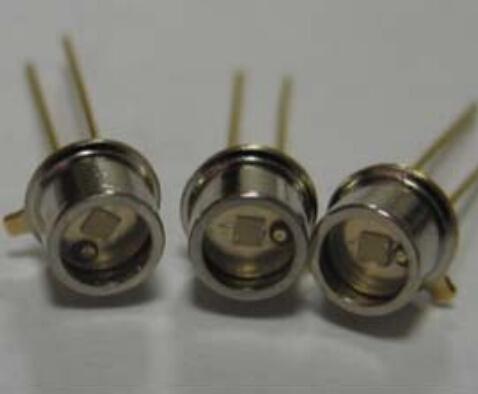

GaN-based UV Photodiode
-
Price
Price on request ≥1piece
-
Model Number
GT-ABC-L -
Data Sheet
-
Package
Original packaging -
Specs
GT-ABC-L -
Quantity
- +Send Inquiry
Find Similar Products
-
Broadband SiC Based UV Photodiode A = 0.06 mm2
Model Number：SG01S-18
MOQ：1
-
Broadband SiC Based UV Photodiode A = 0.06 mm2
Model Number：SG01S-18S
MOQ：1
-
Reflective UV Sensor
Model Number：GenUV-L365P-MM
MOQ：1
-
Reflective UV Sensor
Model Number：GUVF-P12MD
MOQ：1
-
UV-A Sensor
Model Number：GUVA-S12SD
MOQ：1
-
UV-A Sensor
Model Number：GUVA-T11GD
MOQ：1
Product Description
GT-ABC-L GaN-based UV Photodiode General Features:
• Broad band UVA+UVB+UVC photodiode
• Photovoltaic mode operation
• TO-46 metal housing
• Good visible blindness
• High responsivity and low dark current
GT-ABC-L GaN-based UV Photodiode Applications:
UV index monitoring, UV radiation dose measurement, flame detection
GT-ABC-L GaN-based UV Photodiode Specifications:
• Broad band UVA+UVB+UVC photodiode
• Photovoltaic mode operation
• TO-46 metal housing
• Good visible blindness
• High responsivity and low dark current
GT-ABC-L GaN-based UV Photodiode Applications:
UV index monitoring, UV radiation dose measurement, flame detection
GT-ABC-L GaN-based UV Photodiode Specifications:
|
Parameters |
Symbol |
Value |
Unit |
|
Maximum ratings |
|
||
|
Operation temperature range |
Topt |
-25 - 85 |
°C |
|
Storage temperature range |
Tsto |
-40 - 85 |
°C |
|
Soldering temperature (3 s) |
Tsol |
260 |
°C |
|
Reverse voltage |
Vr-max |
-10 |
V |
|
General characteristics (25°C) |
|
||
|
Chip size |
A |
1 |
mm2 |
|
Dark current (Vr = -5 V) |
Id |
<1 |
nA |
|
Temperature coefficient |
Tc |
-0.02 |
%/°C |
|
Capacitance (at 0 V and 1 MHz) |
Cp | 18 |
pF |
|
Spectral response characteristics (25°C) |
|
||
|
Wavelength of peak responsivisity |
λp |
355 |
nm |
|
Peak responsivisity (at 275 nm) |
Rmax |
0.20 |
A/W |
|
Spectral response range (R=0.1×Rmax) |
- |
300-370 |
nm |
|
UV-visible rejection ratio (Rmax/R400 nm) |
- | >104 | - |
