FS6022 Series Gas Flow Sensors

FS6022 Mass Flow Sensors are specially designed for the application of medical equipment such as personal ventilators and CPAP machines for flow monitoring and control with two flow rate ranges of 0 ~ 250 SLPM and 0 ~ 300 SLPM, respectively.  The <0.5 cmH2O/L/sec. This package withstands a maximum pressure of 0.2 MPa (29 psi) without compromising performance.

The mechanical interface is the standard ISO-22 mm combined male/female medical connector that allows the sensor to be readily applied to equipment with a minimal possible dead space.

Features
- Mass flow range: 0 ~ 250 SLPM, 0 ~ 300 SLPM
- Fast response time: 8 ms typical
- Highly sensitive in small flow rate
- Low power consumption
- Specially designed for medical equipment
- Sterilizable for reuse

Mechanical Dimensions

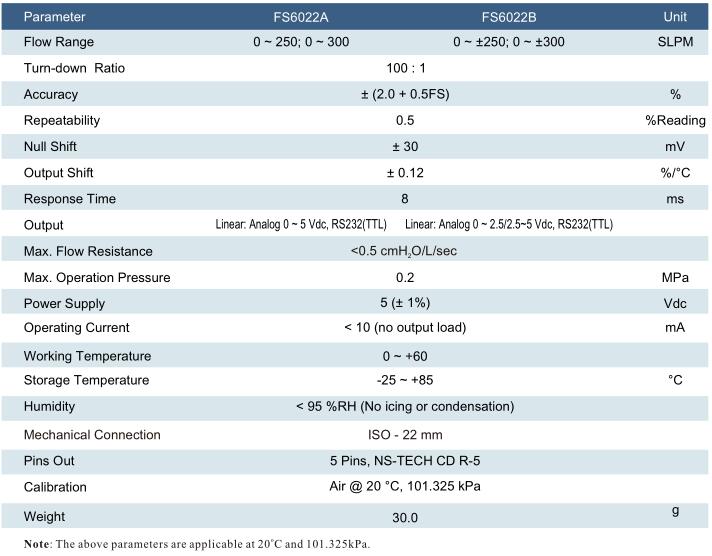

Specifications

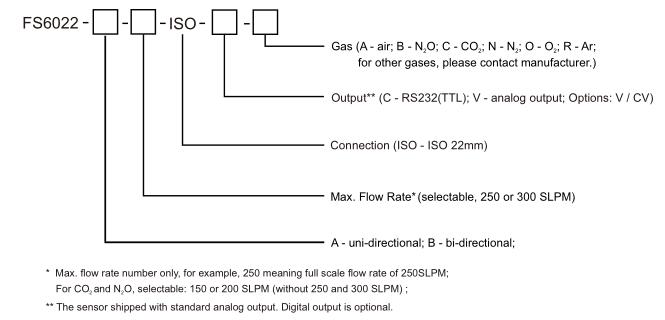

Product Selection
