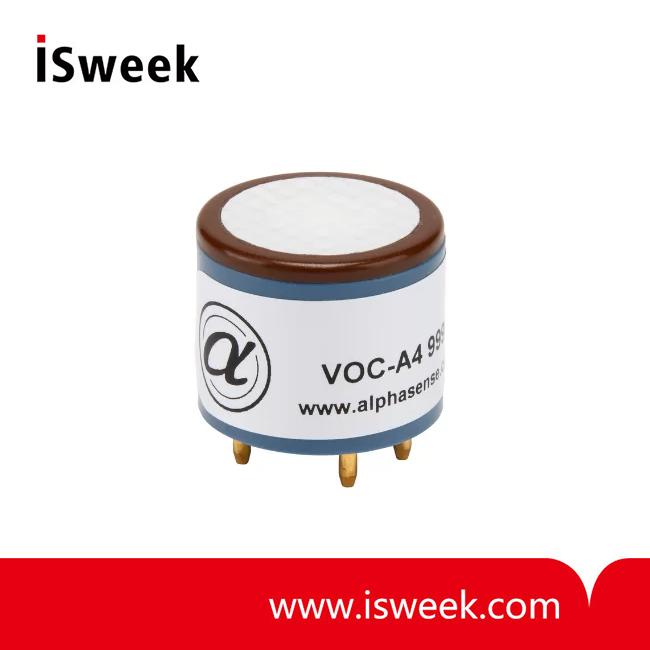

Electrochemical VOC sensor
-
Price
Price on request ≥1piece
-
Model Number
VOC-A4 -
Data Sheet
-
Package
Original packaging -
Specs
VOC-A4 -
Quantity
- +Send Inquiry
Find Similar Products
-
Ultra Low Power Digital Output NDIR CO2 Gas Sensor
Model Number：CozIR-A
MOQ：1
-
Ultra Low Power Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：COZIR-W/ExplorIR-W
MOQ：1
-
Low Cost HVAC Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：MisIR
MOQ：1
-
Probe Type NDIR CO2 Sensor
Model Number：COZIR-Probe
MOQ：1
-
High Speed Carbon Dioxide Sensor NDIR CO2 Sensor 20Hz 0-100%
Model Number：SprintIR-WF
MOQ：1
-
Infrared Gas Sensor for Oil Industry Methane Sensor
Model Number：PrimePell
MOQ：1
Product Description
VOC-A4 Electrochemical VOC sensor Schematic Diagram
VOC-A4 Electrochemical VOC sensor SPECIFICATION CO SENSING
|
PERFORMANCE |
||
|
Sensitivity |
nA/ppm in 2ppm CO |
230 to 410 |
|
Response time |
t90 (s) from zero to 2ppm CO |
< 30 |
|
Zero current |
nA in zero air at 20℃ |
± 200 |
|
Noise* |
±2 standard deviations (ppb equivalent) |
20 |
|
Range |
ppm limit of performance warranty |
190 |
|
Linearity |
ppm CO error at full scale, linear at zero, 10ppm CO |
± 1.5 |
|
Overgas limit |
maximum ppm for stable response to gas pulse |
1000 |
|
LIFETIME |
||
|
Zero drift |
ppb equivalent change/year in lab air |
±500 |
|
Sensitivity drift |
% change/year in lab air, monthly test |
< 15 |
|
Operating life |
months until 50% original signal (24 month warranted) |
> 36 |
|
ENVIRONMENTAL |
||
|
Sensitivity @ -20℃(% output @ -20°C/output @ 20℃) @ 2ppm CO |
50 to 80 |
|
|
Sensitivity @ 50℃(% output @ 50°C/output @ 20℃) @ 2ppm CO |
100 to 120 |
|
|
Zero @ -20℃ |
nA change from 20℃ |
± 20 |
|
Zero @ 50℃ |
nA change from 20℃ |
± 100 |
