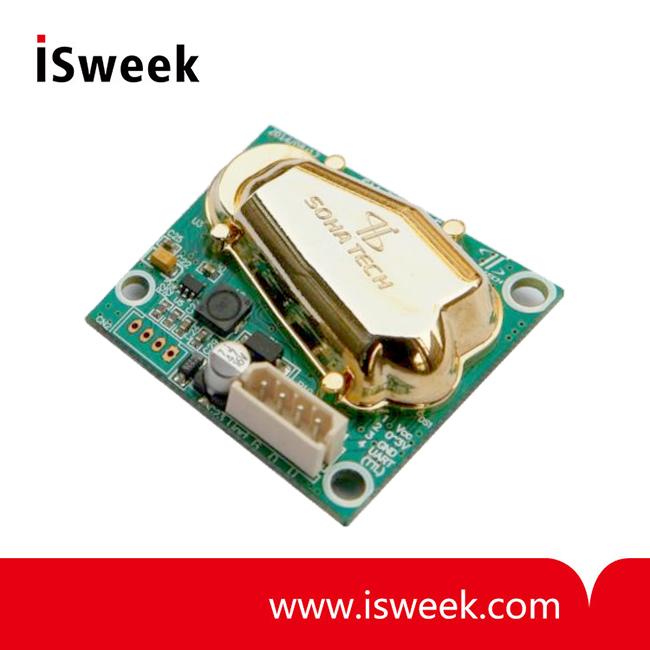

Dual Light Wavelength NDIR Carbon Dioxide (CO2) Sensor Module
-
Price
Price on request ≥1piece
-
Model Number
SH-DS -
Data Sheet
-
Package
Original packaging -
Specs
SH-DS -
Quantity
- +Send Inquiry
Find Similar Products
-
Ultra Low Power Digital Output NDIR CO2 Gas Sensor
Model Number：CozIR-A
MOQ：1
-
Ultra Low Power Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：COZIR-W/ExplorIR-W
MOQ：1
-
Oxygen Gas Sensor (O2 Sensor)
Model Number：O2-M2
MOQ：1
-
Low Cost HVAC Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：MisIR
MOQ：1
-
Probe Type NDIR CO2 Sensor
Model Number：COZIR-Probe
MOQ：1
-
High Speed Carbon Dioxide Sensor NDIR CO2 Sensor 20Hz 0-100%
Model Number：SprintIR-WF
MOQ：1
Product Description
SH-DS NDIR Carbon Dioxide Sensor Module Features
• Best Extremely Precise Sensor
• Quick Response Time
• Long Time Use, Stable performance at High & Low Temperature
• Waterproof Filter for anti static filters fine dust and humidity in the air
• One-way air indraft for represent average value when momentary CO2 Value change in the air
• Low Current consumption
• Output support: UART, 0~3V Analog
SH-DS NDIR Carbon Dioxide Sensor Module Application
• CO2 Control for Indoor Air Quality
• CO2 Measuring for Ventilation Control
• CO2 Control for Building, Hospital, School
• CO2 Control for Air cleaner, Air conditioner.
• Mushroom Control, Boiler Control
SH-DS NDIR Carbon Dioxide Sensor ModuleTechnical Specification
• Best Extremely Precise Sensor
• Quick Response Time
• Long Time Use, Stable performance at High & Low Temperature
• Waterproof Filter for anti static filters fine dust and humidity in the air
• One-way air indraft for represent average value when momentary CO2 Value change in the air
• Low Current consumption
• Output support: UART, 0~3V Analog
SH-DS NDIR Carbon Dioxide Sensor Module Application
• CO2 Control for Indoor Air Quality
• CO2 Measuring for Ventilation Control
• CO2 Control for Building, Hospital, School
• CO2 Control for Air cleaner, Air conditioner.
• Mushroom Control, Boiler Control
SH-DS NDIR Carbon Dioxide Sensor ModuleTechnical Specification
| Measuring Type | Dual Light Wavelength Non-Dispersive Infrared (NDIR) |
| Measuring Range | 0 ~ 3,000 / 5,000 / 50,000 / 100,000 ppm |
| Accuracy | ±2% FS, ±3% measured value @ 0 ~ 50°C |
| Response Time | Every 2.0 Seconds |
| Warm-Up Time @25°C | < 90sec |
| Operating Condition | -10 ~ 50°C, 0 ~ 99.5% RH (Non Condensing) |
| Output | Analog : 0~3VDC (0~3000, 5000, 10,000 ppm) |
| UART: 9600bps [CN1] / TTL Level 3.3V | |
| Power Input | DC 5V ~ 9V Input (5 ~ 7V recommendation) |
| Consumption Current | Normal 35mA, Peak 80mA |
| Interface | 4PIN Header[CN1] |
| Molex 5267 With 2.54mm spacing. | |
| Size | (W)40mm x (H)36mm x (D)11.9 mm |
|
Weight |
12g |
