Product Description

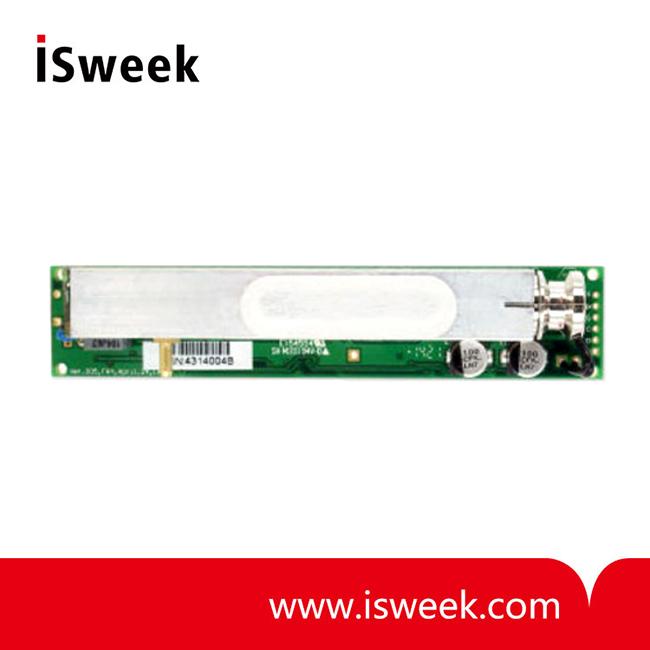

ZG Module - ZG01C
• Use Dual Beam NDIR technology to improve the long term stability
• Cost - effective CO2 monitors made with IR-SOC technology
• Small Module for OEM

ZG01C NDIR CO2 Sensor Module Application:
• IAQ (Indoor air quality)
• Greenhouse
• HVAC.DCV (Demand Control Ventilation)

ZG01C NDIR CO2 Sensor Module Specifications

Method - Dual Beam NDIR
Sample Method Diffusion or flow through (50~200ml/min)
Operating Conditions 0~50°C (32~122° F) 0-95% RH, non-condensing
Storage conditions -20~60°C (-4~140°F), 95%RH
Temperature
 Typ.±0.2% of reading per °C or ±2 ppm per °C, whichever is greater,
Dependence referenced to 25°C
Performance - CO2 Channel
Measurement Range
 0~3,000ppm/ 0.3% (ZG01C) or 0~10,000ppm/ 1.0% (ZG01C-M)
Accuracy
 ±50ppm or 5% of reading
Repeatibility
 ±20ppm
Temperature Dependence
 Typ.±0.2% of reading per °C or ±2 ppm per °C, whichever is greater, referenced to 25°C
Pressure Dependence
 0.13% of reading per mm Hg
Response Time
 About 2 min
Resolution
 1ppm
Warm Up Time
 <60 sec
Performance - Temperature Channel
Temperature Range
 0~50°C (32~122° F)
Accuracy
 ±1°C(±2°F) When the fan blows to the device directly, the accuracy of temperature is ±1.5 °C.
Response Time
 20-30 minutes (case must equilibrate with environment)
Power Supply and Output
Power Supply
 5VDC supply (±5%),Ripple and Noise (mVp-p) 200
Power Consumption
 Max.200mA, average :20mA
Output Interface
 6pin Vertical Connector, Space=2.0mm &FFC (Flat Flexible Cable) connector
Digital Output
 UART (Baud Rate: 19200, Check Bit: None, Data Bit: 8 bit, Stop Bit: 1)
