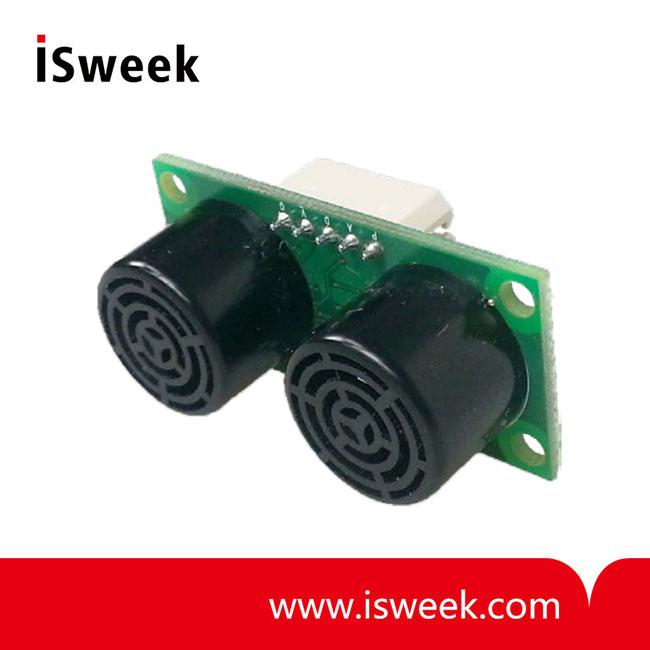

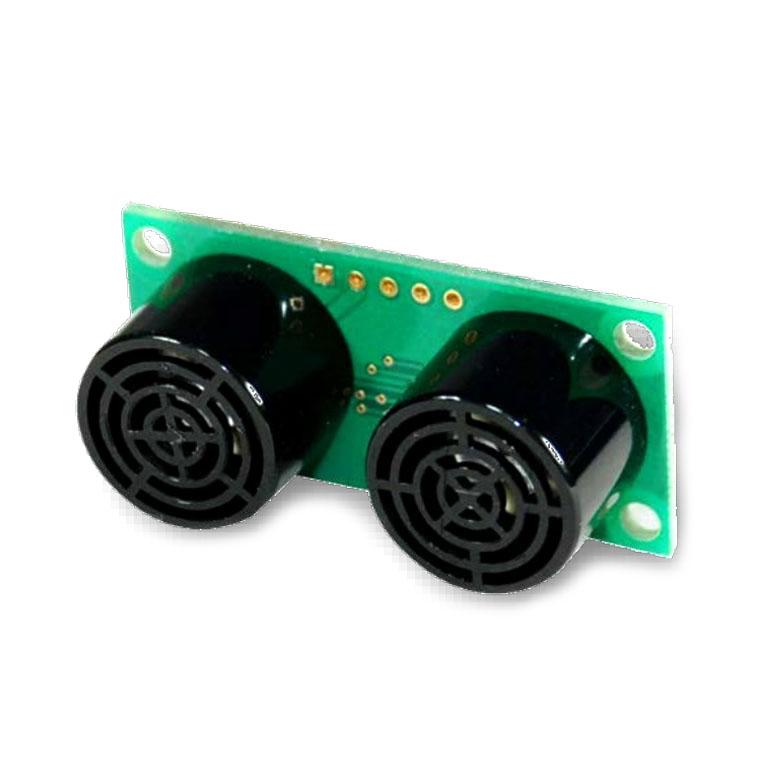

Distance Measurement Interface Boards

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    HG-LB40C-5V-DM

  • Data Sheet

  • Package

    Original packaging

  • Specs

    HG-LB40C-5V-DM

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

HG-LB40C-5V-DM
Distance Measurement Interface Boards with Combi ASIC Ultrasonic Sensor & Module

HG-LB40C-5V-DM Distance Measurement Interface Boards Features
• Low-power, high-sensitivity module.
• Choose from a wide variety of input/output Mode.
• Auto sensitivity control function as a distance proportional to the distance error captain.
• The same standards as existing foreign products and mutually replaceable.

HG-LB40C-5V-DM Distance Measurement Interface Boards Specification
Frequency (KHz)
 40±2
Transmit Mode
 External Trigger
 TTL Pulse
(100~700 ㎲)
Repetition Rate
(10~30 time / sec)
Receiver Output Signal
 Analog
 ±2 V max
at 2.5 V Base Line
Real Time Pulse
 4~5 V TTL,
All the objects detected
Distance Pulse
 4~5 V TTL
Only the nearest Object
Input DC & Detecting Range
(at in front angle flat plate)
 Low Voltage Type (5V)
 0~3 m
(Conventional, HG-LB40C)
