Digital Gas Sensor Module - Nitrogen Dioxide
-
Price
Price on request ≥1piece
-
Model Number
N1-21-20 -
Data Sheet
-
Package
Original packaging -
Specs
N1-21-20 -
Quantity
- +Send Inquiry
Find Similar Products
-
Ultra Low Power Digital Output NDIR CO2 Gas Sensor
Model Number：CozIR-A
MOQ：1
-
Ultra Low Power Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：COZIR-W/ExplorIR-W
MOQ：1
-
Low Cost HVAC Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：MisIR
MOQ：1
-
Probe Type NDIR CO2 Sensor
Model Number：COZIR-Probe
MOQ：1
-
High Speed Carbon Dioxide Sensor NDIR CO2 Sensor 20Hz 0-100%
Model Number：SprintIR-WF
MOQ：1
-
Infrared Gas Sensor for Oil Industry Methane Sensor
Model Number：PrimePell
MOQ：1
Product Description

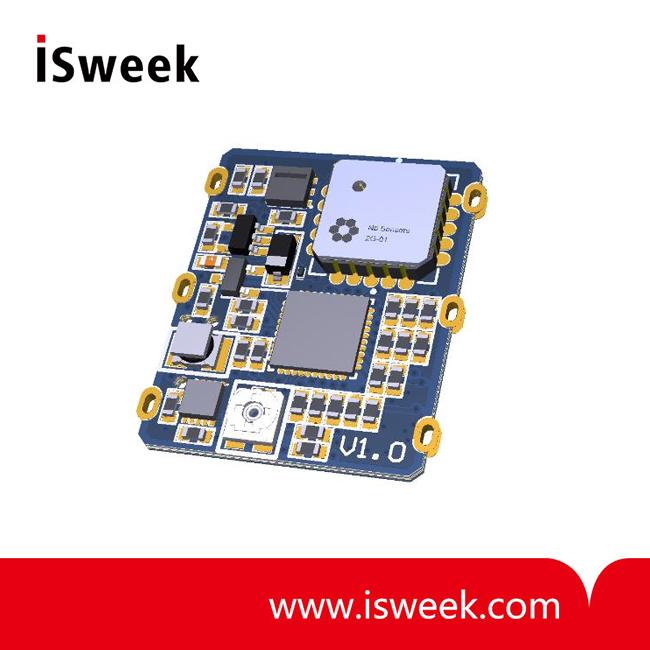

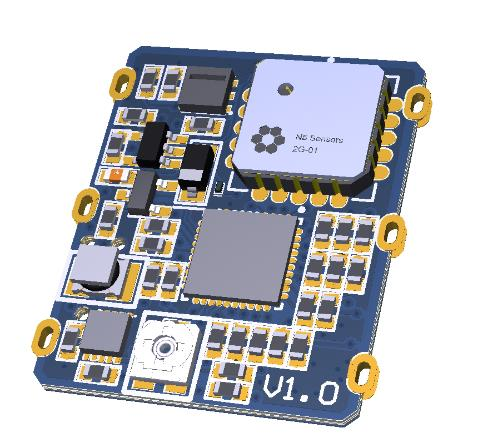

N1-21-20 Digital Gas Sensor Module - Nitrogen Dioxide Product Summary：
The N1-21-20 sensor integrated with a digital gas module (DGM) is designed for the measurement of NO2 gas concentration. It utilizes N5’s unique specific gas sensor technology with tailored selectivity. The module provides calibrated, ppm readings of gas concentration with an on-board humidity and temp. sensor for automatic result compensation.
N1-21-20 Digital Gas Sensor Module - Nitrogen Dioxide Key Features & Benefits：
• Better selectivity than commercially available sensors
• Improved stability in harsh environment
• Industry leading reliability
• Integrable with plug-in module
• UV assisted sensing enables room-temp. operation
• Ultra-low power operation
• Small form factor & Lightweight
• Integrated RH & T sensors
• Efficient I2C communication
• Siloxane resistant
• RoHS compliant
N1-21-20 Digital Gas Sensor Module - Nitrogen Dioxide Applications：
• IoT and Connected Devices
• Toxic Gas Detection
• Smart Cities
• Environmental Monitoring
• Distributed Sensor Systems
• Smart Homes
• Appliances
N1-21-20 Digital Gas Sensor Module - Nitrogen Dioxide Technical Specifications：
|
PERFORMANCE CHARACTERISTICS |
|
|
Measurement Range |
0.5-50 ppm |
|
Maximum Overload |
500 ppm |
|
Lower Detection Limit |
10 ppb |
|
Sensitivity |
10 mV/ppm |
|
Response Time (T90) |
~100 s |
|
Resolution |
0.1 ppm |
|
Repeatability |
< +/- 3 % of reading |
|
MECHANICAL |
|
|
Dimensions |
20 x 25 mm (0.8” x 1”) |
|
Weight |
1g |
|
Housing Material |
Ceramic |
|
ENVIRONMENTAL |
|
|
Operating Temperature Range |
-20 to 80 ℃ |
|
Operating Humidity Range |
0 to 95% RH |
|
Operating Pressure |
1 atm ± 10% |
|
LIFETIME |
|
|
Expected Operating Life |
4 years |
|
Long-Term O/P Drift |
3% /month |
|
Storage Life |
2 years in original packaging |
|
Warranty |
1 year |
