Product Description

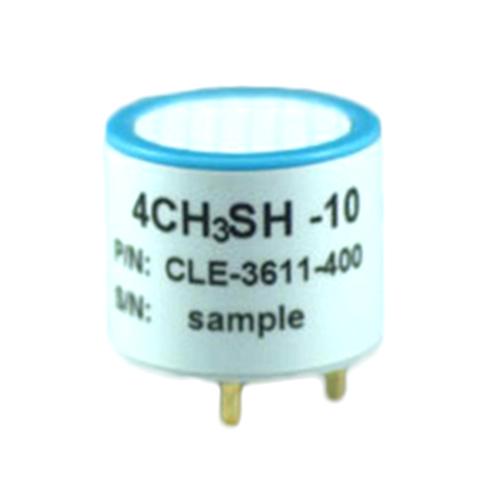

Classic Line 4-CH3SH-10 Sensor
Methyl Mercaptan Sensor 0-10 ppm

4-CH3SH-10 Methyl Mercaptan Sensor Specification

Performance Characteristics
Part number	CLE-3611-400
Nominal Range	10 ppm
Maximum Overload	20 ppm
Sensitivity	0.70 ± 0.15 μA/ppm
Baseline (20°C)	< ± 0.2 μA
Baseline Drift (-20 to 50°C)	0 to 0.6 ppm equivalent
Resolution	0.1 ppm
Response Time (T90)	≤ 35 seconds
Linearity	Linear
Long Term Output Drift	<2% signal/month
Operation Conditions
Temperature Range	-20°C to 50°C
Operating Humidity	15 ~ 90%RH non-condensing
Pressure Range	Atmospheric ±10%
Bias Potential	0 mV
Storage Life	6 months in RAE container
Storage Temperature	0°C to 20°C
Expected Operating Life	2 years in air
Warranty	12 months from date of despatch
Physical Characteristics
Weight	5 g (approx)
Orientation Sensitivity	None

4-CH3SH-10 Methyl Mercaptan Sensor Outline Dimensions
