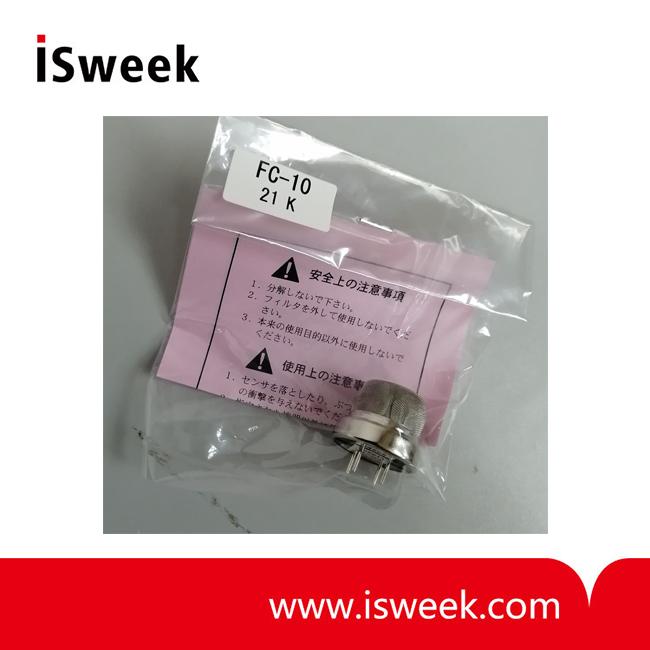

Catalytic Combustion Type Sensor
-
Price
Price on request ≥1piece
-
Model Number
FC-10 -
Data Sheet
-
Package
Original packaging -
Specs
FC-10 -
Quantity
- +Send Inquiry
Find Similar Products
-
Ultra Low Power Digital Output NDIR CO2 Gas Sensor
Model Number：CozIR-A
MOQ：1
-
Ultra Low Power Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：COZIR-W/ExplorIR-W
MOQ：1
-
Low Cost HVAC Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：MisIR
MOQ：1
-
Probe Type NDIR CO2 Sensor
Model Number：COZIR-Probe
MOQ：1
-
High Speed Carbon Dioxide Sensor NDIR CO2 Sensor 20Hz 0-100%
Model Number：SprintIR-WF
MOQ：1
-
Infrared Gas Sensor for Oil Industry Methane Sensor
Model Number：PrimePell
MOQ：1
Product Description
Characteristics

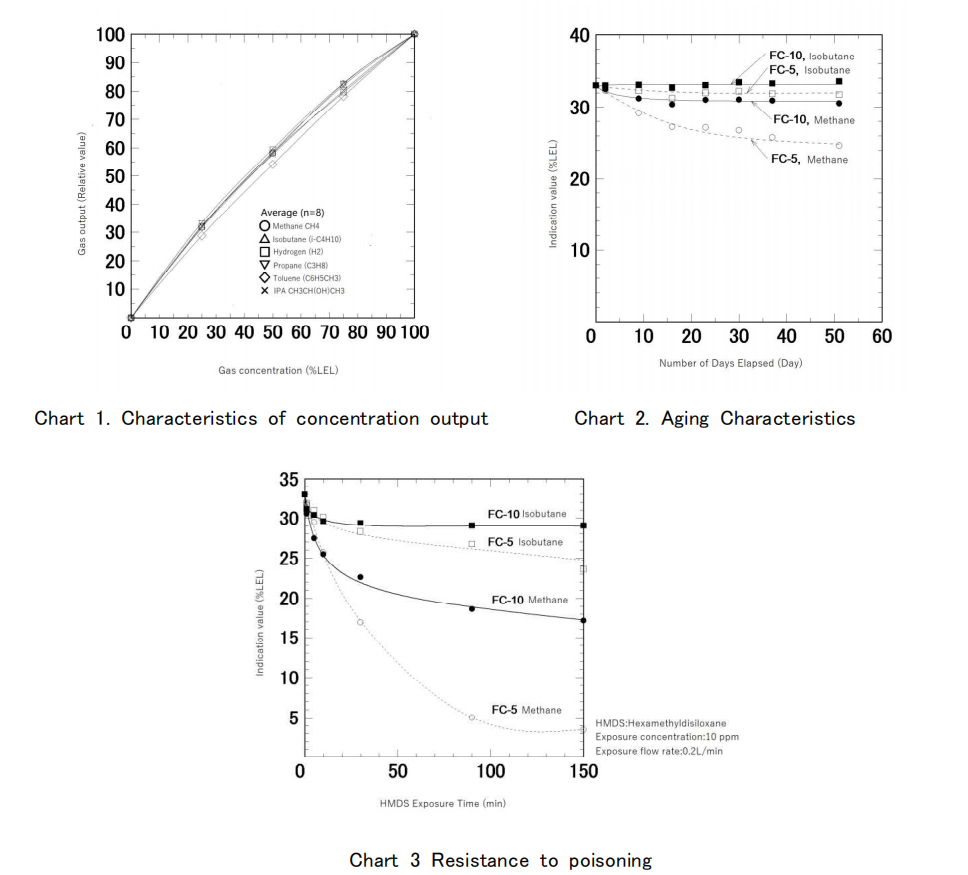

・Characteristics of concentration output is almost linear, so accuracy of indication is high [Chart 1]
・Compared to previous model (FC-5), FC-10 has superior long-term stability, so it is possible to make maintenance cycle longer, and reduce the operation cost. [Chart 2]
・Compared to previous model (FC-5), FC-10 has superior resistance to poisoning. [Chart 3]
Specification
|
Name |
Catalytic Combustion Type Sensor |
|
Model |
FC-10 |
|
Gas to detect |
Combustible gas in air (leakage detection) Note) Do not use for continual monitoring. |
|
Range |
0～100%LEL |
|
Accuracy of indication |
±5% of full scale (Immediately after calibration) |
|
Usage condition |
Temperature：-10℃～40℃, Humidity：95%RH or less than 95%RH (No condensation) |
|
Power supply |
Rated voltage power supply 2.4V |
