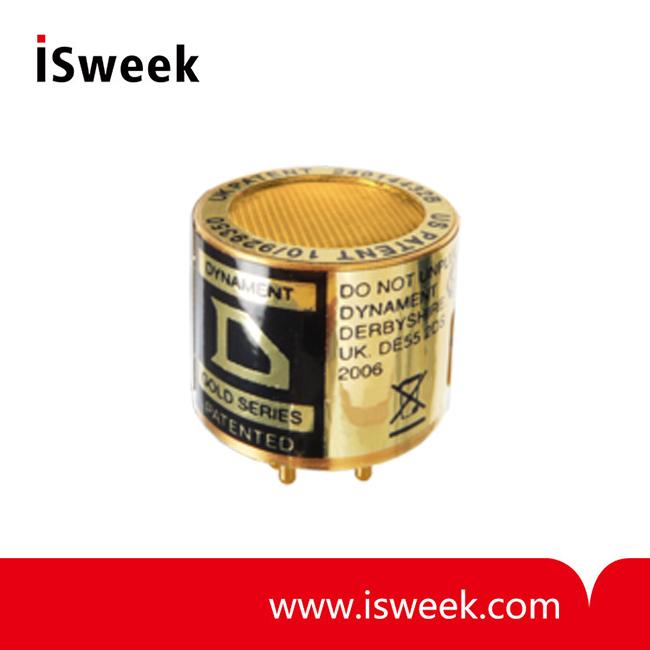

Carbon Dioxide Infrared Sensor
-
Price
Price on request ≥1piece
-

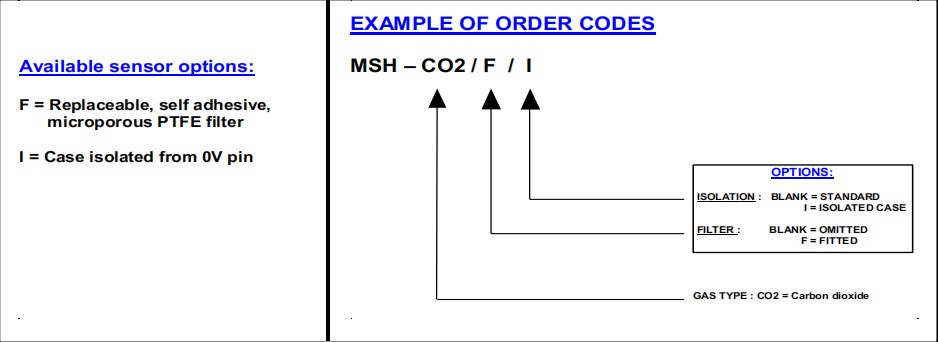

Model Number
MSH-CO2 -
Data Sheet
-
Package
Original packaging -
Specs
MSH-CO2 -
Quantity
- +Send Inquiry
Find Similar Products
-
Ultra Low Power Digital Output NDIR CO2 Gas Sensor
Model Number：CozIR-A
MOQ：1
-
Ultra Low Power Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：COZIR-W/ExplorIR-W
MOQ：1
-
Low Cost HVAC Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：MisIR
MOQ：1
-
Probe Type NDIR CO2 Sensor
Model Number：COZIR-Probe
MOQ：1
-
High Speed Carbon Dioxide Sensor NDIR CO2 Sensor 20Hz 0-100%
Model Number：SprintIR-WF
MOQ：1
-
Infrared Gas Sensor for Oil Industry Methane Sensor
Model Number：PrimePell
MOQ：1
Product Description
DESCRIPTION
Dynament infrared sensors operate by using the NDIR principle to monitor the presence of target gas. The sensor
contains a long life tungsten filament infrared light source, an optical cavity into which gas diffuses, a dual temperature
compensated pyroelectric infrared detector and an integral thermistor to monitor the internal temperature. The infrared
source should be driven externally with a constant voltage supply switched at a fixed frequency with a 50% duty cycle.
The dual pyroelectric detector produces two output signals in response to pulsed incident radiation from the source:
• An active signal which decreases in the presence of target gas
• A reference signal which is used to monitor the intensity of the source
FEATURES
▪ High sensitivity to carbon dioxide
▪ Gas diffusion sampling
▪ Standard sensor size
▪ Temperature compensated detector elements
▪ Fast Response
▪ Wide operating temperature range
▪ Internal temperature signal
▪ Low power
SPECIFICATION
|
Maximum lamp Power Requirements: |
5V d.c. 60mA max. (50% duty cycle source drive) |
|
Minimum operating voltage: |
3.0V d.c. (50% duty cycle source drive) |
|
Source drive frequency: |
2.0Hz minimum, 3.0 Hz typical, 4.0 Hz maximum |
|
Active mV pk-pk output in N2: |
5.2mV typical @ 3Hz, 50% duty cycle |
|
Reference mV pk-pk output in N2: |
4.0mV typical @ 3Hz, 50% duty cycle |
|
Sensitivity (reduction in active signal) at 20℃, 3Hz, 50% duty cycle: |
14% typical @ 5000ppm CO2 30% typical @ 2.0% volume CO2 |
|
Measuring range: |
0 -1000ppm up to 0 - 5% volume CO2 |
|
Resolution: |
1% of measuring range |
|
Warm up time: |
To final zero ± 100ppm : <20s @20°C (68°F) ambient To specification: < 30 minutes @20°C (68°F) ambient |
|
Response Time T90: |
<30s @20℃ (68°F) ambient |
|
Zero Repeatability: |
±50ppm @20℃ (68°F) ambient |
|
Span Repeatability: |
±50ppm @20℃ (68°F) ambient |
|
Long term zero drift: |
±50ppm per month @20℃ (68°F) ambient |
|
Operating temperature range: |
-20℃to +50℃(-4°F to 122°F) |
|
Storage temperature range: |
-20℃ to +50℃ (-4°F to 122°F) |
|
Humidity range: |
0 to 95% RH non-condensing. |
|
MTBF: |
> 5 years |
|
Temperature signal: |
Integral thermistor for temperature monitoring |
|

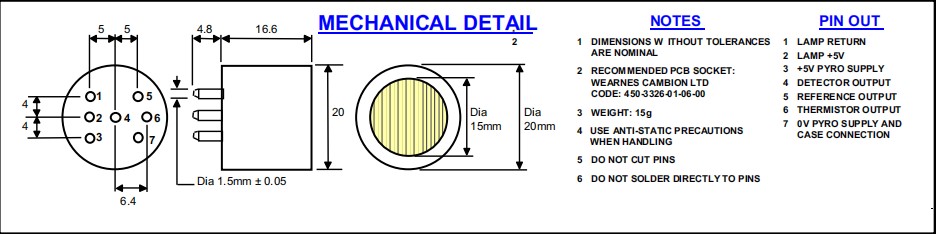

Weight: |
17 grams |
Refer to Technical Data Sheet TDS0022 – General Description for further information
