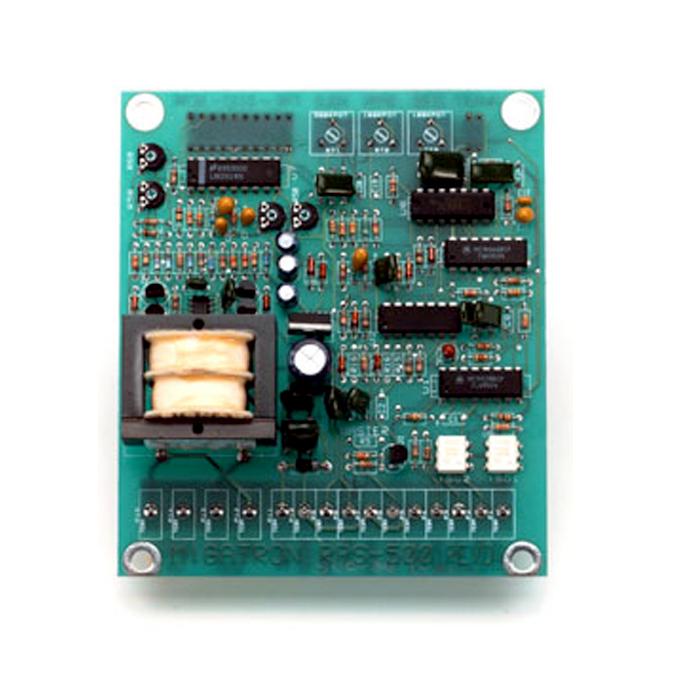

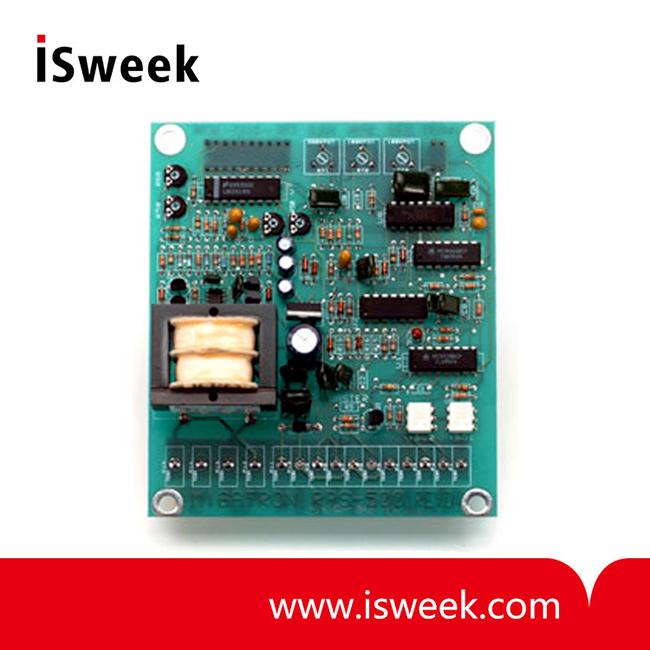

Analog Ranging Card
-
Price
Price on request ≥1piece
-
Model Number
RPS-500 -
Data Sheet
-
Package
Original packaging -
Specs
RPS-500 -
Quantity
- +Send Inquiry
Find Similar Products
-
LV-MaxSonar-EZ1 High Performance Ultrasonic Rangefinder
Model Number：MB1010
MOQ：1
-
USB-CarSonar-WR USB Ultrasonic Proximity Sensor
Model Number：MB8450
MOQ：1
-
I2CXL-MaxSonar-EZ Series Industrial Indoor Ultrasonic Sensors MB1202, MB1212
Model Number：MB1222, MB1232, MB1242
MOQ：1
-
XL-MaxSonar-WR Series Ultrasonic Sensor MB7051, MB7052, MB7060, MB7062, MB7070
Model Number：MB7072, MB7076, MB7092
MOQ：1
-
LV-MaxSonar-EZ0 High Performance Ultrasonic Rangefinder
Model Number：MB1000
MOQ：1
-
ParkSonar-EZ Series Ultrasonic Proximity Sensors MB1001, MB1002, MB1005, MB1006
Model Number：MB1007, MB1008, MB1009
MOQ：1
Product Description
RPS-500 Analog Ranging Card Features
• Analog Ranging Card
• Ranges: 2-14", 5-36", 5-72", and 10-240"
• 2500 Volts Isolation
• 0 - 10 VDC Analog Voltage
• 4 - 20 mA Analog Current
• Inverting Switch
• Zero, Span, Sample & Hold Controls
• 120VAC or 24VDC Power Input
RPS-500 Analog Ranging Card Description
The RPS-500 ranging board was designed to give analog voltage and current outputs proportional to distance and can be used with the RPS-100, RPS-300, RPS-325 or RPS-326. It is a fast, accurate means of converting analog pulse width generated by the ultrasonic sensor into analog voltage and current. Ranges available are 2" to 14", 5" to 36", 5" to 72", 10" to 240".
• Analog Ranging Card
• Ranges: 2-14", 5-36", 5-72", and 10-240"
• 2500 Volts Isolation
• 0 - 10 VDC Analog Voltage
• 4 - 20 mA Analog Current
• Inverting Switch
• Zero, Span, Sample & Hold Controls
• 120VAC or 24VDC Power Input
RPS-500 Analog Ranging Card Description
The RPS-500 ranging board was designed to give analog voltage and current outputs proportional to distance and can be used with the RPS-100, RPS-300, RPS-325 or RPS-326. It is a fast, accurate means of converting analog pulse width generated by the ultrasonic sensor into analog voltage and current. Ranges available are 2" to 14", 5" to 36", 5" to 72", 10" to 240".
RPS-500 Analog Ranging Card Specifications
|
Power Input: |
120 VAC or 24 VDC |
|
Ambient Temperature: |
0°C to 60°C or 32°F to 140°F |
|
Output 4 - 20mA: |
Current sourcing, load 0 to 500 ohms. Reference to "GND OUT" terminal. |
|
Output 0 - 10VDC: |
Load Equal to or Greater than 500 ohms. Reference to "GND OUT" terminal. |
|
Up Date Time: |
10mS 14" card, 20ms 36" card, 40mS 72" card, 150mS 240" card. |
|
ZERO Control: |
Adjustable |
|
SPAN Control: |
Adjustable 5 : 1 ratio. |
|
Switches: |
1 ON, 2 ON increase voltage and current with distance. 1 OFF, 2 OFF decrease voltage and current with distance. |
|
Output Isolation: |
2500V for outputs 0-10 VDC, 4-20MA when powered by 120 VAC. |
|
PART NUMBER |
RANGE |
OUTPUT |
|
RPS-500-14 |
2" - 14" |
Analog 0 - 10 volt, 4 - 20mA, Inverted or non-inverted |
|
RPS-500-36 |
5" - 36" |
Analog 0 - 10 volt, 4 - 20mA, Inverted or non-inverted |
|
RPS-500-72 |
5" - 72" |
Analog 0 - 10 volt, 4 - 20mA, Inverted or non-inverted |
|
RPS-500-240 |
10" - 240" |
Analog 0 - 10 volt, 4 - 20mA, Inverted or non-inverted |
