Voltage/mA Calibrator
-
Price
Price on request ≥1piece
-
Model Number
MS7221 -
Data Sheet
-
Package
Original packaging -
Specs
MS7221 -
Quantity
- +Send Inquiry
Find Similar Products
-
Personal Tracker & Mobile Phone
Model Number：MAMBO2-B6
MOQ：1
-
Mobile Time Registration System with GPS receiver and RFID reader
Model Number：MTR-1-RF
MOQ：1
-
STEPPIII Evalkit
Model Number：Eval-01
MOQ：1
-
Antennas for Telematics and AVL systems
Model Number：FAL-ANT
MOQ：1
-
Solar Power Meter
Model Number：SM206
MOQ：1
-
Screen Brightness Meter
Model Number：SM208
MOQ：1
Product Description

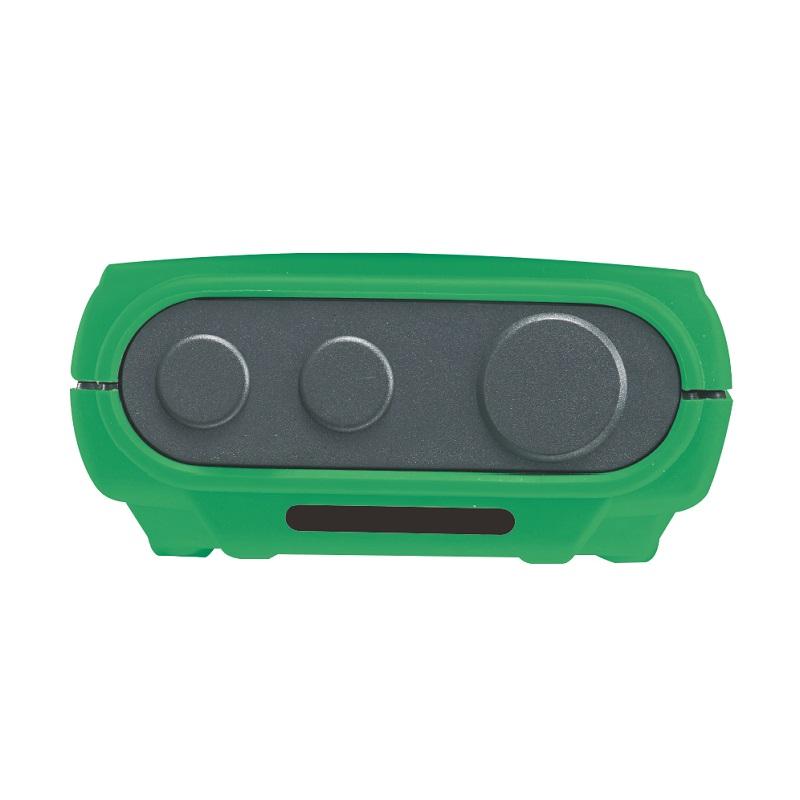

MS7221 - Voltage/mA Calibrator
MASTECH MS7221 Volt / mA Calibrator is a source and measurement tool. This calibrator can be used in measurement output 0 to 24 mA DC current loop, and 0 to 10V DC voltage. But the calibrator cannot be used to measurement and source simultaneously.
MS7221 Voltage/mA Calibrator Features
• Storage Temperature -40°C~60°C
• Operating Temperature -10°C~55°C
• Operating Altitude 3000 meters maximum
• Temperature coefficient: ±0.005% of range per °C for thetemperature range -10~18°C and 28~55°C
• Humidity: 95% (10°C to 30°C) / 75% (30°C to 40°C) / 45% (40°C to 50°C) / 35% (50°C to 55°C)
• Vibration: Random 2G, 5Hz~500Hz
• Shock: 1 Meter drop test
• Low Batter Display
• Auto Power Off
MS7221 Voltage/mA Calibrator General Specifications
• Power Supply: 1 x 9V 6LR61 Battery
• Product Size: 190mm x 89mm x 42mm / 7.5" x 3.5" x 1.7"
• Product Weight: 350g/0.77lb
• Certificate: CE / ETL / RoHS
MS7221 Voltage/mA Calibrator Specifications
