High Voltage Insulation Tester
-
Price
Price on request ≥1piece
-
Model Number
MS5202 -
Data Sheet
-
Package
Original packaging -
Specs
MS5202 -
Quantity
- +Send Inquiry
Product Description

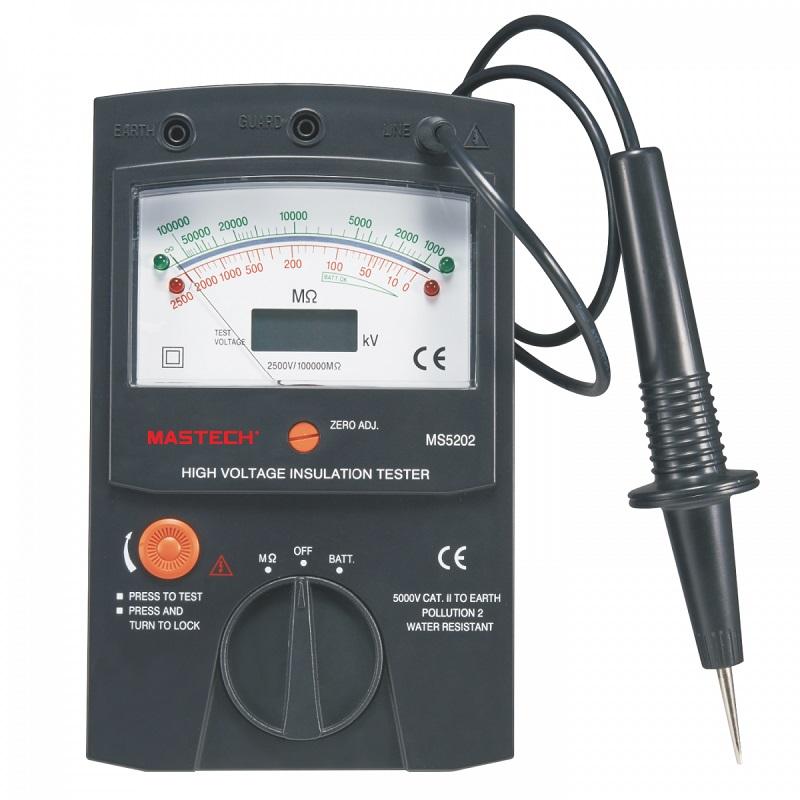

MS5202 - High Voltage Insulation Tester
This meter is a portable professional measuring instrument, which can be used in the test of high voltage insulated for the maintenance and service of the industry equipment, such as the cables, transformers, generators, switch, etc.This meter has of auto range, the indicator with a dual scales point needle, In the measuring range between 0 to 100GΩ, the meter can auto-change the high or low range according to the value of the resistance. The flash of LED will indicate the user to get the reading from the scale line with the same color.
MS5202 High Voltage Insulation Tester Features
• Inner Battery Testing
• Low Battery Display
• Constant Measuring Lock
MS5202 High Voltage Insulation Tester General Specifications
• Power Supply: 8 x 1.5V AA Batteries / 1 x 9V 6F22 Battery
• Product Size: 225mm x 138mm x 81mm / 8.86" x 5.3" x 3.19"
• Product Weight: 1200g/2.75lb
• Certificate: RoHS
• Safety Rating: CAT II 1000V
MS5202 High Voltage Insulation Tester Electrical Specifications
Circumstance Temperature: 23±5°C
Relative Humidity: < 70%
This meter is a portable professional measuring instrument, which can be used in the test of high voltage insulated for the maintenance and service of the industry equipment, such as the cables, transformers, generators, switch, etc.This meter has of auto range, the indicator with a dual scales point needle, In the measuring range between 0 to 100GΩ, the meter can auto-change the high or low range according to the value of the resistance. The flash of LED will indicate the user to get the reading from the scale line with the same color.
MS5202 High Voltage Insulation Tester Features
• Inner Battery Testing
• Low Battery Display
• Constant Measuring Lock
MS5202 High Voltage Insulation Tester General Specifications
• Power Supply: 8 x 1.5V AA Batteries / 1 x 9V 6F22 Battery
• Product Size: 225mm x 138mm x 81mm / 8.86" x 5.3" x 3.19"
• Product Weight: 1200g/2.75lb
• Certificate: RoHS
• Safety Rating: CAT II 1000V
MS5202 High Voltage Insulation Tester Electrical Specifications
Circumstance Temperature: 23±5°C
Relative Humidity: < 70%
|
Measuring voltage |
DC Voltage |
|||
|
Range |
0-2000 MΩ / 1000-100000 MΩ (Auto-range) |
|||
|
Accuracy |
Insulated resistance |
0-100 MΩ |
±3.0 % of arc |
Surroundings' temperature: 23 ± 5°C Relative humidity: < 70 % |
|
100-50000 MΩ |
±2.5 % of arc |
|||
|
50000-100000MΩ |
±3.0 % of arc |
|||
| 0-100 MΩ |
±6.0 % of arc |
Surroundings' temperature: 0 ~ +40°C Relative humidity: < 85 % |
||
|
100-50000 MΩ |
±5.0 % of arc |
|||
|
50000-100000 MΩ |
±6.0 % of arc |
|||
|
Output voltage |
2500V ± 10 % |
100 - 100000 MΩ |
||
|
Insulated resistance |
1000 MΩ max. / 1000V |
Between the circuit and the case |
||
|
Voltage-resistant |
5000V AC per minute |
Between the circuit and the case |
||
