High Precision PCB Laser Drilling Machine (Asida-Jg21)

Model Number: JG21
Country of Origin: China
Brand Name: ASIDA
Minimum Order:1 set
Price/Payment: Negotiation
Production Capacity: 100 sets/year sets
Click here to send inquiry
High Precision PCB Laser Drilling Machine (Asida-Jg21)

Product Specifications/Features


    The picture of Machine


    Product Description


    1.Usage of UV Laser Drilling Machine(JG21)
    The machine is used in drilling through -holes,blind hoes of FPC and cutting the CVL/FPC/RF.
    2.Features of of UV Laser Drilling Machine(JG21)
    1. Adopting the technologies of  linear motor module,and high-resolution grating, closed loop servo control,optical positioning
    Servo control,Sizing Compensate and Optical positioning technologies.
    2. High quality:With good roundness,clean hole wall,small differences between up and down hole diameter.
    3. Highly intelligent,efficient:Auto focus,auto-correcting,auto-positioning,auto feeding and blanking with RTR.
    4.Customize:Optional RTR, and support maximum  500mm wide copper processing;customize a variety of hardware and software functions.

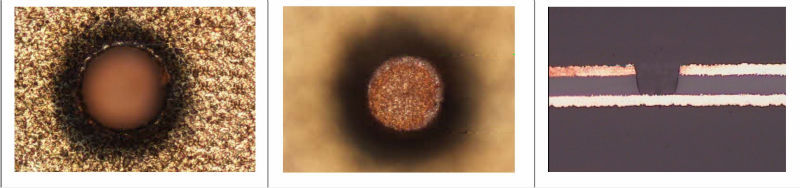

    3.Drilling Samples of of UV Laser Drilling Machine(JG21)

    4.Specifications of of UV Laser Drilling Machine(JG21)

    Item  Specification
     MODEL JG21
    Laser Source UV,355nm
    All-solid-state UV laser cutting device, wavelength 355nm
    Laser Power 10W
    Laser Frequency 5-250KHz
    Maximum Processing Size 650mm×560 mm(25.6″×22″)
    Platform Maximum Operating Speed 60m/min
    Platform Maximum Positioning Accuracy ±2µm
    Platform Maximum Repeat Positioning Accuracy ±1µm
    System  ±20µm
     Minimum hole Aperture 25µm(vias),75µm(Blind hole)
     Max. Hit Rate 11000vias/Min
     File Format Gerber,DXF
    Power AC 220V/50HZ/2.5KW;AC 380V50HZ/5.5KW
     Vacuuming Requirements 516m3/h
    Overall Dimensions 1610x1660x1550mm
    Weight 2900kg
    Environmental Temperature 20°±2°
    Environmental Humidity <60%RH   no dew
    Ground Amplitude <5µm
    Ground Pressure >1100kgf/m²
