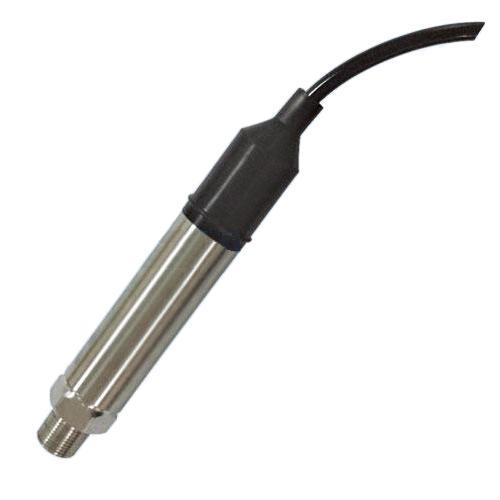

Wild Ultra-low Temperature Protection Type Pressure Transmitter
-
Price
Price on request ≥1piece
-
Model Number
JYB-KO-YW -
Data Sheet
-
Package
Original packaging -
Specs
JYB-KO-YW -
Quantity
- +Send Inquiry
Find Similar Products
-
Gage Pressure Transmitters 0~160MPa, -40~80℃
Model Number：MIDA-SG-13
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-160MPa
Model Number：MIDA-SG-12-11-H
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-1.6MPa
Model Number：MIDA-SG-12-06-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-40MPa
Model Number：MIDA-SG-12-081-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-60MPa
Model Number：MIDA-SG-12-082-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-160MPa
Model Number：MIDA-SG-12-12-H
MOQ：1
Product Description
JYB-KO-YW Pressure Transmitter Characteristic
• The titanium/silicon - sapphire or import diffusion silicon core,is suitable for precision measurement of different medium and different temperature stress
• Whole stainless steel laser welding, excellent anticorrosion and shock resistance
• Military grade device, the linear temperature compensation, temperature range is from - 40 degree to 125 degree
• Overload shock resistance and strong interference resistance ability
• Prevent the surge voltage, reverse polarity over-voltage and over-current protection
• Long working life and high stability
• IP grade is 68
JYB-KO-YW Pressure Transmitter Use
• Low temperature industrial process pressure control
• Low temperature scientific experiments, cooling tank, low temperature storage tank and propellant low temperature pressure measurement
• Bad conditions such as water conservancy, hydropower, constant pressure water supply, chemical industry with relatively high waterproof performance requirements
• Urban pipeline, oil pipeline, and building automation pressure acquisition
• Navigation, and shipbuilding industry
• Food, medicine, brewing, latex, aviation field
JYB-KO-YW Pressure Transmitter Parameters
• The titanium/silicon - sapphire or import diffusion silicon core,is suitable for precision measurement of different medium and different temperature stress
• Whole stainless steel laser welding, excellent anticorrosion and shock resistance
• Military grade device, the linear temperature compensation, temperature range is from - 40 degree to 125 degree
• Overload shock resistance and strong interference resistance ability
• Prevent the surge voltage, reverse polarity over-voltage and over-current protection
• Long working life and high stability
• IP grade is 68
JYB-KO-YW Pressure Transmitter Use
• Low temperature industrial process pressure control
• Low temperature scientific experiments, cooling tank, low temperature storage tank and propellant low temperature pressure measurement
• Bad conditions such as water conservancy, hydropower, constant pressure water supply, chemical industry with relatively high waterproof performance requirements
• Urban pipeline, oil pipeline, and building automation pressure acquisition
• Navigation, and shipbuilding industry
• Food, medicine, brewing, latex, aviation field
JYB-KO-YW Pressure Transmitter Parameters
| Measuring range | any range within 0～100MPa, 5kPa is the smallest range |
| Power supply | DC 24V (12V～32V) |
| Load capacity | current mode ≤500Ω (DC24V) |
| voltage mode ≥3kΩ | |
| Accuracy class | grade 0.2 (range from 70kPa to 5MPa ) |
| grade 0.5 (range from 5kPa to 70kPa; 5 MPa to 100 MPa) | |
| Medium temperature | -40°C～125°C |
| Environment temperature | -20°C～85°C |
| Response time | ≤ 50ms |
| Repeatability | ± 0.2％F.S |
| long-term stability | ± 0.5％F.S/y |
| Nonlinear | ± 0.2％F.S |
| Over load pressure | two times of range |
| Electrical connection | cable connection |
| Process connection | M20 x 1.5 and others |
| The external parts material | Ordinary stainless steel/316stainless steel |
| IP grade | IP 68 |
