Wet Compressed Air Flow Meters

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    VPFlowScope DP

  • Data Sheet

  • Package

    Original packaging

  • Specs

    VPFlowScope DP

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

VPFlowScope DP Compressed Air Flow Meters Description

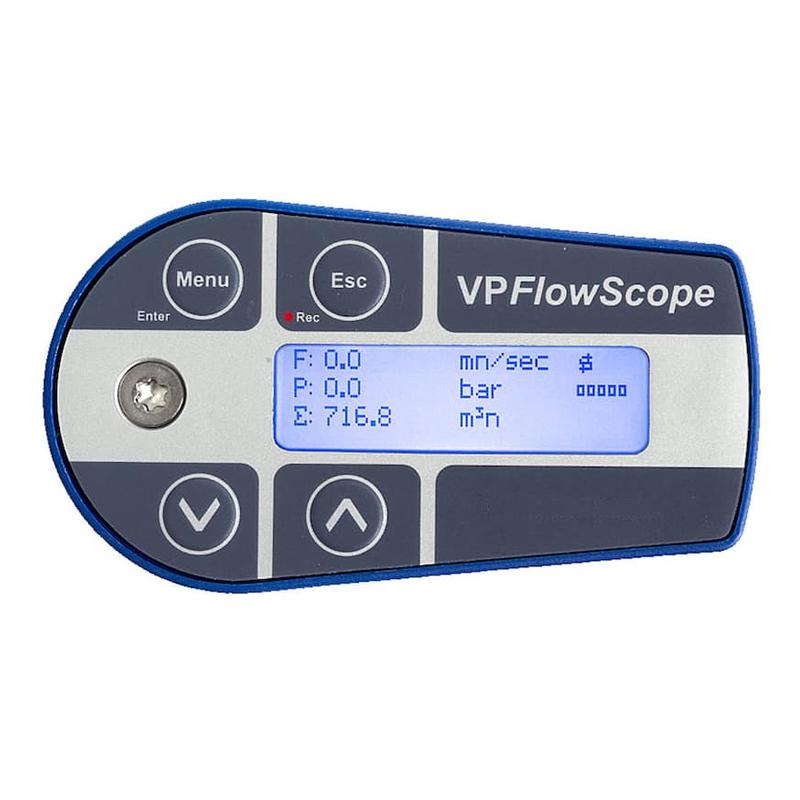

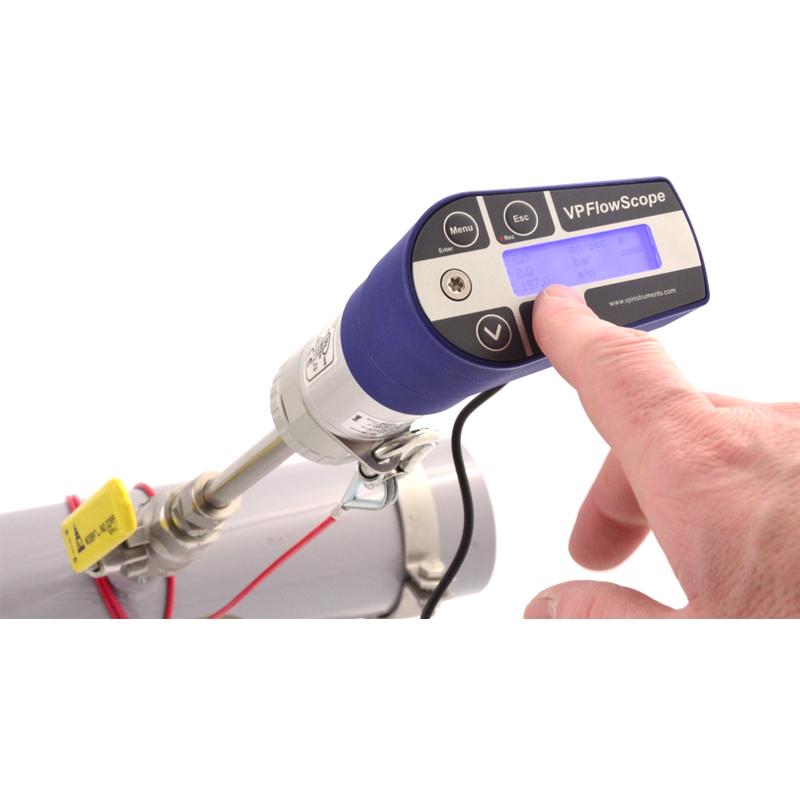

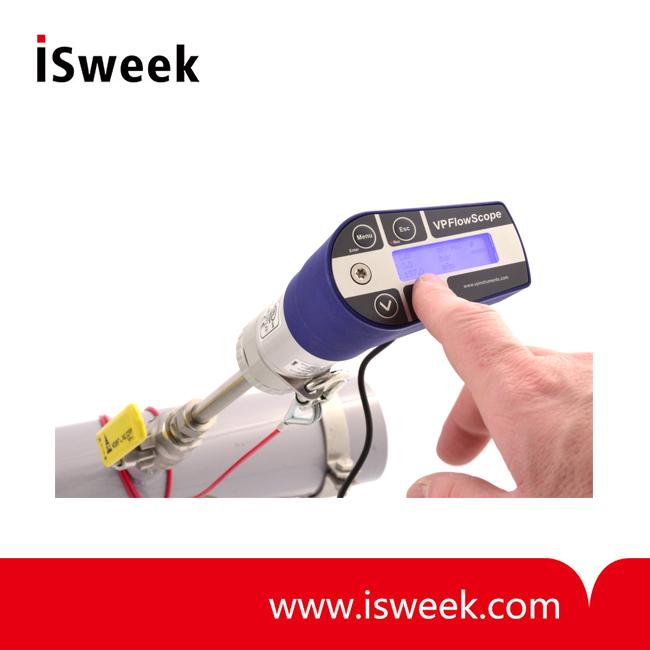

The VPFlowScope DP measures mass flow, temperature and pressure simultaneously and is optimized for wet compressed air measurements. The patented design has a bright blue LCD display which provides real-time information that, in combination with the built-in data logger, enables you to make recordings for certain periods of time. In turn, you can use our VPStudio software to process this data and print reports for real-time measurements.

VPFlowScope DP Compressed Air Flow Meters Features and benefits
• For wet compressed air
• Three sensors in one instrument
• Standard Modbus and 4 … 20 mA
• Bi-directional

VPFlowScope DP Compressed Air Flow Meters Applications
• Air audits
• Compressor efficiency monitoring
• Air treatment equipment (drier/filter) monitoring

VPFlowScope DP Compressed Air Flow Meters Specifications
Flow measurement
(minimum detection level and max flow rate shown)
Flow range
 20...200 mn/sec
 65…650 sfps
Accuracy
 2% of reading under calibration conditions
Recommended pipe diameter: 50mm | 2 inch and up
Reference conditions
 0°C, 1013.25 mbar - DIN1343
 32°F, 14.65 psi
Gas temperature
 -40....150°C
 -40..302°F Icing should be avoided
Gases
 Compressed air, non aggressive gasses and non combustible
gasses, 95% non condensing gases



Pressure sensor
Range
 0...16 bar gauge
 0…250 psi gauge
Accuracy
 +/- 1.5% FSS (0...60°C)
 +/- 1.5% FSS (32..140°F)



Temperature sensor
Range
 -40....150°C
 -40…302°F
Accuracy
 +/- 1°C



Display
Technology
 Liquid crystal
Back light
 Blue with auto power save
Memory
 2.000.000 point memory



Mechanical
Probe length
 400 mm
 15.7 inch
Probe diameter
 12.7 mm
 0.5 inch
Process connection
 Compression fittings, 0.5 inch, NPT thread
IP grade
 IP52 when mated to display module
IP63 when mated to connector cap
Wetted materials
 Alu, SS316, epoxy
Ambient temperature
 0..60°C
 32 .. 140°F
Ambient humidity
 10 - 95%. Avoid condensation at all times



Inputs and outputs
Analog
 4..20mA or pulse, selectable via installation software
Serial IO
 Modbus RTU
Supply
 12..24 VDC +-10% CLASS 2 (UL)
Power consumption
 150mA at 24VDC

VPFlowScope DP Compressed Air Flow Meters Order information
The VPFlowScope DP is available in 1 length (400 mm) only. You can choose some options:
Order Code
 Flow range
 Option
 Length
 Option
 Display
VPS.R200.P4DP
 20 to 200 mn/sec
 P400
 400 mm length
 D0
 No display, No connector cap




D10
 Display




D11
 Display + 2M point logger




D2
 Connector cap
