Product Description
Water Temperature Sensor Overview

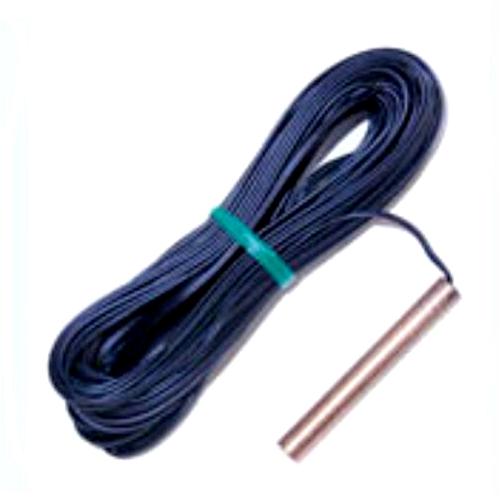

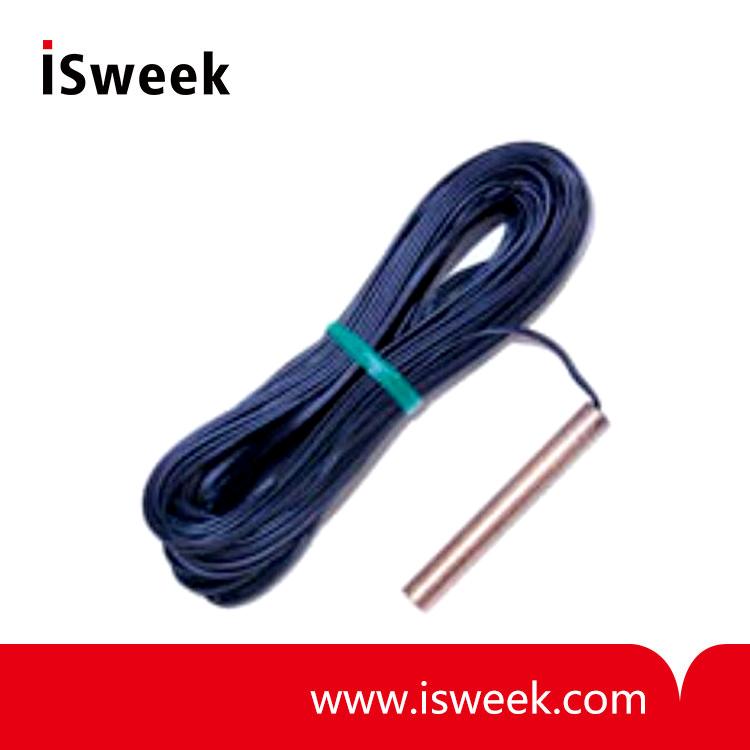

The Maximum Water Temperature Sensor utilizes a precision thermistor that has been potted in a solid bronze rod, bored to accept the thermistor in its very end, along with potted wiring. The bronze rod measures 0.38" O.D. x 3.00" L.
Water sensor weather instrument is intended for boats, pools and hot tubs.
The precision thermistor is a solid state device which changes its resistance inversely proportional with temperature from 150,000 Ohms at the low end to 1,500 Ohms at the high end. Interchangeability of thermistors is +/-0.2ºC; time constant 10 seconds.
Ships complete with 60' of 22 AWG, 2-wire, UV protected cable.
Water Temperature Sensor Specifications
Dimensions: 3.00” overall length; 0.38" O.D.
Weight: 1.15 oz. (excluding cable)
Housing: Solid bronze rod, bored to accept thermistor in its very end and potted wiring.
Function: Temperature sensing element is a precision thermistor, a solid state device which changes its resistance inversely proportional with temperature from 150,000 Ohms at low end to 1,500 Ohms at high end.
Interchangeability: ± 0.2°C between thermistors; time constant 10 sec.
The Maximum Water Temperature Sensor utilizes a precision thermistor that has been potted in a solid bronze rod, bored to accept the thermistor in its very end, along with potted wiring. The bronze rod measures 0.38" O.D. x 3.00" L.
Water sensor weather instrument is intended for boats, pools and hot tubs.
The precision thermistor is a solid state device which changes its resistance inversely proportional with temperature from 150,000 Ohms at the low end to 1,500 Ohms at the high end. Interchangeability of thermistors is +/-0.2ºC; time constant 10 seconds.
Ships complete with 60' of 22 AWG, 2-wire, UV protected cable.
Water Temperature Sensor Specifications
Dimensions: 3.00” overall length; 0.38" O.D.
Weight: 1.15 oz. (excluding cable)
Housing: Solid bronze rod, bored to accept thermistor in its very end and potted wiring.
Function: Temperature sensing element is a precision thermistor, a solid state device which changes its resistance inversely proportional with temperature from 150,000 Ohms at low end to 1,500 Ohms at high end.
Interchangeability: ± 0.2°C between thermistors; time constant 10 sec.
