Product Description

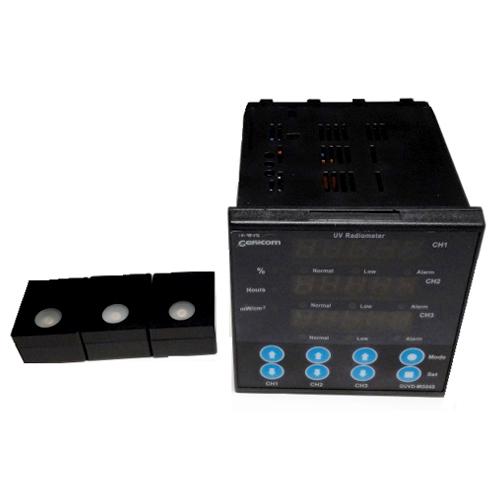

GUVx-T1xGS4-LA6 UV Radiometer 4 Description
 UV Radiometer 4 is 3 Channel indicator. There are 3 type display, and 2 type output (Relay and 4-20mA).
 3 type display is the absolute power, relative power, and accumulative time.
 Adjustable output voltage (Sensor probe)

GUVx-T1xGS4-LA6 UV Radiometer 4 Applications
 UV Curing

GUVx-T1xGS4-LA6 UV Radiometer 4 Constitution
 Display, Sensor Probe 3 ea, Connection Cable 3 ea (5 m)

GUVx-T1xGS4-LA6 UV Radiometer 4 Sensor Probe Dimensions

Size (W×L×H, mm3)
 Window (mm)
 Weight (g)
 Case Material
 Cable Length (m)
36 x 30 x 19 12 60 AL-60 5


GUVx-T1xGS4-LA6 UV Radiometer 4 Dimensions

Size (W×L×H, mm3)
 Window (mm)
 Weight (g)
 Case Material
 Cable Length (m)
96 x 96 x 111 - 410 ABS -
* Panel Cutting Size : 92 × 92 mm2 (Tolerance : -0, + 0.5mm)


GUVx-T1xGS4-LA6 UV Radiometer 4 Absolute Maximum Ratings

Parameter
 Value
 Unit
 Remark
Min.
 Typ.
 Max.
Operating Temperature
 -30
85
 °C
 Sensor Probe
0
50 °C
 Display
Working humidy
 35
85
 %RH
Power Supply
 200
240
 VAC
 50/60 ㎐


GUVx-T1xGS4-LA6 UV Radiometer 4 Electro-Optical Characteristics (at 25°C)

Parameter
 Value
 Unit
 Remark
Min.
 Typ.
 Max.
Detection Power Range
 0
100 mW/cm2
Detection Range
 GUVV-T10GS4-LA6
 230
395 nm 10% of Max
GUVB-T11GS4-LA6
 220
320 nm
GUVC-T10GS4-LA6
 220
280 nm
GVBL-T12GS4-LA6
 330
445 nm

GUVx-T1xGS4-LA6 UV Radiometer 4 Function
 1. Display : Relative Power (%), Accumulative Time (Hours), and Absolute Power (mW/cm2)
                   3 Color LED : Green LED (Over C-03), Yellow LED(C-04 ~ C-03), Red LED (Under C-04)
 2. Output : DC Current (4-20mA, 300 Ω max load), Relay (NC/NO, 250VAC 3A/30VDC 3A)
