UV Radiometer 4

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    GUVC-T11GS4-3LW5.0

  • Data Sheet

  • Package

    Original packaging

  • Specs

    GUVC-T11GS4-3LW5.0

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

GUVC-T11GS4-3LW5.0 UV Radiometer 4 Description
 UV Radiometer 4 is 3 Channel indicator. There are 3 type display, and 2 type output (Relay and 4-20 mA).
 3 type display is the Relative Power (%), Accumulative Time (Hours), and Absolute Power (mW/cm2)

GUVC-T11GS4-3LW5.0 UV Radiometer 4 Applications
 UV Purification (Water)
 Water treatment

GUVC-T11GS4-3LW5.0 UV Radiometer 4 Constitution

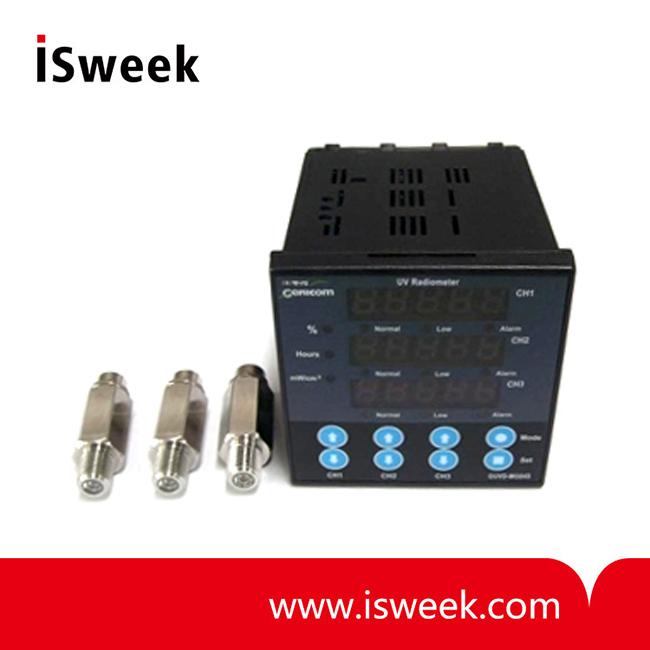

 Display, Sensor Probe 3 ea, Connection Cable 3 ea (5 m)


GUVC-T11GS4-3LW5.0 UV Radiometer 4 Sensor Probe Dimensions

Thread/Length for Mounting
 Diameter (mm)
 Window (mn)
 Wrench Size (mm)
 Length (mm)
 Weight (g)
 Case Material
PT1/4" / 12 mm 21 7 19 63 67 STS 316-L

* Panel Cutting Size : 92 × 92 mm2 (Tolerance : -0, + 0.5 mm )


GUVC-T11GS4-3LW5.0 UV Radiometer 4 Absolute Maximum Ratings

Parameter
 Value
 Unit
 Remark
Min.
 Typ.
 Max.
Operating Temperature
 -30
85
 °C
 Sensor Probe
0
50 °C
 Display
Working humidy
 35
85
 %RH
Power Supply
 200
240
 VAC
 50/60 ㎐

* Connector : IP67, Sensor Probe : 10 bar


GUVC-T11GS4-3LW5.0 UV Radiometer 4 Electro-Optical Characteristics (at 25°C)

Parameter
 Value
 Unit
 Remark
Min.
 Typ.
 Max.
Detection Wavelength Range
 220
280 nm
Detection Power Range
200.00 mW/cm2


GUVC-T11GS4-3LW5.0 UV Radiometer 4 Function

 1. Display : Relative Power (%), Accumulative Time (Hours), and Absolute Power (mW/cm2)
                  3 Color LED : Green LED (Over C-03), Yellow LED(C-04 ~ C-03), Red LED (Under C-04)
 2. Output : DC Current (4-20 mA, 300 Ω max load), Relay (NC/NO, 250VAC 3A/30VDC 3A)
