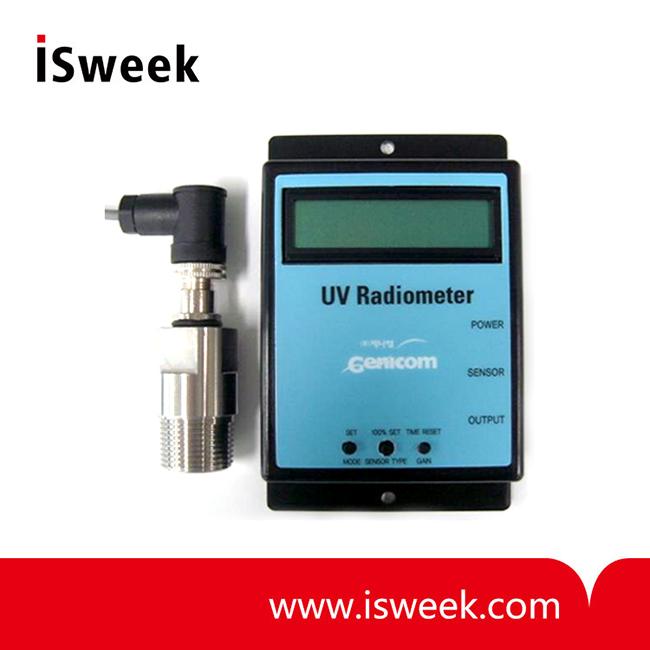

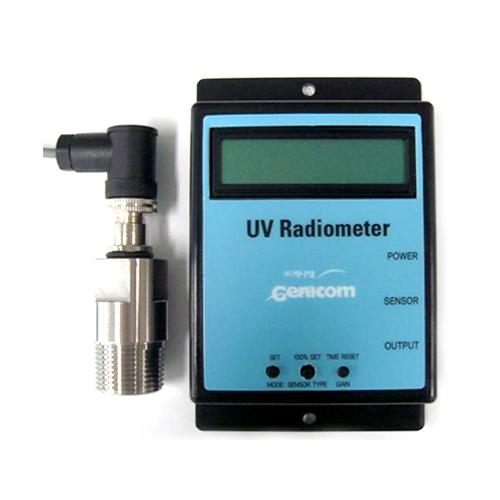

UV Radiometer 1.0

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    GUVx-T1xGS-3LW10

  • Data Sheet

  • Package

    Original packaging

  • Specs

    GUVx-T1xGS-3LW10

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

GUVx-T1xGS-3LW10 UV Radiometer 1.0 Description
 It inform the UV power of UV source through the LCD using UV Sensor. You can choose the sensor part by your application.

GUVx-T1xGS-3LW10 UV Radiometer 1.0 Applications
 UV Purification
 Water treatment

GUVx-T1xGS-3LW10 UV Radiometer 1.0 Constitution
 Display, Adapter, Sensor Probe, Connection Cable, Output Line

GUVx-T1xGS-3LW10 UV Radiometer 1.0 Case dimensions

Thread/Length for Mounting
 Diameter (mm)
 Window (mm)
 Wrench Size(mm)
 Length (mm)
 Weight (g)
 Connection Cable(m)
 Body (stainless steel)
PT3/4 "/16 mm 30 7 26 62 200 5 316-L ( 1.4404 )

Information of UV Radiometer GUVx-T1xGS-3LW10

Parameter
 Value
 Unit
 Remark
Min.
 Typ.
 Max.
Operating Temperature
 -15
65 °C
Power Consumption
0.13
A
Detection Range
 GUVV-T11GS-3LW10
 230
395
 nm
 10% of Max
GUVB-T12GS-3LW10
 220
320 nm
 10% of Max
GUVC-T11GS-3LW10
 220
280 nm
 10% of Max


Connection
1. Main Power
 - DC 9V 300 mA (AC220V 50/60 Hz Adapter)
2. Detection Power Range
 - Standard : Max. 100 mW/cm2
 - Option : Max. 10 mW/cm2 , Max. 1000 mW/cm2
3. Output
 It depends on UV power of UV source.
 1) Voltage : 0 ~ 5 V, 0.1A Max.
 2) Current : 4 ~ 20 mA, 5V
