• UV-C Sensor Probe
  • UV-C Sensor Probe
Mouse over image to zoom

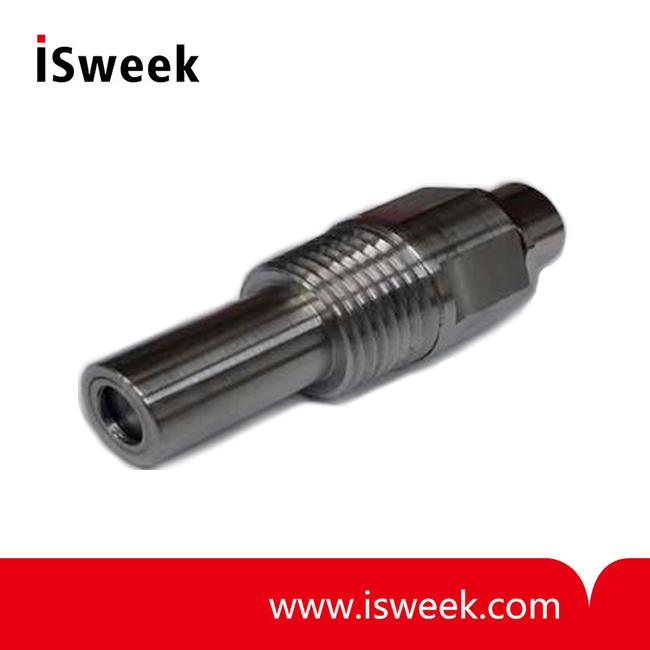

UV-C Sensor Probe

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    GUVC-T11GC-I4LW8.1

  • Data Sheet

  • Package

    Original packaging

  • Specs

    GUVC-T11GC-I4LW8.1

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

GUVC-T11GC-I4LW8.1 UV Sensor Probe Feature
- Single Supply Voltage, 3 wire 4-20 mA Current Output
- Water Environment (10 bar)

GUVC-T11GC-I4LW8.1 UV Sensor Probe Application
- Sterilization Lamp Monitoring
- Pure UV-C Monitoring


GUVC-T11GC-I4LW8.1 UV Sensor Probe Case dimensions

Thread/Length for Mounting
 Diameter (mm)
  Window (mm)
 Wrench (mm)
 Length (mm)
 Weight (g)
 Body (stainless steel)
NPT1/2" /12 mm 14 10
 20 67 72
 316-L ( 1.4404 )

GUVC-T11GC-I4LW8.1 UV Sensor Probe Absolute Maximum Ratings
Parameter
 Symbol
 Value
 Unit
 Remark
Min.
 Typ.
 Max.
Storage Temperature
 Tst
 -40
90 °C
 Operating Temperature
 Top
 -30
85 °C


GUVC-T11GC-I4LW8.1 UV Sensor Probe Electro-Optical Characteristics (at 25°C)

Parameter
 Symbol
 Value
 Unit
 Remark
Min.
 Typ.
 Max.
Supply Voltage
 Vcc
 9
24 VDC
Offset Current
 Ioff
4
mA
Spectral Detection Range
 λ
 220
280 nm 10% of Max
Output Current
 Iout
 4
20 mA
Detection Power Range
 P 0
100 mW/cm2 Vcc = 24 V
Response Time
 T
10
ms

* Maximum of detection power : 20mW/cm2 (Option), 100mW/cm2 (Standard), 1000 mW/cm2 (Option)
