Product Description
GasTrack

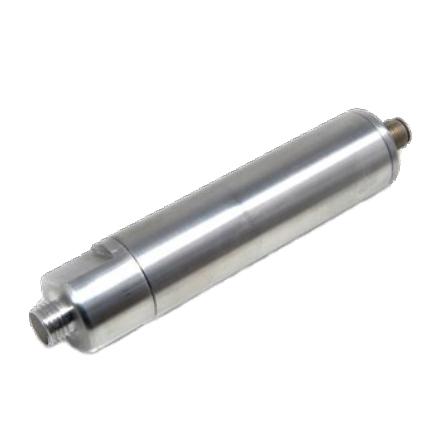

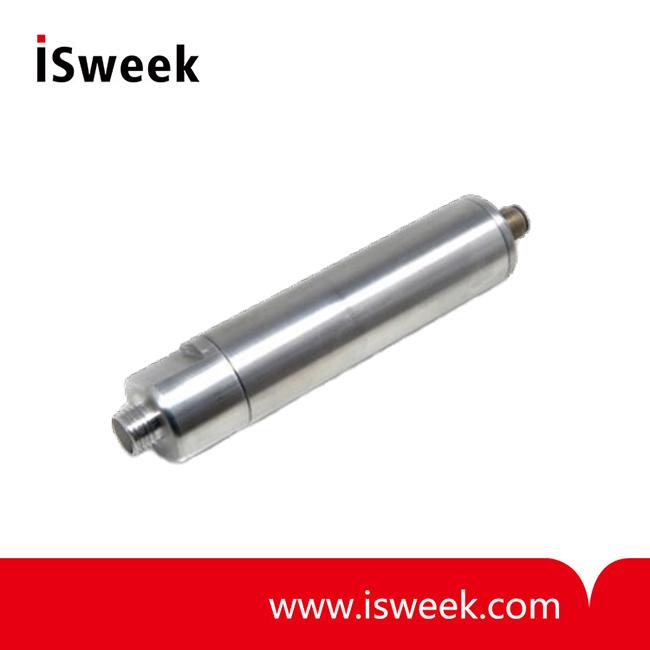

Universal Gas Transmitter (UGT) Probe
Universal Gas Transmitter (UGT) Probes a robust single gas monitor. With its tough stainless steel housing, it is an ideal solution for measuring process gases.
Universal Gas Transmitter (UGT) Probe FEATURES
• The UGT probe provides customers with a single gas monitoring solution
• Compact, lightweight design
• Robust stainless steel enclosure
• With its modular design, the probe is fully configurable at time of ordering; select the sensor, output and connector requirements to suit your needs
Universal Gas Transmitter (UGT) Probe APPLICATIONS
Designed for monitoring gas concentration in pipes and enclosed spaces
Universal Gas Transmitter (UGT) Probe TECHNICAL SPECIFICATIONS
Universal Gas Transmitter (UGT) Probe SENSOR OPTIONS
Universal Gas Transmitter (UGT) Probe
Universal Gas Transmitter (UGT) Probes a robust single gas monitor. With its tough stainless steel housing, it is an ideal solution for measuring process gases.
Universal Gas Transmitter (UGT) Probe FEATURES
• The UGT probe provides customers with a single gas monitoring solution
• Compact, lightweight design
• Robust stainless steel enclosure
• With its modular design, the probe is fully configurable at time of ordering; select the sensor, output and connector requirements to suit your needs
Universal Gas Transmitter (UGT) Probe APPLICATIONS
Designed for monitoring gas concentration in pipes and enclosed spaces
Universal Gas Transmitter (UGT) Probe TECHNICAL SPECIFICATIONS
|
Construction |
Stainless steel enclosure |
|
|
Seal rating |
IP65 |
|
|
Supply voltage |
24V DC ±10% |
|
|
Current consumption |
250mA maximum |
|
|
Options: |
||
|
Sensor |
–one |
O2 or CO2 |
|
Analogue output |
–one |
4 - 20mA; load 500Ω max. or 0 - 10V DC ; load 10kΩ max. |
|
Digital output |
–one |
RS232 or RS485 (Modbus RTU) |
|
Relay output |
SPST normally open |
|
|
Cable port |
8-pin connector x M12 |
|
|
Connector thread |
5/8"–18 UNF |
|
Universal Gas Transmitter (UGT) Probe SENSOR OPTIONS
|
LuminOx O2 sensor: |
|
|
Measurement range |
0 - 25% |
|
Accuracy |
1% vol. O2 |
|
Resolution |
0.01% vol. O2 |
|
NDIR CO2 sensor: |
|
|
Measurement range |
0 - 5,000ppm, 0 - 10,000ppm |
|
Accuracy |
±70ppm, ±5% of reading |
|
Resolution |
1ppm |
