Product Description

DP86
Uncompensated with Fitting

DP86U Differential Pressure Sensor Specifications
• 316L SS
• Wet/Wet Differential Low Pressure

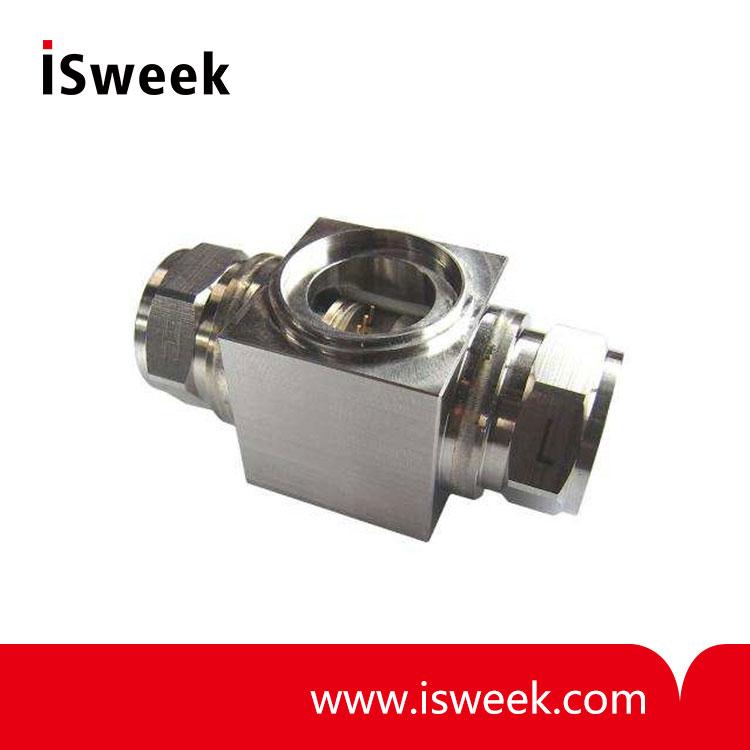

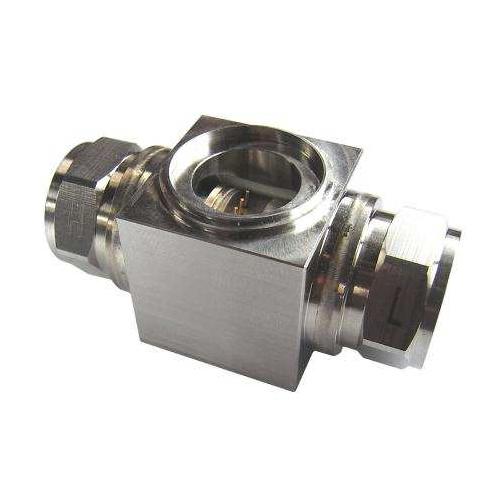

The DP86 uncompensated with fitting differential pressure sensor is a double-sided, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. The DP86 uncompensated with fitting can be designed with up to 8 different threaded process fittings. The sensing package utilizes silicone oil to transfer pressure from the two 316L stainless steel diaphragms to a single sensing element.

The DP86 uncompensated with fitting is designed for high performance, low pressure applications where differential pressure measurement is required. The stainless steel package makes it suitable for use in liquids and corrosive environments.

Please refer to the DP86, non-silicone oil, constant current and constant voltage (fittings and cable design) for more information on different features of the DP86.

DP86U Differential Pressure Sensor Features
• Threaded Process Fittings
• Up to -40°C to +125°C Operating Range
• Up to ±0.1% Pressure Non Linearity
• Solid State Reliability
• Low Pressure

DP86U Differential Pressure Sensor Applications
• Level Controls
• Tank Level Measurement
• OEM Equipment
• Corrosive Fluids and Gas Measurement Systems
• Flow Measurements

DP86U Differential Pressure Sensor Performance Specifications
Supply Current: 1.5mA
Ambient Temperature: 25°C (unless otherwise specified)
PARAMETERS
 001PSI
 005PSI
 ≥015PSI
 UNITS
MIN
 TYP
 MAX
 MIN
 TYP
 MAX
 MIN
 TYP
 MAX
Sensitivity
 9.0
20.0 12.5 19.5 26.5 13.2 20 26.5 mV/V@FS
Zero Pressure Output
 -4.0
8.0 -6.0
8.0 -6.0
8.0 mV/V
Pressure Non Linearity
 -0.30
0.30 -0.20
0.20 -0.10
0.10 %Span
Pressure Hysteresis
 -0.10
0.10 -0.10
0.10 -0.05
0.05 %Span
Input/Output Resistance
 4400
6200 3800 4400 5800 3800 4400 5800 Ω
Temp. Coefficient - Span
 -3300 -2800 -2300 -1650 -1250 -1000 -1450 -1250 -1000 ppm/°C
Temp. Coefficient - Offset
1

1

1
uV/V/°C
Temp. Coefficient - Resistance
 2600 3200 3500 1300 1510 1750 1300 1510 1750 ppm/°C
Thermal Hysteresis - Span
 -0.25
0.25 -0.25
0.25 -0.25
0.25 %Span
Thermal Hysteresis - Offset
 -0.25
0.25 -0.25
0.25 -0.25
0.25 %Span
Line (Common Mode) Pressure

1000

1000

1000 psi
Line Pressure Effect on Zero

4.0

0.8

0.5 %Span/1Kpsi
Pressure Overload

10X

3X

3X Rated
Pressure Burst

12X

4X

4X Rated
Operating Temperature
 -40
+85 -40
+125
 -40
+125
 °C
Storage Temperature -40
+85
 -40
+125
 -40
+125
 °C
Vibration (10~2000Hz)

20

20

20 g
Insulation Resistance (50Vdc)
 50

50

50

MΩ
Output Load Resistance
 5

5

5

MΩ
Supply Voltage
5.0 12.0
5.0 9.5
5 9.5 V
Supply Current

2.0

1.5

1.5 mA
Voltage Breakdown

500

500

500
 Vrms
Endurance (FS @ 25°C)
 1,000,000
 Cycles
Media Compatibility - Pressure Port
 All fluids and gases compatible with 316L Stainless Steel
