Product Description

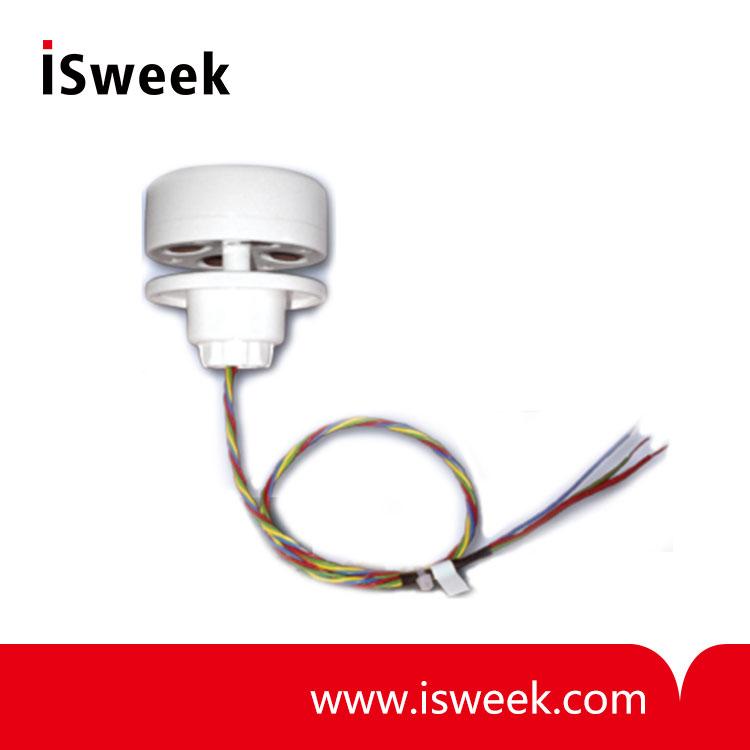

SONIC-ANEMO-MICRO Ultrasonic Wind Speed Sensor Description:
As a result of its very special electronic architecture the SONIC-ANEMO-MICRO shows a very low electrical consumption. It is ideal for remote stations or mobile installation.
SONIC-ANEMO-MICRO is an OEM sensor designed for integration in other original Equipment.
This sensor shows a very low consumption. It operates from 300µA.
SONIC-ANEMO-MICRO is the lowest consumption power solution of all LCJ sensors.
SONIC-ANEMO-MICRO Ultrasonic Wind Speed Sensor Specification:
|
Output data format |
ASCII format, avaibility |
|
Information transmited |
Instant. W. Speed, Instant. W. Angle, avaibility |
|
Output rate |
select. 1 meas. and Tx: every 1,6 or 18 s |
|
Wind module sensitivity |
0.12 m/s |
|
Wind module resolution |
0.05 m/s |
|
Wind module dynamic |
0.12 to 40 m/s |
|
Direction sensitivity |
+/-1.5° |
|
Direction resolution |
1° |
|
Power supply |
3 V to 3.6 V DC |
|
Electrical consumption |
200µA avg |
|
Op. temp. without icing |
-15° C to +50° C |
|
Cable |
50 cm / 4x0.22 mm2 |
|
Connection |
4 wires |
|
Weight of the head |
100 gr |
|
Weight of unit assembly |
N/A |
|
Mounting |
N/A |
Options
These industrial option are "Din" boxes with:
• 1x connection for 24VDC/AC power supply
• 1x connection for CV7-V data
• 1x 12 V connection for CV7-V power supply
• Galvanic isolation betwen power supply and analog outputs
• Galvanic isolation betwen power supply and sensor's power supply
• The sensor input is optocoupled.
420 AC
This option features :
• 1 4-20 mA output loop current for wind speed ranging from 0.25 Kts to 80 Kts and CV7 measurement check.
• 1 4-20 mA output loop current for wind direction ranging from 0 to 359° and CV7 measurement check.
• 2 Dry contacts for wind speed alarm
ANA-AC
This option features 3 outputs 0-10V:
• 0-15m/s
• 0-30m/s or 0-40m/s selectable
• 0-359° wind direction.
