Product Description

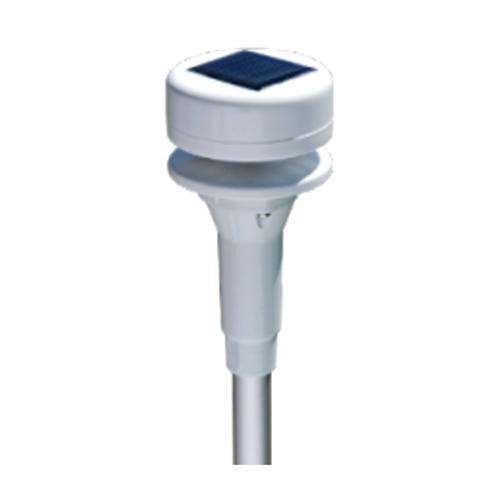

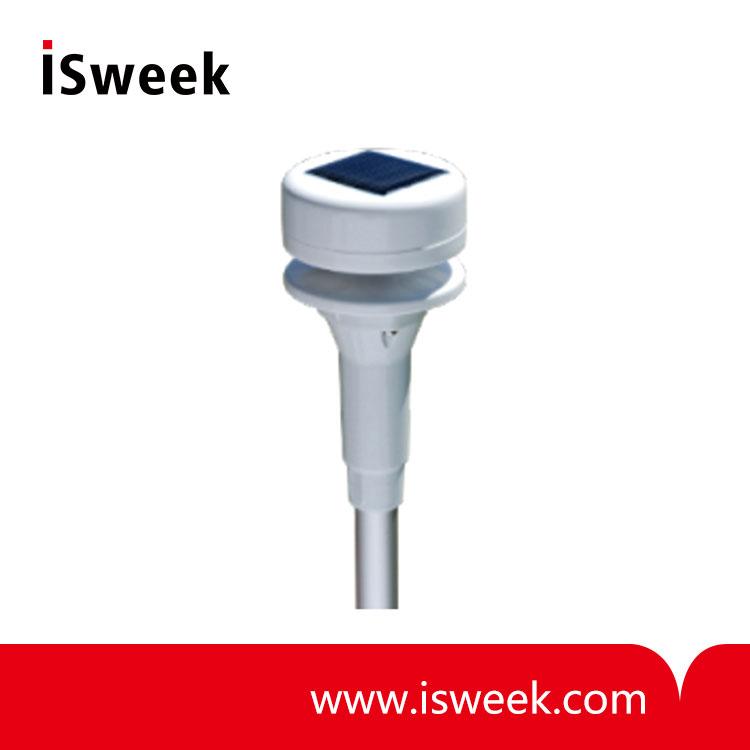

SONIC-ANEMO-DZP Ultrasonic Wind Speed Sensor Description:
SONIC-ANEMO-DZP UltraSonic Anemometer is powered by its own solar panel. It is well suited to remote installations where power consumption matters. This unit connects directly to a pulse or potentiometer input (i.e. on Davis instruments). It is a useful product for professionals, integration to AWS (Autonomous Weather Station), and well-informed users.
SONIC-ANEMO-DZP Ultrasonic Wind Speed Sensor Specification:
|
Output data format |
WA: 25KΩ, 5V max, WS: Pulse open collector 10 mA max |
|
Information transmited |
Instant. W. Speed, Instant. W. Angle |
|
Output rate |
1 measure and update per second |
|
Wind module sensitivity |
0.12 m/s |
|
Wind module resolution |
0.05 m/s |
|
Wind module dynamic |
0.12 to 40 m/s |
|
Direction sensitivity |
+/-1.5° |
|
Direction resolution |
1° (9 bits) |
|
Power supply |
Photovoltaic Panel, Battery LIFEPO4 |
|
Electrical consumption |
n.a. / operates from exposition of 50 W /m2 |
|
Op. temp. without icing |
-15° C to +55° C |
|
Cable |
5 m / 4x0.22 mm2 UV proof |
|
Connection |
RJ11 |
|
Weight of the head |
N/A |
|
Weight of unit assembly |
200 gr with mounting part |
|
Mounting |
Vertical ; 300 aluminium arm, Ø 16 mm |
Options
These industrial option are "Din" boxes with:
• 1x connection for 24VDC/AC power supply
• 1x connection for CV7-V data
• 1x 12 V connection for CV7-V power supply
• Galvanic isolation betwen power supply and analog outputs
• Galvanic isolation betwen power supply and sensor's power supply
• The sensor input is optocoupled.
420 AC
This option features :
• 1 4-20 mA output loop current for wind speed ranging from 0.25 Kts to 80 Kts and CV7 measurement check.
• 1 4-20 mA output loop current for wind direction ranging from 0 to 359° and CV7 measurement check.
• 2 Dry contacts for wind speed alarm
ANA-AC
This option features 3 outputs 0-10V:
• 0-15m/s
• 0-30m/s or 0-40m/s selectable
• 0-359° wind direction.
