Product Description

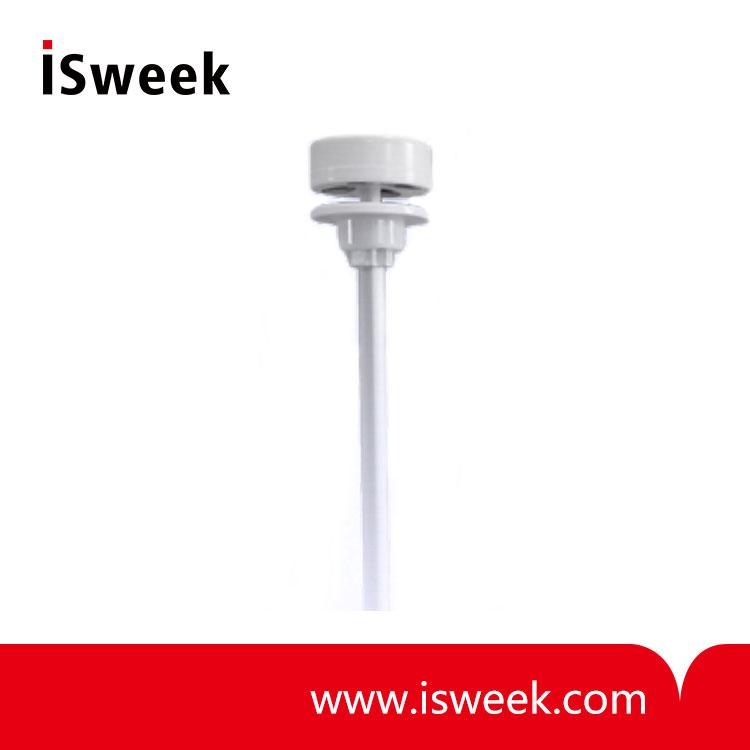

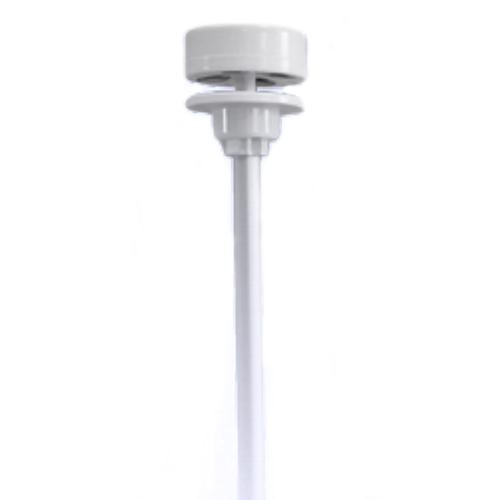

SONIC-ANEMO-DVC Ultrasonic Wind Speed Sensor Description:
As Worldwide Premiere launch, a specific version of the CV7-V which connects directly to the wind sensor input on Davis instruments.This sensor will allow the replacement of mechanical anemometers / wind vanes with no need of anything else but power supply.
It’s an exclusive and useful product for both, professionals and well-informed amateurs.
SONIC-ANEMO-DVC Ultrasonic Wind Speed Sensor Specification:
|
Output data format |
WA: 25KΩ, 5V max; WS: Pulse open collector 10 mA max |
|
Information transmited |
Instant. W. Speed, Instant. W. Angle |
|
Output rate |
2 Hz / 30 Hz measurement |
|
Wind module sensitivity |
0.12 m/s |
|
Wind module resolution |
0.05 m/s (16 bits) |
|
Wind module dynamic |
0.12 to 40 m/s |
|
Direction sensitivity |
+/-1.5° |
|
Direction resolution |
1° (9 bits) |
|
Power supply |
2.7 V to 35 V DC |
|
Electrical consumption |
2.6 mA Avg. @ 12 V |
|
Op. temp. without icing |
-15° C to +55° C |
|
Cable |
5 m / UV proof |
|
Connection |
RJ11, 2 wires Power Supply |
|
Weight of the head |
|
|
Weight of unit assembly |
200 gr with mounting part |
|
Mounting |
Vertical, 300 aluminium arm, Ø 16 mm |
Options
These industrial option are "Din" boxes with:
• 1x connection for 24VDC/AC power supply
• 1x connection for CV7-V data
• 1x 12 V connection for CV7-V power supply
• Galvanic isolation betwen power supply and analog outputs
• Galvanic isolation betwen power supply and sensor's power supply
• The sensor input is optocoupled.
420 AC
This option features :
• 1 4-20 mA output loop current for wind speed ranging from 0.25 Kts to 80 Kts and CV7 measurement check.
• 1 4-20 mA output loop current for wind direction ranging from 0 to 359° and CV7 measurement check.
• 2 Dry contacts for wind speed alarm
ANA-AC
This option features 3 outputs 0-10V:
• 0-15m/s
• 0-30m/s or 0-40m/s selectable
• 0-359° wind direction.
