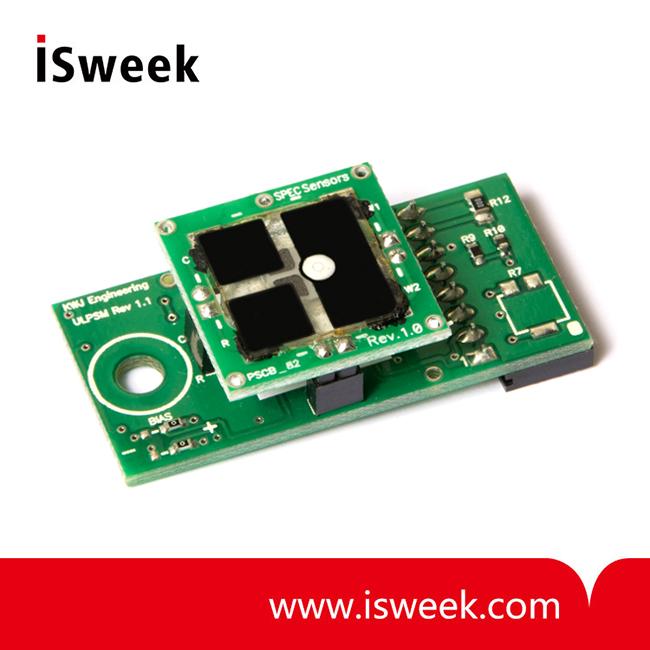

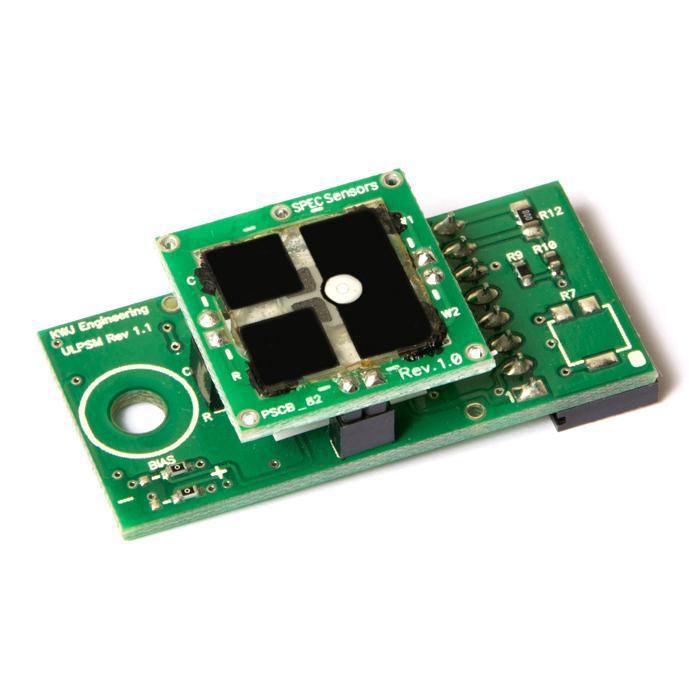

Ultra-Low Power Analog Hydrogen Sulfide Sensor Module
-
Price
Price on request ≥1piece
-
Model Number
ULPSM-H2S 968-003 -
Data Sheet
-
Package
Original packaging -
Specs
ULPSM-H2S 968-003 -
Quantity
- +Send Inquiry
Find Similar Products
-
Hydrogen Sulfide Sensor (H2S Sensor)
Model Number：H2S-A1
MOQ：1
-
Low Consumption Hydrogen Sulfide Sensor H2S Sensor
Model Number：ME4-H2S
MOQ：1
-
Electrochemical Hydrogen Sulfide Sensor H2S Sensor
Model Number：ME3-H2S
MOQ：1
-
15x15 H2S Sensor 50 ppm Package 110-304
Model Number：3SP_H2S_50 C
MOQ：1
-
P-Type Metal Oxide Hydrogen Sulfide Sensor
Model Number：H2S-MFF, H2S-PFF, H2S-AFF
MOQ：1
-
Miniature Size Hydrogen Sulfide Sensor
Model Number：H2S-D4
MOQ：1
Product Description
ULPSM-H2S 968-003 Ultra-Low Power Analog H2S Sensor Module DESCRIPTION
Quickly integrate Hydrogen Sulfide Sensing into your system with very low power consumption and a simple analog sensor signal output.
The ULPSM converts the Hydrogen Sulfide sensor’s linear current signal output to a linear voltage signal, while maintaining the sensor at its ideal biased operation settings.
ULPSM-H2S 968-003 Ultra-Low Power Analog H2S Sensor Module BENEFITS
• 0 to 3 V Analog Signal Output
• Low Power Consumption < 45 µ W
• Fast Response
• On-board Temperature Sensor
• Easy Sensor Replacement
• Standard 8-pin connector
ULPSM-H2S 968-003 Ultra-Low Power Analog H2S Sensor Module APPLICATIONS
• Fixed Industrial Safety Monitoring
• Portable Industrial Safety Monitoring
• Portable Personal Safety Monitor
• Indoor Air Quality Monitoring
• Outdoor Air Quality Monitoring
• Bad Breath/Halitosis Sensing
ULPSM-H2S 968-003 Ultra-Low Power Analog H2S Sensor Module PERFORMANCE CHARACTERISTICS
Quickly integrate Hydrogen Sulfide Sensing into your system with very low power consumption and a simple analog sensor signal output.
The ULPSM converts the Hydrogen Sulfide sensor’s linear current signal output to a linear voltage signal, while maintaining the sensor at its ideal biased operation settings.
ULPSM-H2S 968-003 Ultra-Low Power Analog H2S Sensor Module BENEFITS
• 0 to 3 V Analog Signal Output
• Low Power Consumption < 45 µ W
• Fast Response
• On-board Temperature Sensor
• Easy Sensor Replacement
• Standard 8-pin connector
ULPSM-H2S 968-003 Ultra-Low Power Analog H2S Sensor Module APPLICATIONS
• Fixed Industrial Safety Monitoring
• Portable Industrial Safety Monitoring
• Portable Personal Safety Monitor
• Indoor Air Quality Monitoring
• Outdoor Air Quality Monitoring
• Bad Breath/Halitosis Sensing
ULPSM-H2S 968-003 Ultra-Low Power Analog H2S Sensor Module PERFORMANCE CHARACTERISTICS
|
Measurement Range |
0 to 50 ppm |
|
Lower Detection Limit |
0.3 ppm |
|
Resolution |
0.15 ppm |
|
Accuracy |
< ± 2 % of reading |
|
Response Time T90 |
< 30 seconds |
|
Power-On Stabilization Time |
60 minutes recommended |
