Product Description
PSC-SR54NL and PSC-SR54NV
2-Color Pyrometer Series For Industrial and R&D Applications
PSC-SR54NL/PSC-SR54NV Non-Contact Infrared Pyrometers Description
Two-Color or Ratio Pyrometers measure temperatures from the ratio of radiation signals of two adjacent wavelengths as opposed to measuring the absolute intensity within one wavelength, as with one-color pyrometers. The advantages and benefi ts of using two-color sensors are the following:
• Automatic compensation for viewing though dirty windows, dust and partial smoke between sensor and target.
• Compensation for changes in target emissivity i.e. gray bodies — targets with the same emissivity on both wavelengths.
• Measures smaller target than sensor’s fi eld of view (FOV/Spot Size) i.e. measures weighted peak temperature within FOV.
• Unaffected by moving targets within FOV.
PSC-SR54NL/PSC-SR54NV Non-Contact Infrared Pyrometers Features
• High Accuracy/Repeatability with Self-Contained Stand Alone Operation
• Wide Temperature Ranges from 500° to 3000°C (932° to 5432°F)
• Integrated Red Laser or Video Camera Sighting
• High Resolution Optics Up to FOV 200:1
• Fixed Focus Optics
• Fast Response Time – 5 milliseconds, adjustable
• Simultaneous Analog and Digital Outputs
• 4-20mA and Digital RS-485 Communications
• Durable, Compact Stainless-Steel Housing
• Innovative, Rugged Design Accessories
PSC-SR54NL/PSC-SR54NV Non-Contact Infrared Pyrometers Applications
• Induction Heating
• Steel Industry
• Heat Treating of Metals
• Kilns
• Vacuum Furnaces
• Welding
• Composites
• Sintering
• Nuclear
• Research and Development
Specifications PSC-SR54NL and PSC-SR54NV Non-Contact Infrared Pyrometers
2-Color Pyrometer Series For Industrial and R&D Applications
PSC-SR54NL/PSC-SR54NV Non-Contact Infrared Pyrometers Description
Two-Color or Ratio Pyrometers measure temperatures from the ratio of radiation signals of two adjacent wavelengths as opposed to measuring the absolute intensity within one wavelength, as with one-color pyrometers. The advantages and benefi ts of using two-color sensors are the following:
• Automatic compensation for viewing though dirty windows, dust and partial smoke between sensor and target.
• Compensation for changes in target emissivity i.e. gray bodies — targets with the same emissivity on both wavelengths.
• Measures smaller target than sensor’s fi eld of view (FOV/Spot Size) i.e. measures weighted peak temperature within FOV.
• Unaffected by moving targets within FOV.
PSC-SR54NL/PSC-SR54NV Non-Contact Infrared Pyrometers Features
• High Accuracy/Repeatability with Self-Contained Stand Alone Operation
• Wide Temperature Ranges from 500° to 3000°C (932° to 5432°F)
• Integrated Red Laser or Video Camera Sighting
• High Resolution Optics Up to FOV 200:1
• Fixed Focus Optics
• Fast Response Time – 5 milliseconds, adjustable
• Simultaneous Analog and Digital Outputs
• 4-20mA and Digital RS-485 Communications
• Durable, Compact Stainless-Steel Housing
• Innovative, Rugged Design Accessories
PSC-SR54NL/PSC-SR54NV Non-Contact Infrared Pyrometers Applications
• Induction Heating
• Steel Industry
• Heat Treating of Metals
• Kilns
• Vacuum Furnaces
• Welding
• Composites
• Sintering
• Nuclear
• Research and Development
Specifications PSC-SR54NL and PSC-SR54NV Non-Contact Infrared Pyrometers
|
Temperature Range |
500° to 1200°C |
600° to 1400°C |
700° to 1800°C |
800° to 2500°C |
900° to 3000°C |
|
932° to 2192°F |
1112° to 2552°F |
1292° to 3272°F |
1472° to 4532°F |
1652° to 5432°F |
|
|
Sub Temperature Range |
Adjustable Within Overall Temperature Range, Minimum Span 50°C (122°F) |
||||
|
Field of View Ratio |
50:1 |
100:1 |
200:1 |
200:1 |
200:1 |
|
Accuracy |
0.5% of Measured Value in °C |
||||
|
Reproducibility |
0.1% of Measured Value in °C |
||||
|
Aiming |
PSC-SR54N: Laser, 630…680 nm, Class II, <1 mW PSC-SR54NV: Video Camera, Composite Video Signal NTSC (M), 60Hz or PAL (B), 50Hz |
||||
|
Choice of Optics Types |
650mm, 2000mm, 4000mm |
||||
|
Spectral Range |
0.8µm to 1.1µm |
||||
|
Ratio Correction K |
0.800 to 1.200 |
||||
|
Emissivity |
0.050 to 1.000 |
||||
|
Response Time (t95) |
5 ms (min.) Adjustable up to 100 seconds |
||||
|
NETD |
0.1K |
||||
|
Transmissivity |
50% to 100% |
||||
|
Output |
0/4 mA to 20 mA, Linear, Max. Load 500 Ω (Galvanically Isolated) |
||||
| Interface |
RS-485 (Galvanically Isolated), Half Duplex, Max. 115 kBd, Modbus RTU |
||||
|
Switching Output/Threshold |
1 Opto Relay, R Load Min. 48Ω (Galvanically Isolated) Adjustable Within Temperature Range |
||||
|
Parameters |
Adjustable Via Interface and Software, or at Device using handheld programmer: Ratio Correction, Emissivity, Transmissivity, Response Time, Data Storage Settings, Sub Range of Measurement Output, Switching Thresholds of Switching Output |
||||
|
Power Supply |
24 V DC ± 25%, Residual Ripple 500 mV |
||||
|
Power Consumption |
Max. 1.5W (Without Load at Switching Output) |
||||
|
Operating Temperature |
0° to 70°C (32° to 158°F) |
||||
|
Storage Temperature |
-20° to 70°C (-4° to 158°F) |
||||
|
Weight |
600 grams (1 lb. 5.16 oz.) |
||||
|
Housing |

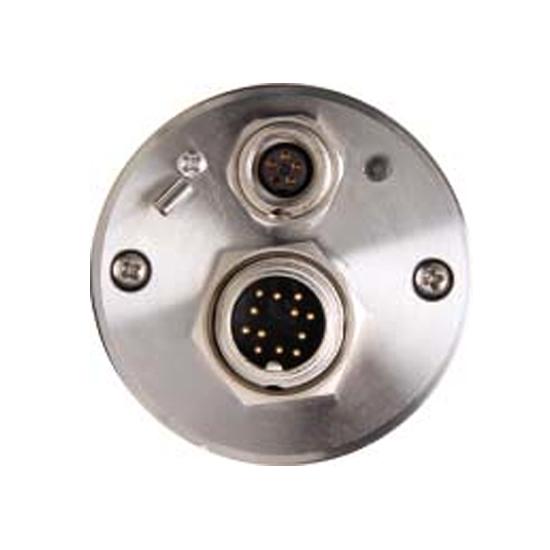

Stainless Steel Cylindrical Housing with Plug Connector 4.1” (105 mm)L x 2” (50mm) OD |
||||
|
Safety Class |
IP65 According to DIN EN 60529 and DIN 40050 |
||||
|
Test Regulation |
EN 55 011: 1998, Limit Class A |
||||
|
CE Symbol |
According to EU Regulations |
||||
|
Standard Equipment |
PSC-SR54N/PSC-SR54NV, Operation Manual, Inspection Sheet. No-cost PSCSpot Software is included with the purchase of an optional RS485 to USB adapter and connection cable that must be ordered separately |
||||
