Toroidal Conductivity Sensor

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    SE 670

  • Data Sheet

  • Package

    Original packaging

  • Specs

    SE 670

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

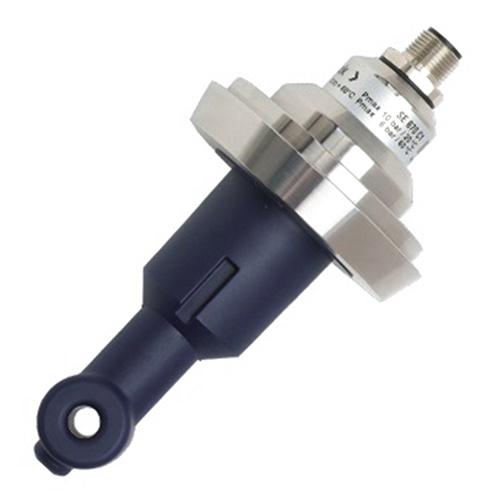

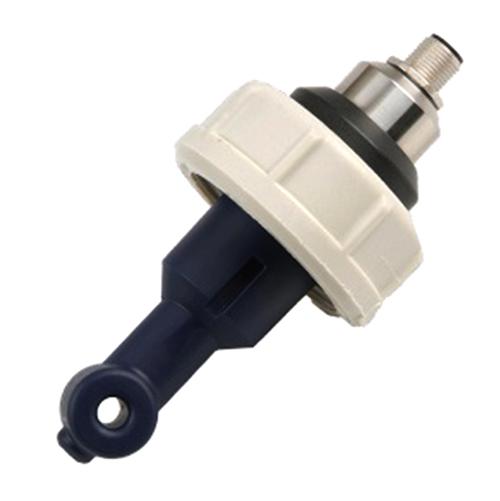

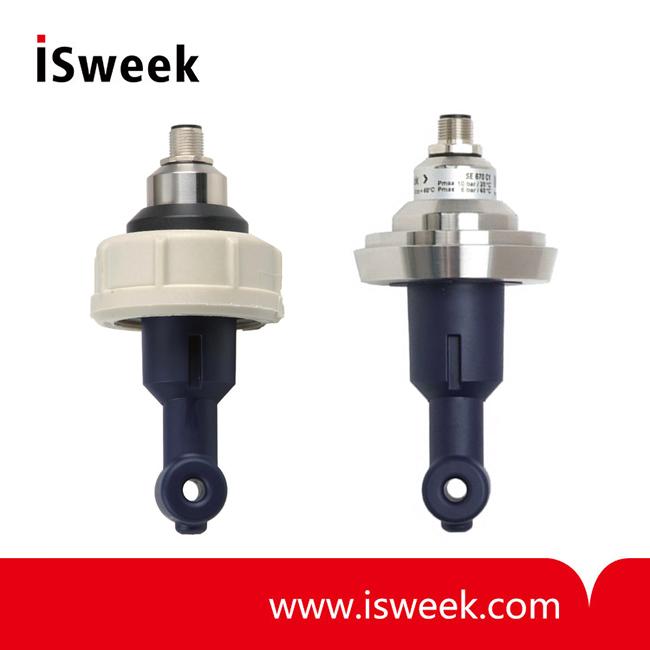

SE 670 Toroidal Conductivity Sensor

Competitively priced digital sensor for measuring low to very high conductivity values, insensitive to contamination and corrosion


Universal conductivity sensor with large measuring range for moderate chemical stress. With integrated, extremely fast temperature detector.



SE 670 Toroidal Conductivity Sensor Facts

- Digital data transfer
- Cable length up to 100 m
- Competitively priced
- Compact design
- No process-wetted electrodes
- Large measuring range
- Quick-reacting temperature detector
- Insensitive to deposits and contaminations


SE 670 Toroidal Conductivity Sensor Applications

 Fresh water and wastewater treatment, electroplating, photographic processes, air conditions, cooling tower monitoring, in-company wastewater treatment plants, monitoring of salts, alkaline solutions, and conductivity, tanneries, caustic treatment, washers, automotive engineering, rinsing processes


SE 670 Toroidal Conductivity Sensor Specifications

Cell factor*)  Approx. 6.4/cm
Measuring range  0.02 to 2000 mS/cm
Accuracy  ≤ 1 %
Material  PP (polypropylene)
Temperature detector  Pt 1000
Temperature response time  Quick, using extrapolation with neuronal process
Temperature  0 … 60 °C (momentarily 100 °C)
Pressure  Max. 10 bar at 20 °C, max. 6 bar at 60 °C
Process adaptations

 Coupling nut, G 1 1/2“

 Dairy pipe screw joint, DN 50

 Replacement sensor for installation in

 ARF 210/215 or ARD 220

Sensor cap  M12
*) Observe instructions for use (field conditions)
