Product Description

Features:

• MEMS Thermopile Element

• TO-39 Package

• High Sensitivity

• Silicon Lens

• High Accuracy NTC

• DS Ratio 8:1



Applications:

• Non-contact Temperature Measurements

• Continuous Temperature Control of Manufacturing

• For Industrial Remote Temperature Measurement

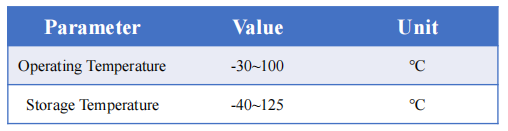

Absolute Maximum Rating：

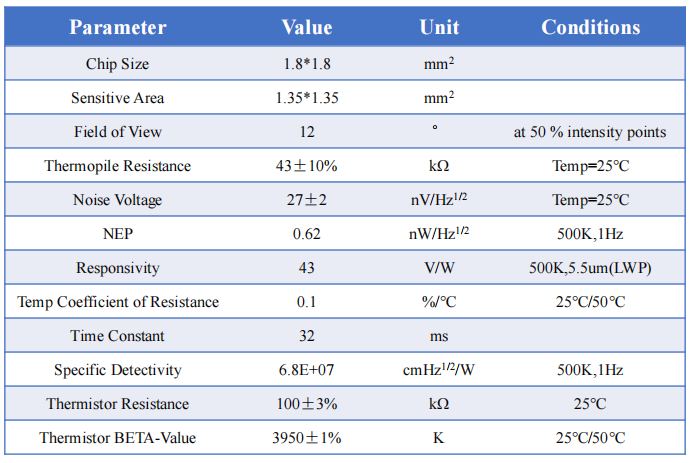

Performance Specification：

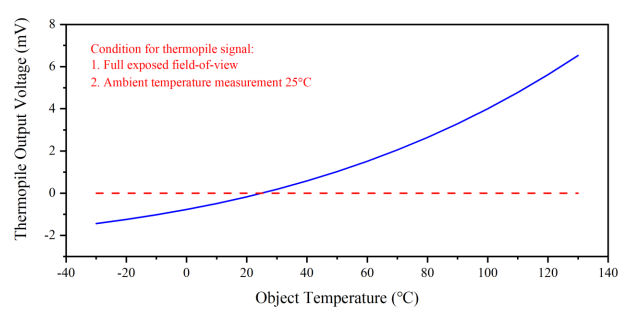

Typical Performance Curve：

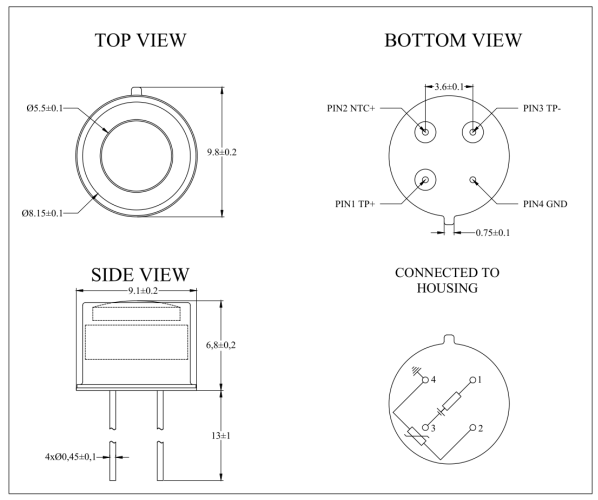

Mechanical Dimension：
