• Thermopile Temperature Sensor
Mouse over image to zoom

Thermopile Temperature Sensor

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    MTP10-A6L10.6

  • Data Sheet

  • Package

    Original packaging

  • Specs

    MTP10-A6L10.6

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

Features:

• MEMS Thermopile Element

• TO-39 Package

• High Sensitivity

• Silicon Lens

• High Accuracy NTC

• DS Ratio 10:1



Applications:

• Non-contact Temperature Measurements

• Continuous Temperature Control of Manufacturing

• For Industrial Remote Temperature Measurement

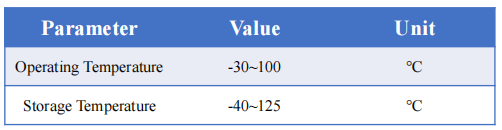

Absolute Maximum Rating：

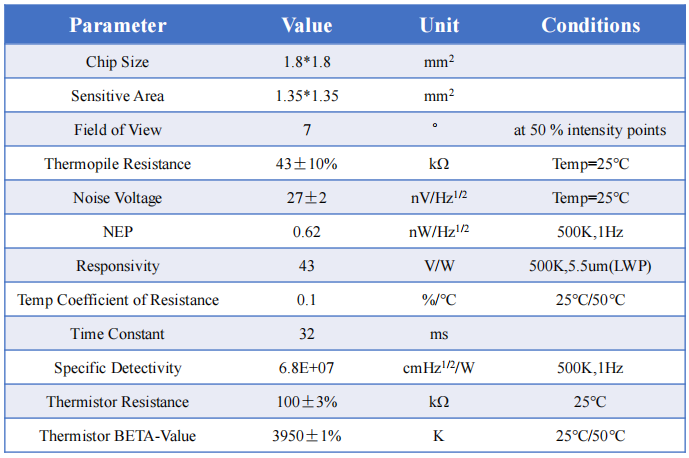

Performance Specification：

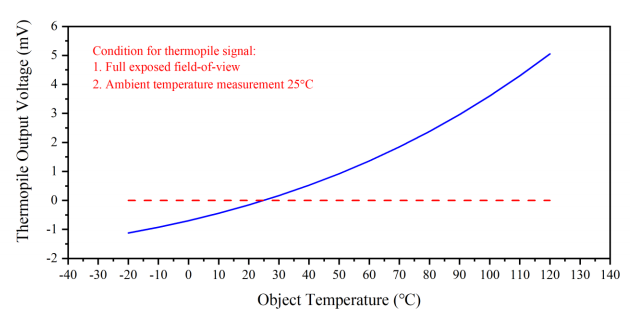

Typical Performance Curve：

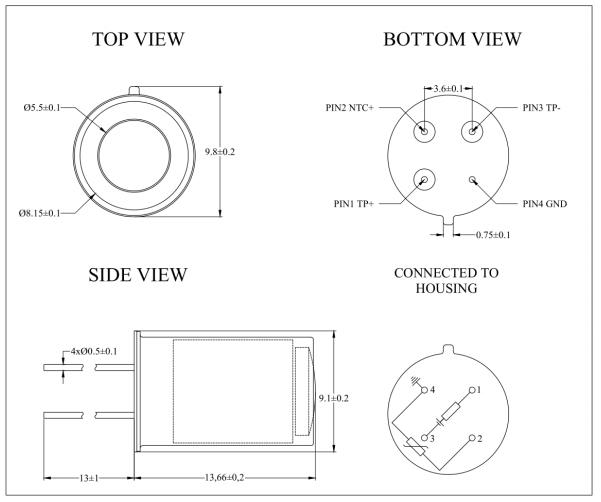

Mechanical Dimension：
