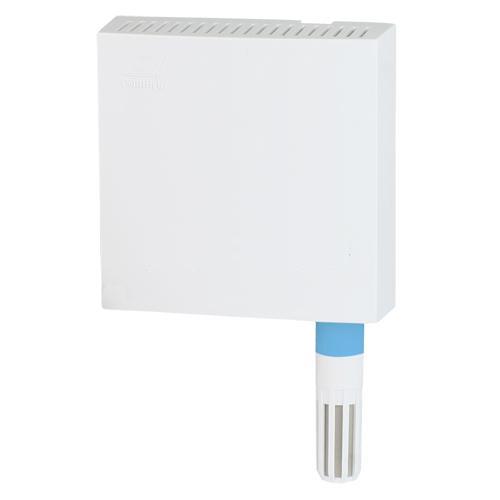

Temperature and Humidity Transmitter (Wall Mounted)
-
Price
Price on request ≥1piece
-
Model Number
JWSL-12 -
Data Sheet
-
Package
Original packaging -
Specs
JWSL-12 -
Quantity
- +Send Inquiry
Find Similar Products
-
Miniature Digital Relative Humidity and Temperature Sensor
Model Number：HTU21D
MOQ：1
-
Probe Style Relative Humidity Sensor Module
Model Number：HM1500LF
MOQ：1
-
Capacitive Humidity Sensor
Model Number：HS1101/HS1101LF
MOQ：1
-
Voltage Output Temperature and Humidity Sensor
Model Number：HTG3515CH
MOQ：1
-
Humidity and Temperature Sensor Module
Model Number：HTG3535CH
MOQ：1
-
Voltage Output Humidity and Temperature Sensor Module
Model Number：HTG3835PVBL
MOQ：1
Product Description
JWSL-12 Temperature and Humidity Transmitter Introduction
Sensor, transmitter integrated design and big screen display is suitable for hvac indoor environment temperature and humidity measurement. It uses special temperature compensation circuit and linearized processing circuit. This product has reliable performance, long service life, fast response speed. A variety of models meet the requirement of RoHS lead-free.
JWSL-12 Temperature and Humidity Transmitter Use
Applicable to temperature and humidity measurement of telecommunication room, offices, factories, workshop, hospital, archives, museums, hvac, building automation and so on.
JWSL-12 Temperature and Humidity Transmitter Characteristic
• High precision, low drift, fast response speed
• Long service life and strong anti-jamming capability
• A variety of network output
• Small volume
• A variety of models meet RoHs lead-free requirements
• Stable performance, easy to install
• CE certification
JWSL-12 Temperature and Humidity Transmitter Parameters
Sensor, transmitter integrated design and big screen display is suitable for hvac indoor environment temperature and humidity measurement. It uses special temperature compensation circuit and linearized processing circuit. This product has reliable performance, long service life, fast response speed. A variety of models meet the requirement of RoHS lead-free.
JWSL-12 Temperature and Humidity Transmitter Use
Applicable to temperature and humidity measurement of telecommunication room, offices, factories, workshop, hospital, archives, museums, hvac, building automation and so on.
JWSL-12 Temperature and Humidity Transmitter Characteristic
• High precision, low drift, fast response speed
• Long service life and strong anti-jamming capability
• A variety of network output
• Small volume
• A variety of models meet RoHs lead-free requirements
• Stable performance, easy to install
• CE certification
JWSL-12 Temperature and Humidity Transmitter Parameters
| DC power supply | Current output: DC 24V (22V~26V) |
| Voltage output: DC 24V (12V~24V) | |
| Net output: DC 24V (12V~24V) | |
| Max current | Two wires system output: 40mA (DC 24V) |
| Voltage output: 20mA (DC 24V) | |
| Net output: 20mA (DC 24V) | |
| Accuracy | Humidity: ± 3％RH (5～95％RH, 25°C) |
| Temperature: ± 0.5°C (25°C) | |
| Working environment | Humidity: 0～100%RH (no condensation) |
| Temperature: -10°C～60°C | |
| Range | Humidity: 0～100%RH |
| Temperature: 0°C～50°C | |
| Response time | ≤15s (1m/sair speed) |
| Long-term stability | Humidity: ≤ 1%RH/y |
| Temperature: ≤ 0.1°C/y | |
| Output signal | Current output: 4～20mA |
| Voltage output: 0～5V | |
| Net output: RS485/RS232 | |
| Load capacity | Voltage output: output impedance ≤ 250Ω |
| Current output: ≤ 500Ω | |
| Installation | Wall mounted |
| Shell | ABS white 91mm x 91mm x 30mm (without probe) |
