Product Description

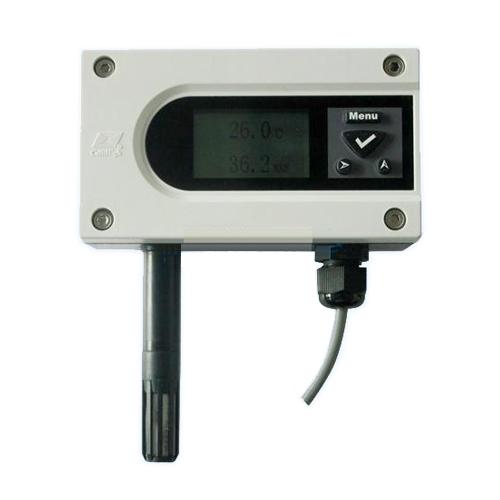

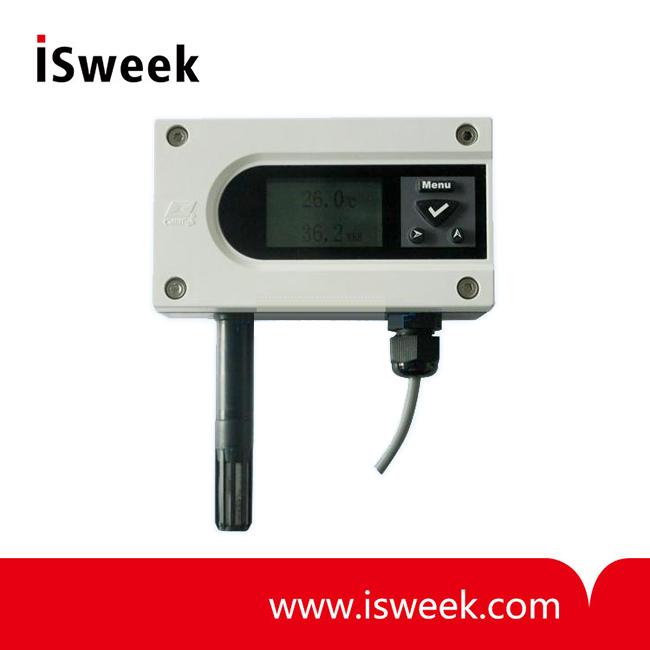

JWSK-5 Temperature and Humidity Transmitter Introduction
JWSK-5 series temperature and humidity transmitter belongs to industrial product and can measure the temperature range from -40°C to 120°C.

JWSK-5 Temperature and Humidity Transmitter Characteristic
• Many analog output: 0 ~ 5V, 0 ~ 10V or 4 ~ 20mA
• 128 x 64 LCD display temperature and humidity
• Zero point correction function
• Probe maximum working temperature range from -40°C to 120°C
• Can switch from temperature and humidity to temperature, dew point
• Optional network RS485 or RS232 output

JWSK-5 Temperature and Humidity Transmitter Parameters
Power supply Current output: DC 24V (22V~26V)
Voltage output: DC 24V (12V~24V)
Net output: DC 24V (12V~24V)
Max current Current output: 50mA (DC 24V)
Voltage output: 20mA (DC 24V)
Net output: 20mA (DC 24V)
Accuracy 5～95％RH
Working environment Humidity: 5～95%RH
Temperature: -20°C～60°C
Range Humidity: 0～100%RH
Temperature: -40°C～120°C (decide by label)
Response time temperature: ≤15s
Humidity: ≤4s
Long-term stability Humidity: ≤ 1%RH/y
Temperature: ≤ 0.1°C/y
Analog output 0～5V or 0～10V or 4～20mA (decide by label)
Net output RS485/RS232
LCD display temperature °C, humidity %R, dew-point °C
Display resolution 0.1%RH, 0.1°C
Load capacity Voltage output: output impedance ≤ 250Ω
Current output: ≤ 500Ω
Charater repeatability: ≤0.5%RH, ≤0.1°C
annual drift: ≤1%RH, ≤0.1°C
Installation Wall mounted or pipe type
Shell 125mm x 70mm x 41mm
Weight about 305g (wall mounted)
