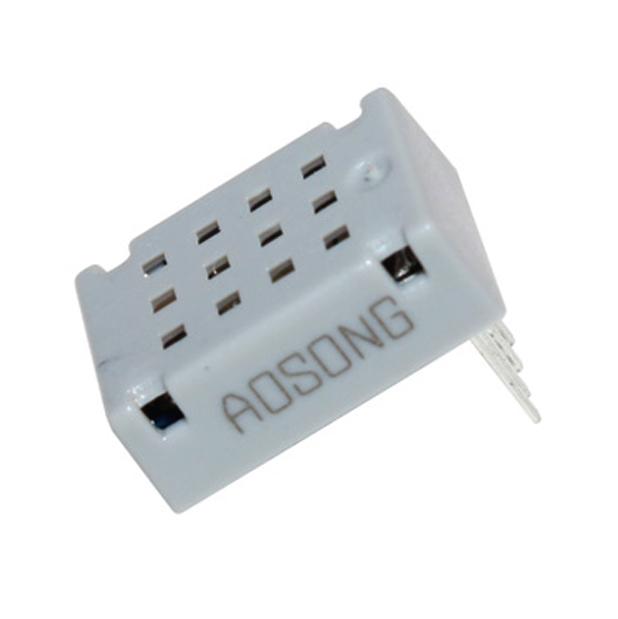

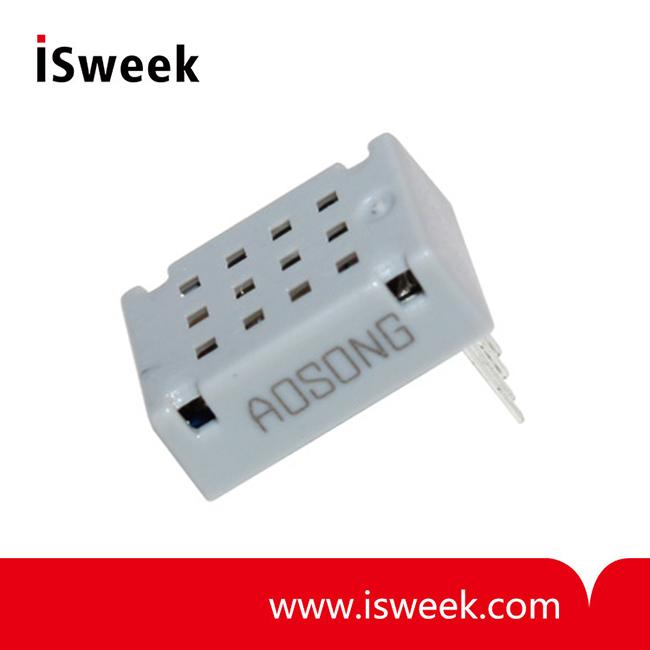

Temperature and Humidity Sensor
-
Price
Price on request ≥1piece
-
Model Number
AM2322 -
Data Sheet
-
Package
Original packaging -
Specs
AM2322 -
Quantity
- +Send Inquiry
Find Similar Products
-
Miniature Digital Relative Humidity and Temperature Sensor
Model Number：HTU21D
MOQ：1
-
Probe Style Relative Humidity Sensor Module
Model Number：HM1500LF
MOQ：1
-
Capacitive Humidity Sensor
Model Number：HS1101/HS1101LF
MOQ：1
-
Voltage Output Temperature and Humidity Sensor
Model Number：HTG3515CH
MOQ：1
-
Humidity and Temperature Sensor Module
Model Number：HTG3535CH
MOQ：1
-
Voltage Output Humidity and Temperature Sensor Module
Model Number：HTG3835PVBL
MOQ：1
Product Description
AM2322 Temperature and Humidity Sensor Product Overview
AM2322 The digital temperature and humidity sensor is a kind of temperature and humidity composite sensor with the output of calibrated digital signal. The special temperature and humidity collection technology is adopted to ensure the high reliability and long-term stability of the product.The sensor includes a capacitive sensing element and a high-precision integrated temperature measurement element, which is connected to a high-performance microprocessor.The product has high quality, super fast response, strong anti-interference ability and high cost performance.
AM2322 communication mode adopts single bus, standard I squared C communication mode.Standard single bus interface makes system integration easy and fast.The super small volume, extremely low power consumption, the signal transmission distance can reach up to 20 meters, making it the best choice for all kinds of applications and even the most demanding applications.The I squared C communication mode adopts standard communication timing, and the user can be directly attached to the I squared C communication bus, with no additional wiring and simple use. Two kinds of communication mode is used directly output after temperature compensation, humidity, temperature and the CRC check and other digital information, users need to secondary calculation of digital output, also need not to compensate the temperature humidity, accurate temperature and humidity information can be got.The two modes of communication are free to switch, users are free to choose, easy to use, and should be widely used.The product is 4 lead wire and convenient connection. Special packaging can be provided according to user's demand.
AM2322 Temperature and Humidity Sensor Product Features
• Super Mini Size Easy Protable
• Ultra-low voltage work
• Ultra-Low Power State
• Excellent long-term stability
• Standard And single bus output
AM2322 Temperature and Humidity Sensor Range of application
Hvac, dehumidifier, testing and inspection equipment, consumer goods, automotive, automatic control, data recorder, weather stations, household appliances, humidity control, medical, and other relative humidity control.
AM2322 Temperature and Humidity Sensor Product highlights
Completely interchangeable, the cost is low, long-term stability, relative humidity and temperature measurement, signal transmission distance long, digital signal output, accurate calibration, extremely low power consumption, standard single bus digital interface, standard I2C bus digital interface,The mode of communication is free to choose.
AM2322 Temperature and Humidity Sensor Sensor performance
Relative humidity
Temperature
AM2322 Temperature and Humidity Sensor Electrical characteristics
AM2322 The digital temperature and humidity sensor is a kind of temperature and humidity composite sensor with the output of calibrated digital signal. The special temperature and humidity collection technology is adopted to ensure the high reliability and long-term stability of the product.The sensor includes a capacitive sensing element and a high-precision integrated temperature measurement element, which is connected to a high-performance microprocessor.The product has high quality, super fast response, strong anti-interference ability and high cost performance.
AM2322 communication mode adopts single bus, standard I squared C communication mode.Standard single bus interface makes system integration easy and fast.The super small volume, extremely low power consumption, the signal transmission distance can reach up to 20 meters, making it the best choice for all kinds of applications and even the most demanding applications.The I squared C communication mode adopts standard communication timing, and the user can be directly attached to the I squared C communication bus, with no additional wiring and simple use. Two kinds of communication mode is used directly output after temperature compensation, humidity, temperature and the CRC check and other digital information, users need to secondary calculation of digital output, also need not to compensate the temperature humidity, accurate temperature and humidity information can be got.The two modes of communication are free to switch, users are free to choose, easy to use, and should be widely used.The product is 4 lead wire and convenient connection. Special packaging can be provided according to user's demand.
AM2322 Temperature and Humidity Sensor Product Features
• Super Mini Size Easy Protable
• Ultra-low voltage work
• Ultra-Low Power State
• Excellent long-term stability
• Standard And single bus output
AM2322 Temperature and Humidity Sensor Range of application
Hvac, dehumidifier, testing and inspection equipment, consumer goods, automotive, automatic control, data recorder, weather stations, household appliances, humidity control, medical, and other relative humidity control.
AM2322 Temperature and Humidity Sensor Product highlights
Completely interchangeable, the cost is low, long-term stability, relative humidity and temperature measurement, signal transmission distance long, digital signal output, accurate calibration, extremely low power consumption, standard single bus digital interface, standard I2C bus digital interface,The mode of communication is free to choose.
AM2322 Temperature and Humidity Sensor Sensor performance
Relative humidity
|
Parameter |
Condition |
min |
typ |
max |
Unit |
|
Resolution |
|
|
0.1 |
|
%RH |
|
Range |
|
0 |
|
99.9 |
%RH |
|
Accuracy |
25°C |
|
±2 |
|
%RH |
|
Repeatability |
|
|
±0.1 |
|
%RH |
|
Interchangeability |
|
Completely interchangeable |
|||
|
Response time |
1/e (63%) |
|
<5 |
|
S |
|
Hysteresis |
|
|
±0.3 |
|
%RH |
|
Drift |
Typical values |
|
<0.5 |
|
%RH/yr |
Temperature
|
Parameter |
Condition |
min |
typ |
max |
Unit |
|
Resolution |
|
|
0.1 |
|
°C |
|
|
16 |
|
bit |
||
|
Accuracy |
|
|
±0.3 |
|
°C |
|
Range |
|
-40 |
|
80 |
°C |
|
Repeatability |
|
|
±0.2 |
|
°C |
|
Interchangeability |
|
Completely interchangeable |
|||
|
Response time |
1/e (63%) |
|
<5 |
|
S |
|
Drift |
|
|
±0.1 |
|
°C/yr |
AM2322 Temperature and Humidity Sensor Electrical characteristics
|
Parameter |
Condition |
min |
typ |
max |
Unit |
|
Supply Voltage |
|
3.1 | 5 | 5.5 |
V |
|
Power Consumption |
Dormancy |
8 | 10 |
|
µA |
|
Measure |
|
500 |
|
µA |
|
|
Averaging |
|
200 | 250 |
µA |
|
|
Low level output voltage |
IOL |
0 |
|
300 |
mV |
|
High level output voltage |
Rp<25 kΩ |
90% |
|
100% |
VDD |
|
Low level input voltage |
descend |
0 |
|
30% |
VDD |
|
High level input voltage |
uplift |
70% |
|
100% |
VDD |
|
Rpu |
VDD = 5V VIN = VSS |
30 | 45 | 60 |
kΩ |
|
The output current |
Open |
|
8 |
|
mA |
|
Three states (close) |
10 |
20 |
|
µA |
|
|
Sampling period |
|
2 |
|
|
S |
