Product Description

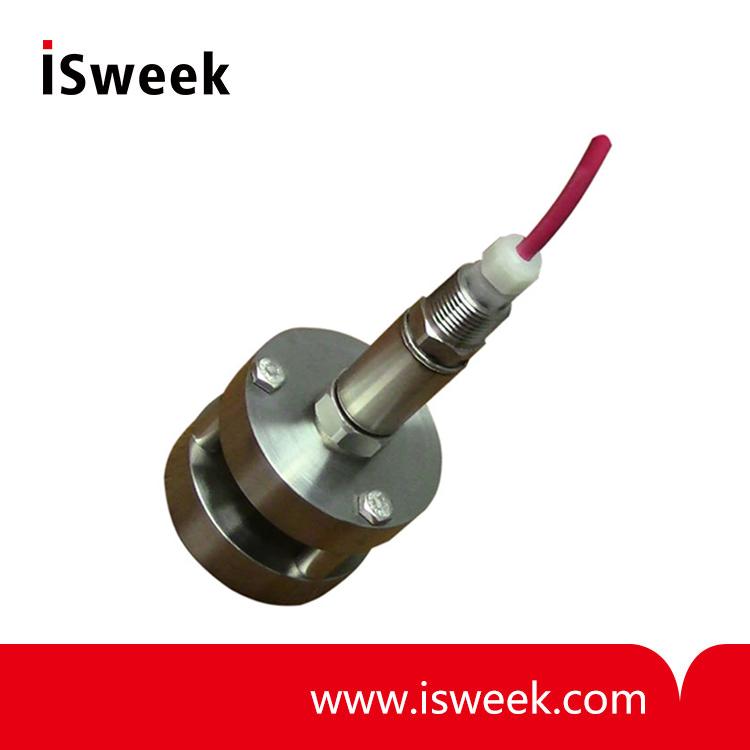

The TDA85 series Submersible Pressure Transducer with Debris Standoff

TDA85 Series Submersible Pressure Transducer FEATURES
• Flush diaphragm transducer with debris avoidance standoff
• Industry-standard 4-20mA output
• Pressure ranges 0-5, 0-7.5, 0-10 and 0-15 PSIG
• Accuracy of 0.25%
• Long-term stability
• Engraved 304SS housing with 316SS diaphragm
• Lightning and surge protection
• EMI/RFI and reverse polarity protection
• Kynar PVDF cable
• Compatible with wide range of chemicals
• Rugged design for harsh waste water environments
• Suitable for waste, salt, brackish, or fresh water systems

TDA85 Series Submersible Pressure Transducer SPECIFICATIONS

Performance @ 25°C (77°F)

Accuracy

 ±0.25% BFSL (includes non-linearity, hysteresis & non-repeatability)

Stability

 <±0.250% FS/year, typical

Over pressure protection

 2X Rated Pressure

Burst Pressure

 5X minimum or 1,250 PSI (whichever is less)

Pressure Cycles

 >50 Million

Environmental Data

Operating temp

 -40 to +85°C (-40 to +185°F)

Storage temp

 -40 to +100°C (-40 to +212°F)

Compensated range

 0 to 55°C (+32 to +130°F)

TC Zero

 <± 1.5% FS

TC Span

 <±1.5% FS

Shock

 100G, 11msec, 1/2 sine

Vibration

 10G peak, 20 to 2000 Hz

EMI/RFI Protection

 Yes

Rating

 IP-68

Electrical Data

Excitation

 10-28 Vdc for 4-20mA

Zero offset

 <±1.0% of FS

Span tolerance

 <±2.0% of FS

Output Load

 0-800 Ohms@ 10-28VDC

Reverse Polarity Protection

 Yes

Physical data

Sensor wetted material

 316SS

Body material

 304SS

Cable pull strength

 200 lb.

Pressure connection

 Flush diaphragm with debris stand-off

Electrical Connection

  Molded, vented submersible Kynar PVDF cable


TDA85 Series Submersible Pressure Transducer ORDERING
