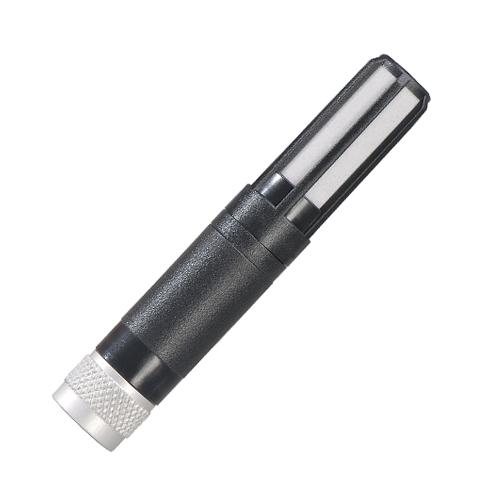

• Smart Temperature and Humidity Probe HygroClip2 Sensor probe
Mouse over image to zoom

Smart Temperature and Humidity Probe HygroClip2 Sensor probe

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    HC2-S

  • Data Sheet

  • Package

    Original packaging

  • Specs

    HC2-S

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

HygroClip2 series

Temperature and Humidity Probe


Innovation in humidity and temperature measurement
• Relative humidity, temperature measurement and dew point calculation
• Outstanding accuracy and repeatability
• Excellent long-term stability <1 %RH / year
• Integrated data acquisition and calibration history
• Auto-diagnostics with error compensation
• Programmable alarm functions
• Advanced easy-to-use calibration features
• 100% field interchangeable



The HC2-series are digital humidity-temperature probes based on the AirChip 3000 technology.

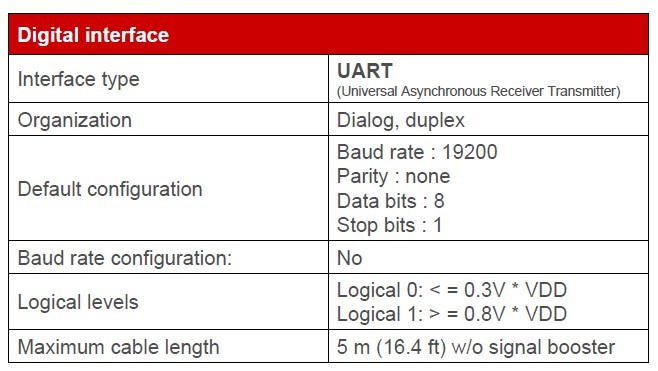

These probes feature a UART serial interface and two 0…1 V linear analog output signals.


The HC2 probes are designed for use with the HygroClip 2 generation of ROTRONIC humidity-temperature instruments: hand-held and bench top indicators, data loggers, transmitters, hygrostats, etc…



The HC2 probes maintain all of the benefits of the original HygroClip technology such as the possibility of hot-swapping probes. Also significant improvements in the area of measurement accuracy and functionality are integrated.


The HC2 probes can also be used as a stand-alone device featuring: Analog output signals and Digital interface (UTAT)


The HC2 probes offer the following user functions:

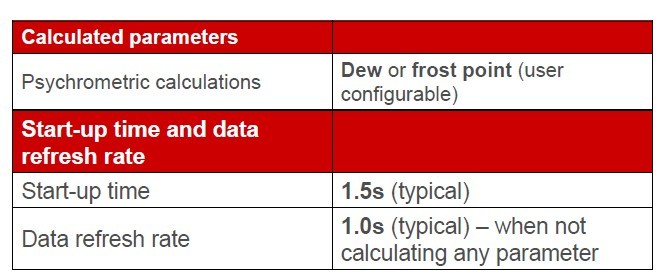

• Calculation of the dew or frost point
• Humidity temperature calibration and adjustment
• Simulator mode
• Automatic humidity sensor test and drift compensation
• Sensor failure mode
• Data recording
