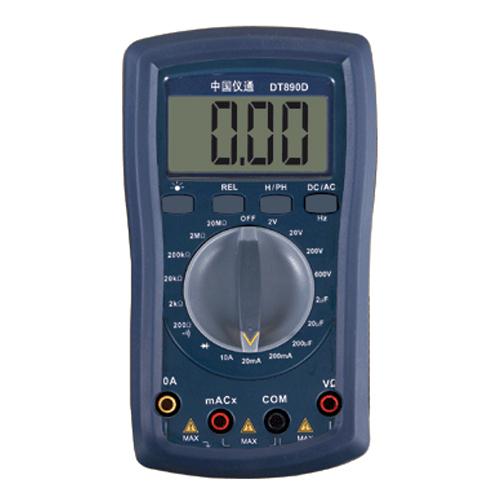

Self-recover Protection Digital Multimeter
-
Price
Price on request ≥1piece
-
Model Number
DT890D -
Data Sheet
-
Package
Original packaging -
Specs
DT890D -
Quantity
- +Send Inquiry
Find Similar Products
-
Pen-type Digital Multimeter
Model Number：MS8211/MS8211D
MOQ：1
-
Digital Insulation Tester
Model Number：MS5203/MS5203A
MOQ：1
-
Pocket Digital Multimeter
Model Number： M300
MOQ：1
-
True RMS Benchtop Digital Multimeter
Model Number：M9803R
MOQ：1
-
Digital Multimeter
Model Number：MAS830/MAS830B/MAS830L
MOQ：1
-
Digital Multimeter
Model Number：MAS838
MOQ：1
Product Description
DT890D Digital Multimeter General Feature
• 3 1/2 digit digital display
• 17 measuring ranges
• Self-recover protection in mA/Cx ranges
• Voltage, current and frequency measuring one–key switch
• Resistance, diode and continuity tests
• Backlight turn off delay, automatically
• Relative value measurement(REL)
• Data Hold/ Peak value Hold
DT890D Digital Multimeter Accessories
1 x Test leads set, 1 x 10A current adapter, 1x yellow Holster,
3 AAA x batteries, 1x user’s manual
Dimension: 148 x 78 x 35mm
Weight: 250g (include batteries)
DT890D Digital Multimeter Measurement Range and Accuracy
|
Function |
Range |
Resoltion |
Accuracy |
|
DC voltage |
2V/20V/200V/600V |
100μV |
±(0.8%+3d) |
|
AC voltage |
2V/20V/200V/600V |
100μV |
±(1.2%+3d) |
|
DC current |
20mA/200mA/10A |
10μA/10mA |
±(1%+3d) |
|
AC current |
20mA/200mA/10A |
10μA/10mA |
±(1.5%+3d) |
|
Resistance |
200/2k/20k/200k/2M20MΩ |
100mΩ |
±(0.8%+3d) |
|
capacitance |
2μF/20μF/200μF |
1nF |
±(4%+3d) |
