Self-recover Full Protection DMM with High Accuracy Digital Multimeter
-
Price
Price on request ≥1piece
-
Model Number
VC9806A+ -
Data Sheet
-
Package
Original packaging -
Specs
VC9806A+ -
Quantity
- +Send Inquiry
Find Similar Products
-
Pen-type Digital Multimeter
Model Number：MS8211/MS8211D
MOQ：1
-
Digital Insulation Tester
Model Number：MS5203/MS5203A
MOQ：1
-
Pocket Digital Multimeter
Model Number： M300
MOQ：1
-
True RMS Benchtop Digital Multimeter
Model Number：M9803R
MOQ：1
-
Digital Multimeter
Model Number：MAS830/MAS830B/MAS830L
MOQ：1
-
Digital Multimeter
Model Number：MAS838
MOQ：1
Product Description

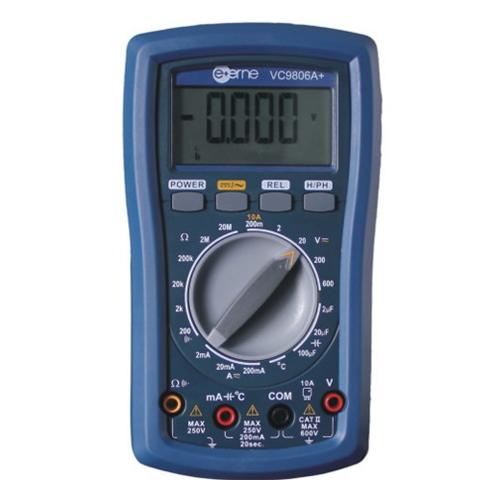

VC9806A+ Digital Multimeter General Feature
• 4 1/2 digit digital and analog display
• Bearing 250V rush in every range, including current range
• Temperature measuring with K-type temperature probe(℃/℉)
• REL
• Max. record
• Auto shut off
VC9806A+ Digital Multimeter Accessories
ET-01B test leads, ET-02 temperature probe, 10A current adopter, shocked-resistance holster, user's manual
VC9806A+ Digital Multimeter Measurement Range and Accuracy
|
Function |
Range |
Accuracy |
|
DC voltage |
200V~600V |
±(0.2%+3d) |
|
AC voltage |
200mV~600V |
±(0.5%+3d) |
|
DC current |
2mA~200mA/10A |
±(0.8%+3d) |
|
AC current |
2mA~200mA/10A |
±(1.2%+3d) |
|
Resiastance |
200Ω~20MΩ |
±(0.5%+3d) |
|
Capacitance |
2μF~200μF |
±(2.5%+5d) |
|
TEM(℃/°F) |
-40℃~400℃ |
±(1.0%+5d) |
