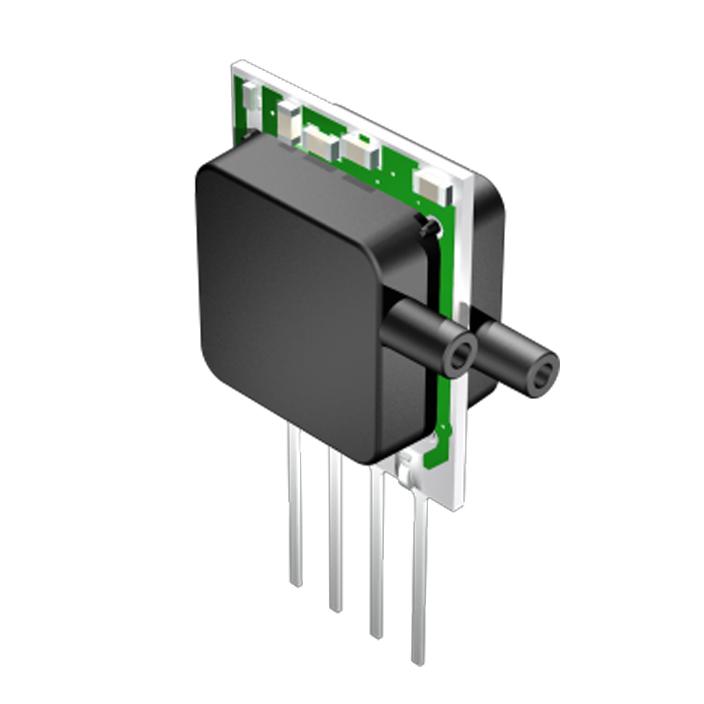

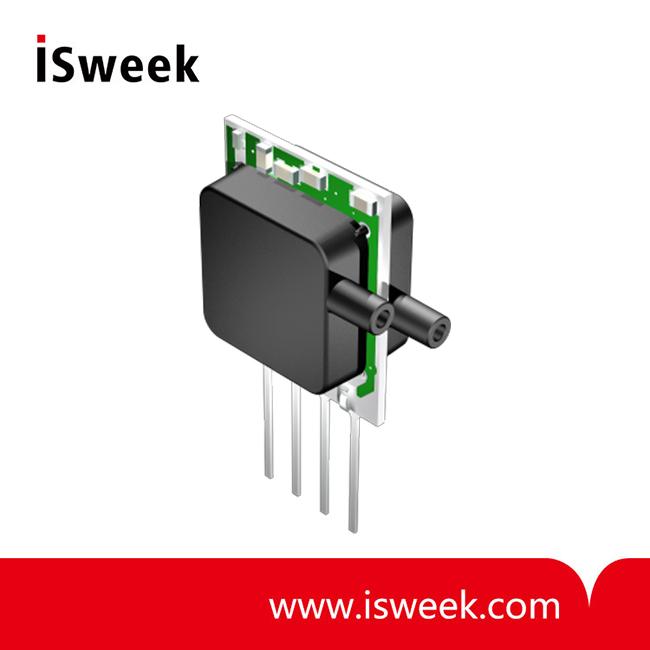

SAMP Series Barometric Amplified Pressure Sensors
-
Price
Price on request ≥1piece
-
Model Number
BARO-A-4V-MINI -
Data Sheet
-
Package
Original packaging -
Specs
BARO-A-4V-MINI -
Quantity
- +Send Inquiry
Find Similar Products
-
Gage Pressure Transmitters 0~160MPa, -40~80℃
Model Number：MIDA-SG-13
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-160MPa
Model Number：MIDA-SG-12-11-H
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-1.6MPa
Model Number：MIDA-SG-12-06-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-40MPa
Model Number：MIDA-SG-12-081-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-60MPa
Model Number：MIDA-SG-12-082-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-160MPa
Model Number：MIDA-SG-12-12-H
MOQ：1
Product Description
Barometric Amplified Pressure Sensors
600 to 1,100 mbar Barometric Pressure Sensor
SAMP Series Barometric Amplified Pressure Sensors General Description
The Miniature Amplified Output pressure sensors is based upon a proprietary technology to reduce all output offset or common mode errors. This model provides a calibrated amplified output with superior output offset characteristics. Output offset errors due to change in temperature, stability to warm-up, stability to long time period, and position sensitivity are all significantly reduced when compared to conventional compensation methods. In addition the sensor utilizes a silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pressure.
These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like.
The output of the device is ratiometric to the supply voltage and operation from any D.C. supply voltage between 4.5 and 5.5 volts.
SAMP Series Barometric Amplified Pressure Sensors Features
• Barometric Pressure Range
• Temperature Compensated
• Calibrated Zero and Span
SAMP Series Barometric Amplified Pressure Sensors Applications
• Medical Instrumentation
• Environmental Monitoring
• Altimeters
• Chemical Analysis
SAMP Series Barometric Amplified Pressure Sensors
SAMP Series Barometric Amplified Pressure Sensors Standard Pressure Ranges
600 to 1,100 mbar Barometric Pressure Sensor
SAMP Series Barometric Amplified Pressure Sensors General Description
The Miniature Amplified Output pressure sensors is based upon a proprietary technology to reduce all output offset or common mode errors. This model provides a calibrated amplified output with superior output offset characteristics. Output offset errors due to change in temperature, stability to warm-up, stability to long time period, and position sensitivity are all significantly reduced when compared to conventional compensation methods. In addition the sensor utilizes a silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pressure.
These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like.
The output of the device is ratiometric to the supply voltage and operation from any D.C. supply voltage between 4.5 and 5.5 volts.
SAMP Series Barometric Amplified Pressure Sensors Features
• Barometric Pressure Range
• Temperature Compensated
• Calibrated Zero and Span
SAMP Series Barometric Amplified Pressure Sensors Applications
• Medical Instrumentation
• Environmental Monitoring
• Altimeters
• Chemical Analysis
SAMP Series Barometric Amplified Pressure Sensors
|
Pressure Sensor Characteristics Maximum Ratings |
|
Environmental Specifications |
||
|
Supply Supply Voltage VS |
+4.5 to +5.5Vdc |
Compensated Temperature |
see specification |
|
|
Lead Temperature (soldering 2-4 sec.) |
250°C |
Operating Temperature |
-25 to 85 °C |
|
|
|
|
Storage Temperature |
-40 to 125 °C |
|
|
|
|
Humidity Limits |
0 to 95% RH (non condensing) | |
SAMP Series Barometric Amplified Pressure Sensors Standard Pressure Ranges
|
Part Number |
Operating Pressure |
Compensated Range |
|
BARO-A-4V-MINI |
600 to 1,100 mbar |
5 to 50° C |
|
BARO-A-4V--MINI-PRIME |
600 to 1,100 mbar |
-25 to 85° C |
|
BARO-A-4V-MINI-MIL |
600 to 1,100 mbar |
-40 to 125° C |
