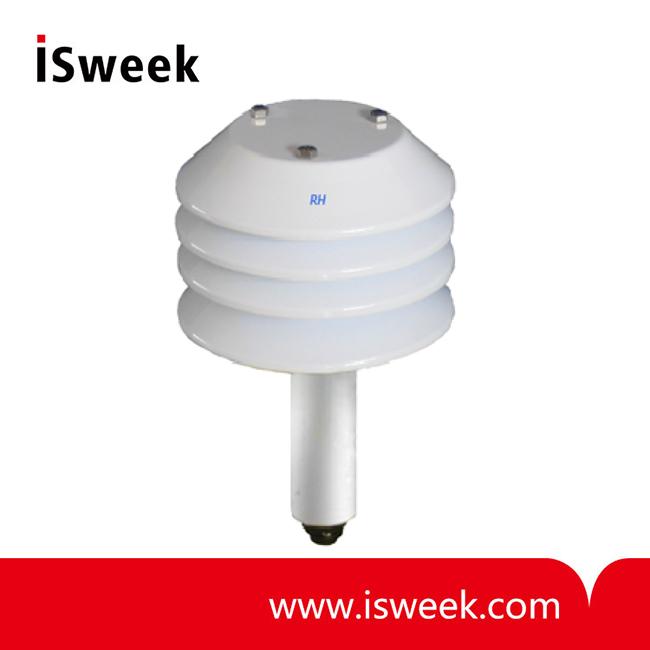

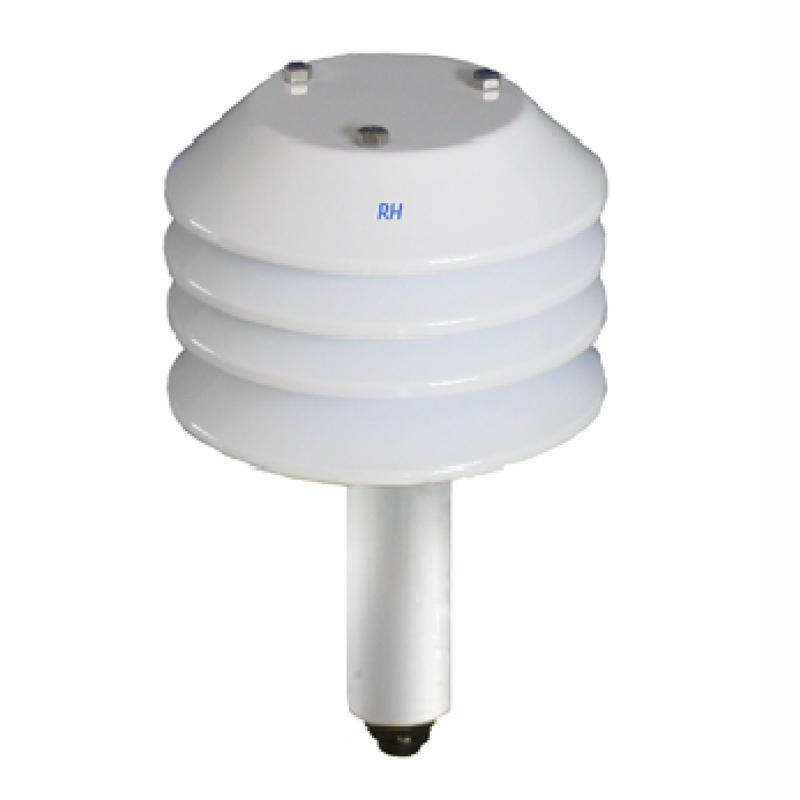

Relative Air Humidity Sensor
-
Price
Price on request ≥1piece
-
Model Number
UR -
Data Sheet
-
Package
Original packaging -
Specs
UR -
Quantity
- +Send Inquiry
Find Similar Products
-
Miniature Digital Relative Humidity and Temperature Sensor
Model Number：HTU21D
MOQ：1
-
Probe Style Relative Humidity Sensor Module
Model Number：HM1500LF
MOQ：1
-
Capacitive Humidity Sensor
Model Number：HS1101/HS1101LF
MOQ：1
-
Voltage Output Temperature and Humidity Sensor
Model Number：HTG3515CH
MOQ：1
-
Humidity and Temperature Sensor Module
Model Number：HTG3535CH
MOQ：1
-
Voltage Output Humidity and Temperature Sensor Module
Model Number：HTG3835PVBL
MOQ：1
Product Description
UR Air humidity sensor
URV Air humidity sensor with fan
UR Relative Air Humidity Sensor DESCRIPTION
Sensor for relative air humidity measurement at low power (<0.1 W), compact and sturdy, made of anodized aluminum alloy for protection against salt and oxidizing agents. According to WMO norms for environmental monitoring.
Very fast and precise, linear on full range of measure, easy to interface with any data logger. Product for both natural ventilation and forced ventilation. The sensor is equipped with electrical protection and is available with different signal outputs, normalized voltage or current 0 - 1Vdc, 4 - 20mA or RS485/Modbus. Available also combined temperature-humidity (model UTA).
UR Relative Air Humidity Sensor Highlighted specs
• Accurated and reliable Air Humidity Sensor
• Limited dimensions and weight
• Measure with high precision capacity
• Compact and light design in aluminum for hot and cold climates
• According to WMO standards and to EN 15518-3:2011
• Accuracy ≤ 1%, response time <8sec (10÷80%Rh)
• Available with forced ventilation
• According to CE
UR Relative Air Humidity Sensor Technical Data
UR Relative Air Humidity Sensor Order Form
example of order code
* specify the length for no standard measures
URV Air humidity sensor with fan
Sensor for relative air humidity measurement at low power (<0.1 W), compact and sturdy, made of anodized aluminum alloy for protection against salt and oxidizing agents. According to WMO norms for environmental monitoring.
Very fast and precise, linear on full range of measure, easy to interface with any data logger. Product for both natural ventilation and forced ventilation. The sensor is equipped with electrical protection and is available with different signal outputs, normalized voltage or current 0 - 1Vdc, 4 - 20mA or RS485/Modbus. Available also combined temperature-humidity (model UTA).
UR Relative Air Humidity Sensor Highlighted specs
• Accurated and reliable Air Humidity Sensor
• Limited dimensions and weight
• Measure with high precision capacity
• Compact and light design in aluminum for hot and cold climates
• According to WMO standards and to EN 15518-3:2011
• Accuracy ≤ 1%, response time <8sec (10÷80%Rh)
• Available with forced ventilation
• According to CE
UR Relative Air Humidity Sensor Technical Data
|
Typical range |
0 ~ 100%Rh |
|
Resolution |
<0.1% |
|
Accuracy |
± 1% |
|
Response time |
< 8sec (10 ~ 80%RH) |
|
Type of transducer |
capacitive |
|
Ventilation |
natural (cod. UR) Forced (cod. URV) |
|
Signal out |
0 ~ 1 Vdc; 4 ~ 20mA (0 ~ 100%Rh) , RS485 / ModBus Rtu |
|
Working conditions |
-50 ~ +80°C (-60 ~ +80°C available) |
|
Protections |
polarity reverse and transient |
|
Made of |
aluminium alloy, stainless steel screws |
|
Power supply and consumption |
10 - 30Vdc, (typ.<0.1W, max 2W@12Vdc mod. TAV) |
|
Weight |
680g |
UR Relative Air Humidity Sensor Order Form
|
Sensor |
Air Relative Humidity Sensor Fan Air Relative Humidity Sensor |
UR URV |
A B C |
05 10 xx |
SS1 SS2 SS3 |
|
Output |
0 - 1Vdc A 4 - 20mA B RS485 / Modbus Rtu |
||||
|
Accessories |
CS05 – Cable 5m sensor-datalogger CS10 – Cable 10m sensor-datalogger CSxx – Cable xx* m length sensor – datalogger |
||||
|
SS1 – Sensors support l=500mm SS2 – Sensors support l=1500mm SS3 – Sensors support l=900mm |
|||||
example of order code
|
UR |
A | 10 | SS2 |
* specify the length for no standard measures
