Product Description

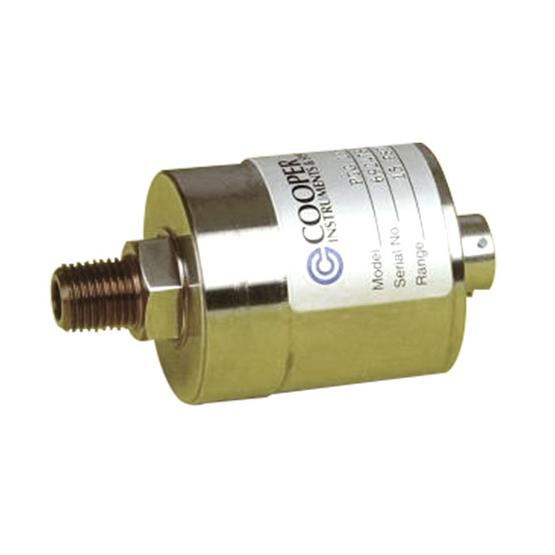

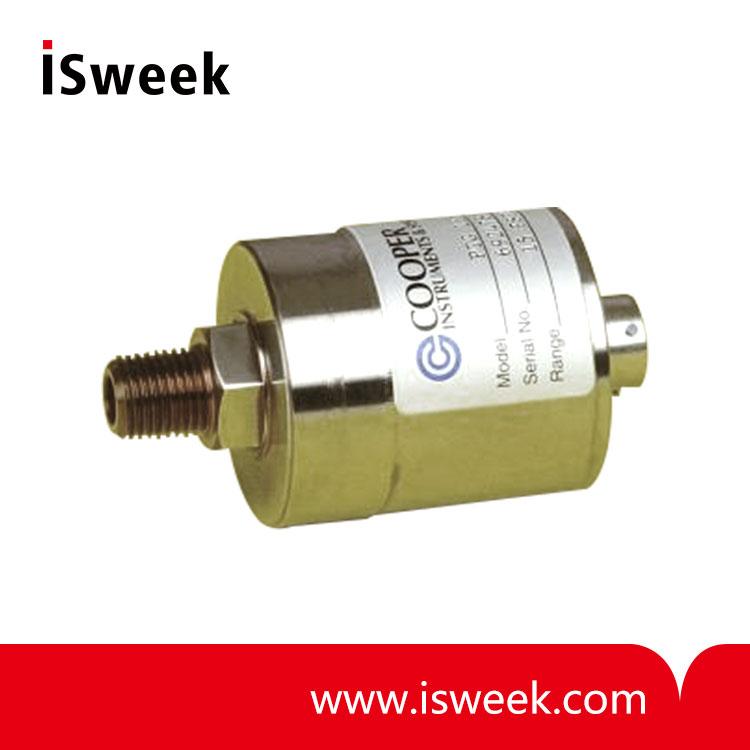

PTG 135 - Precision Pressure Transducer
The model PTG 135 (gage pressure) is designed for rugged industrial applications requiring high accuracy pressure measurements. These transducers are designed with 4 arm 350 ohm strain gage bridge and have welded stainless steel construction. Using a "True Gage" design, the PTG 135 utilizes a second welded diaphragm that hermetically seals the strain gage circuitry which allows the transducer to reference atmospheric pressure.
PTG 135 Precision Pressure Transducer Features
• Hermetically Sealed
• High Accuracy
• Welded Diaphragm
• Optional Amplified Output
• 0.1% Full Scale Accuracy
The model PTG 135 (gage pressure) is designed for rugged industrial applications requiring high accuracy pressure measurements. These transducers are designed with 4 arm 350 ohm strain gage bridge and have welded stainless steel construction. Using a "True Gage" design, the PTG 135 utilizes a second welded diaphragm that hermetically seals the strain gage circuitry which allows the transducer to reference atmospheric pressure.
PTG 135 Precision Pressure Transducer Features
• Hermetically Sealed
• High Accuracy
• Welded Diaphragm
• Optional Amplified Output
• 0.1% Full Scale Accuracy
PTG 135 Precision Pressure Transducer Specifications
|
Pressure Ranges |
1 psig to 60,000 psig |
|
Accuracy |
± .1% F.S. |
|
Material |
Stainless Steel |
|
Temperature Range |
60˚ to 160˚ F |
|
Output |
2mV/V ±0.25% |
|
Output Resistance |
350 ±5 Ohms |
|
Bridge Rresistance |
350 ohm |
|
Excitation |
10 V ac-dc (15V max) |
|
Safe Overload |
25% to 50% Over Capacity |
|
Pressure Ports |
1 to 10,000 psia see chart 15,000 psia to 60,000 psia - 9/16-18UNF per AE F250-C for 1/4 OD High Pressure Tubing |
|
Cable |
As Required - mating conn. not incl. (PTO6A-10-6S) |
|
PTG 135 PRESSURE RANGES |
D" |
L" |
|
1; 2; 5 psig |
2.25 |
1.81 |
|
10; 15 psig |
1.75 | 2.00 |
|
25; 50; 75; 100; 150; 200; 300; 500 psig |
1.50 | 2.01 |
|
750; 1000; 1500, 2000, 3000; 5000 psig |
1.50 | 2.35 |
|
7500; 10,000 psig |
1.50 | 2.39 |
|
15,000; 20,000; 30,000; 50,000; 60,000 psig |
1.50 | 2.21 |
Order Code Example:
