Mouse over image to zoom

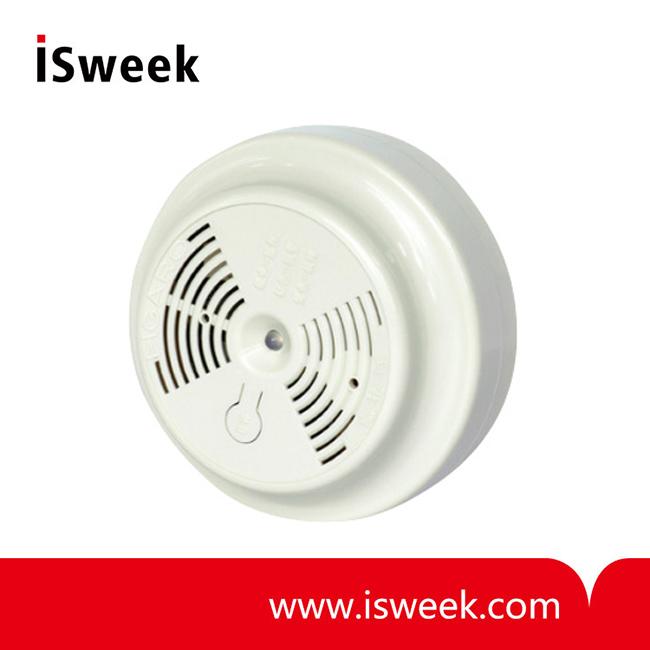

Point Combustible Gas Detector
-
Price
Price on request ≥1piece
-
Model Number
BJ-86-3A -
Data Sheet
-
Package
Original packaging -
Specs
BJ-86-3A -
Quantity
- +Send Inquiry
Find Similar Products
-
CO Gas Alarm for CO Detection
Model Number：GT
MOQ：1
-
Combustible, Explosive and Toxic Gas Leak Alarm
Model Number：GK
MOQ：1
-
Natural Gas, CO Leakage Detection with Plug
Model Number：GS
MOQ：1
-
Battery-operated CO Alarm With LCD Display; Comply with EN50291
Model Number：KAD
MOQ：1
-
Venus Carbon Monoxide Alarm, Battery-opearated CO Alarm
Model Number：Venus
MOQ：1
-
Combustible Gas Alarm with EN50194 Approval
Model Number：KAB
MOQ：1
Product Description
Point Combustible Gas Detector
BJ-86-3A Combustible Gas Detector Detection of gas:
Liquefied natural gas
Other
BJ-86-3A Combustible Gas Detector Technical Parameters
BJ-86-3A Combustible Gas Detector Detection of gas:
Liquefied natural gas
Other
BJ-86-3A Combustible Gas Detector Technical Parameters
|
Detection method |
FIGARO semiconductor gas sensor |
|
Alarm concentration |
20% of the lower flammable limit or less (natural gas, liquefied petroleum gas) |
|
Mating systems |
JK-S02-1 / JK-S02-2 JK-P06-1 / JK-S08 Other |
|
Power source |
DC24V ± 15% |
|
Power consumption |
2.5W or less |
|
Alarm |
red light, the alarm sound over 70dB |
|
Fault alarm |
(Gas sensor failure alarm fault) Yellow light |
|
Alarm output |
Relay contact output (AC220V, DC 24V, MAX / A, ordering optional) |
|
Output delay |
20 seconds (± 5 seconds) alarm output (according to user requirements change) |
|
Connection controller |
JK-S02-1; JK-S02-2; JK-P06-1; JK-S08; other |
|
Temperature |
-10 ~ 55°C |
|
Size & Weight |
φ104 x H45mm, about 200g |
|
Subsidiary products |
Screw two, up tube 2 |
|
Executive Standard |
GB15322 |
