Product Description

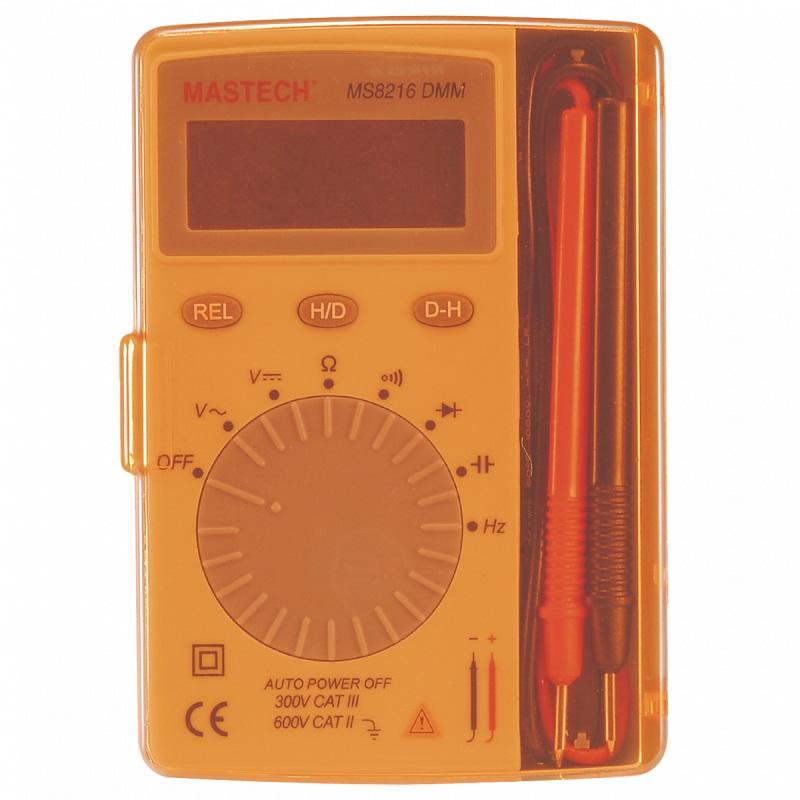

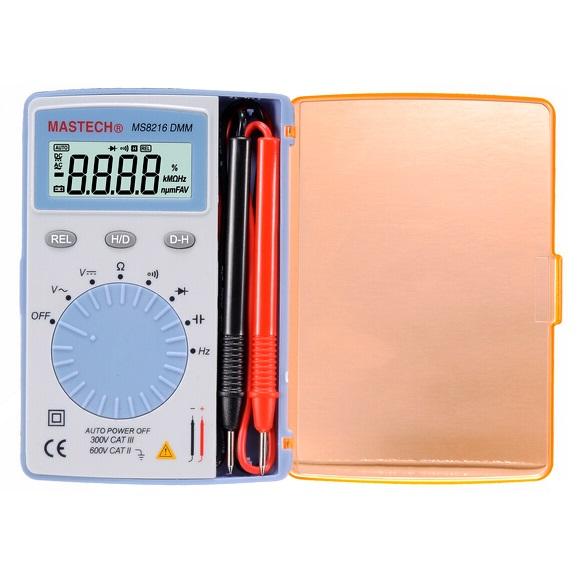

MS8216 Pocket Digital Multimeter Safety information
This multimeter has been designed according to IEC-1010 concerning electronic measuring instruments with an overvoltage CAT II 600V and pollution 2. Follow all safety and operating instructions to ensure that the meter is used safely and is kept in good operating condition.

MS8216 Pocket Digital Multimeter Features
• Display 4000 counts
• Auto and Manual Ranging
• Auto Power Off
• Relative Measurement
• Diode Open Voltage 1.5V
• Continuity Buzzer <50±20Ω
• Low Battery Display
• Data Hold

MS8216 Pocket Digital Multimeter General specifications
• It includes 7 function with 29 ranges.
• Auto ranges.
• Overrange protection for all ranges.
• Max. Voltage Between Terminals And Earth Ground: 600V DC or rms AC
• Operating Altitude: 2000 meters (7000 ft.) maximum
• Display: LCD
• Max. Show Value: 3999 counts max
• Polarity Indication: '-' indicates negative polarity.
• Overrange Indication: Display '0L' or '-0L'
• Sampling Time: approx. 0.4 second
• Unit showing: showing of function and electrical capacity.
• Auto power off time: 15 min.
• Power Supply: 1.5V (LR44 battery) x 2
• Low Battery Indication: 'displayed'
• Temperature Factor: < 0.1 x Accuracy /°C
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -10°C to 50°C (10°F to 122°F)
• Dimension: 110 x 76 x 11mm
• Weight: approximate 100g (including battery)

MS8216 Pocket Digital Multimeter Specifications
