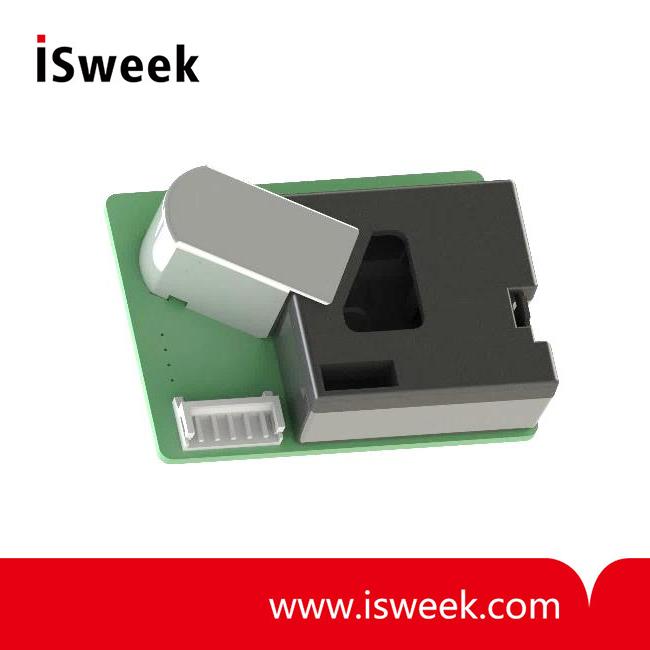

PM2.5 / PM1.0 Sensor
-
Price
Price on request ≥1piece
-
Model Number
PSML series -
Data Sheet
-
Package
Original packaging -
Specs
PSML series -
Quantity
- +Send Inquiry
Find Similar Products
-
Dust Sensor Module for Air Quality Monitor
Model Number：DSM501A
MOQ：1
-
Dust Sensor Module for Air Quality Monitor
Model Number：DSM501B
MOQ：1
-
Alphasense PM2.5 Particle Sensor
Model Number：OPC-N2
MOQ：1
-
Compact Optical Dust Sensor
Model Number：GP2Y1010AU0F
MOQ：1
-
PM2.5 Particle Sensor
Model Number：OPC-R1
MOQ：1
-
PM2.5 Particle Sensor Dust sensor Laser sensor Atmospheric particle monitors
Model Number：OPC-N3
MOQ：1
Product Description
PRODUCT SUMMARY：
PSML Series is PM2.5/PM1.0 dedicated sensor providing uniform performance and enhanced accuracy which assures precise PM2.5/PM1.0 level classification by detecting over 0.3㎛ sized ultra-fine particle through SAMYOUNG S&C’s proprietary optical structure with IrED
FEATURES：
• Minimum Detectable Particle Size - 0.3㎛
• PWM Output (Low Pulse Occupancy)
• Enhanced Accuracy (LPO)
• Precise PM2.5/PM1.0 Level Classification
• High Linearity and Uniformity
• Market-proven Reliability and Durability
• Pin-to-Pin Compatibility with Existing Sensors
APPLICATION：
• Air Solution Products(Air Purifier, Air Conditioner and etc.) l
• HVAC Control System
• Smart IAQ Device
• Outdoor Particle Sensing Device
Product Specifications：
Ta=25℃
|
Parameter |
Index |
|
Detectable Size |
≥0.3㎛ |
|
Effective Range |
0~500㎍/m3 |
|
Maximum Range |
0~900㎍/m3 |
|
Accuracy |
±25%@100~500㎍/m3 ±2.5(LPO)@0~100㎍/m3 |
|
Time for Initial Stabilization |
60sec. after powered on |
|
Response Time |
1sec |
|
Supply Voltage |
DC5.0V±10% Ripple 30mV or Less |
|
Current Consumption |
Typ. 85mA |
|
Output Signal |
LPO(Low Pulse Occupancy) |
|
Operating Temperature |
-10~65℃ |
|
Operating Humidity |
<95%RH(Non-Condensing) |
|
Storage Temperature |
-20~80℃ |
|
Storage Humidity |
<95%RH(Non-Condensing) |
|
Dimensions |
59 x 45 x 17mm (W x H x D) |
|
Light Source Life Time |
Min. 5years |
|
Weight |
25g |
