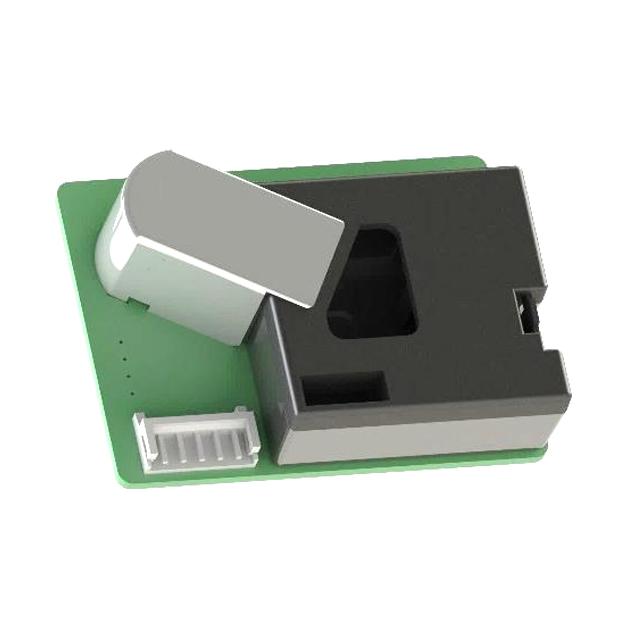

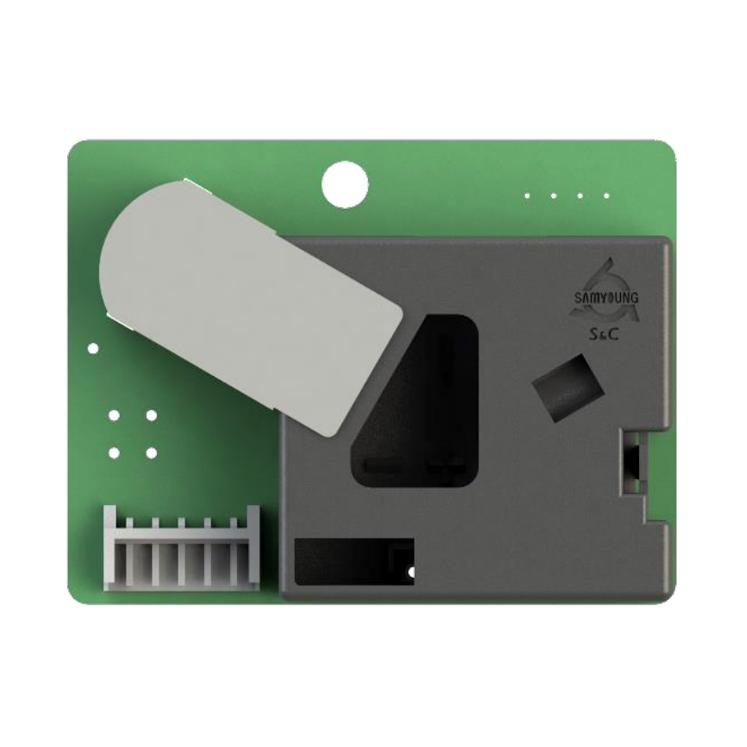

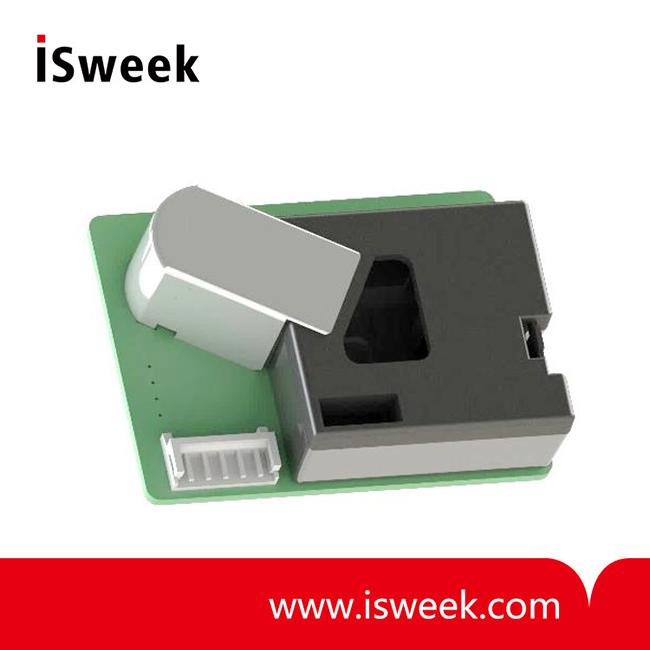

PM2.5/PM1.0 Particle Sensor
-
Price
Price on request ≥1piece
-
Model Number
PSMU Series -
Data Sheet
-
Package
Original packaging -
Specs
PSMU Series -
Quantity
- +Send Inquiry
Find Similar Products
-
Dust Sensor Module for Air Quality Monitor
Model Number：DSM501A
MOQ：1
-
Dust Sensor Module for Air Quality Monitor
Model Number：DSM501B
MOQ：1
-
Alphasense PM2.5 Particle Sensor
Model Number：OPC-N2
MOQ：1
-
Compact Optical Dust Sensor
Model Number：GP2Y1010AU0F
MOQ：1
-
PM2.5 Particle Sensor
Model Number：OPC-R1
MOQ：1
-
PM2.5 Particle Sensor Dust sensor Laser sensor Atmospheric particle monitors
Model Number：OPC-N3
MOQ：1
Product Description
PSMU Series PM2.5/PM1.0 Particle Sensor Description
PSMU Series, in which SAMYOUNG S & C's 20years knowledge and technology are concentrated, is a PM2.5/PM1.0 dedicated sensor with a radical improvement for detection capability at ultra-fine particle range - 0.3μm~1.0μm, which assures PM2.5/PM1.0 weight concentration values more accurate than conventional presumptive sensors.
PSMU Series which performs higher accuracy along with improved sensitivity than conventional sensors provides reliable information to users enabling more accurate and sophisticated control in the applications such as air purifiers, air conditioners and air quality measuring devices.
PSMU Series PM2.5/PM1.0 Particle Sensor Features
• Detectable Particle Size - ≥0.3μm
Real-time PM2.5/PM1.0
• UART Output - μg/m3
• Excellent Accuracy
• High Linearity and Uniformity
• Market-proven Reliability and Durability
PSMU Series PM2.5/PM1.0 Particle Sensor Applications
• Air Solution Products (Air Purifier, Air Conditioner and etc.)
• HVAC Control System
• Smart IAQ Device
• Outdoor Particle Sensing Device
PSMU Series PM2.5/PM1.0 Particle Sensor Product Specifications (Ta=25°C)
PSMU Series, in which SAMYOUNG S & C's 20years knowledge and technology are concentrated, is a PM2.5/PM1.0 dedicated sensor with a radical improvement for detection capability at ultra-fine particle range - 0.3μm~1.0μm, which assures PM2.5/PM1.0 weight concentration values more accurate than conventional presumptive sensors.
PSMU Series which performs higher accuracy along with improved sensitivity than conventional sensors provides reliable information to users enabling more accurate and sophisticated control in the applications such as air purifiers, air conditioners and air quality measuring devices.
PSMU Series PM2.5/PM1.0 Particle Sensor Features
• Detectable Particle Size - ≥0.3μm
Real-time PM2.5/PM1.0
• UART Output - μg/m3
• Excellent Accuracy
• High Linearity and Uniformity
• Market-proven Reliability and Durability
PSMU Series PM2.5/PM1.0 Particle Sensor Applications
• Air Solution Products (Air Purifier, Air Conditioner and etc.)
• HVAC Control System
• Smart IAQ Device
• Outdoor Particle Sensing Device
PSMU Series PM2.5/PM1.0 Particle Sensor Product Specifications (Ta=25°C)
|
Parameter |
Index |
|
Detectable Size |
≥0.3μm |
|
Effective Range |
0 ~ 500 μg/m3 |
|
Maximum Range |
0 ~ 900 μg/m3 |
|
Accuracy |
±25% @ 100 ~ 500 μg/m3 ±25μg @ 0 ~ 100 μg/m3 |
|
Time for Initial Stabilization |
60 sec. after powered on |
|
Response Time |
1sec |
|
Supply Voltage |
DC 5.0V±10% Ripple 30mV or Less |
|
Current Consumption |
Typ. 85mA |
|
Output Signal |
UART |
|
Operating Temperature |
-10 ~ 65°C |
|
Operating Humidity |
<95%RH (Non-Condensing) |
|
Storage Temperature |
-20 ~ 80°C |
|
Storage Humidity |
<95%RH (Non-Condensing) |
|
Dimensions |
59 x 45 x 17mm (W x H x D) |
|
Light Source Life Time |
Min. 5 years |
|
Weight |
25g |
