pH Sensor

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    SE 558

  • Data Sheet

  • Package

    Original packaging

  • Specs

    SE 558

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

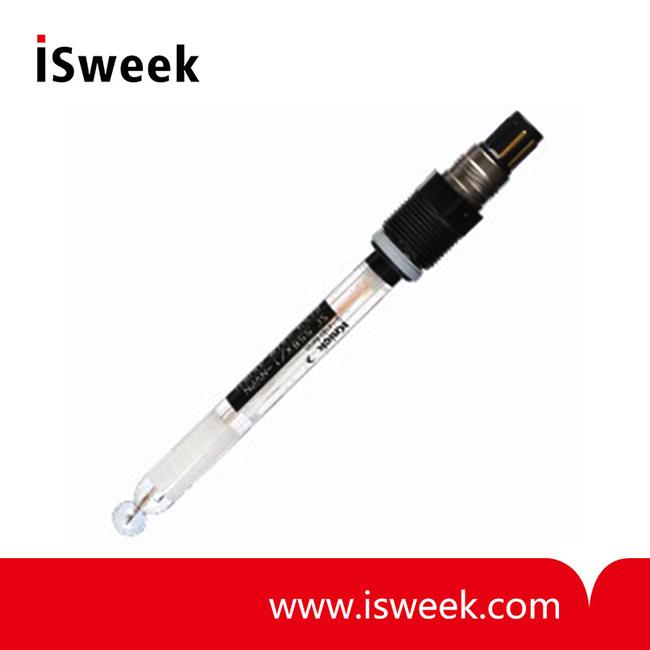

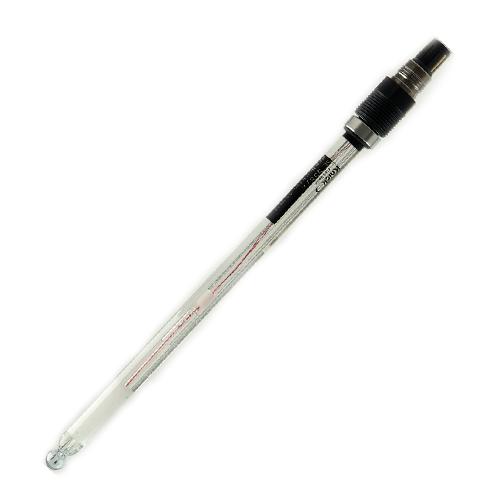

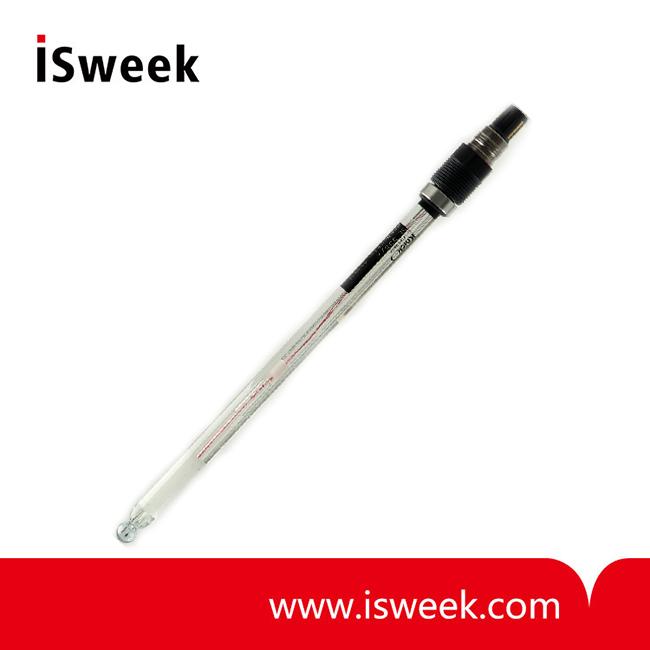

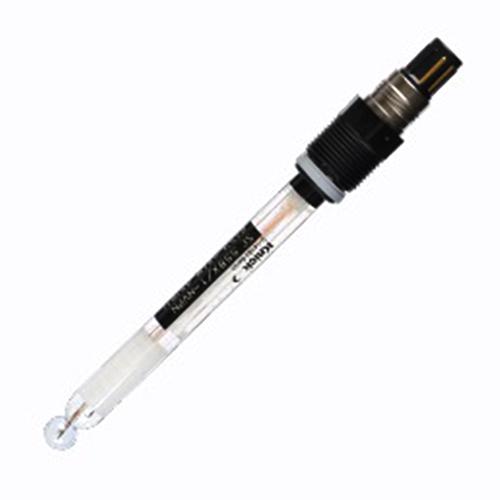

SE 558 pH Sensor
For uncomplicated measurement in ultrapure water, water and analytical chemistry

Low-maintenance pH sensors with gel reference electrolyte The SE 558 sensor has an integrated temperature detector to allow automatic temperature compensation of the pH signal during calibration and operation. The SE 558 sensor is particularly suitable for use in media of very low conductivity. It provides 3 ceramic junctions and a KCl reservoir.

SE 558 pH Sensor Applications
Boiler feed water, condensate, ultrapure water, water supply and distribution, WFI.

SE 558 pH Sensor Facts
 - Low maintenance, no refilling of electrolyte
 - Integrated temperature detector
 - 3 ceramic junctions
 - Independent of flow
 - KCl reservoir
 - Alpha glass, medium impedance, universal glass, fluoride resistant

SE 558 pH Sensor Specifications

pH

 0 ~ 14

Temperature

 -5 ~ +100℃

Pressure

 -1 ... 3 bars (mechanical up to 12 bars)

Temperature detector

 Pt 1000

Sensor material

 Low-impedance standard pH glass, fast response

Reference system

 Ag/AgCl, polymeric electrolyte

Junction

 3 x ceramic

Length

 120 mm / 225 mm

Process adaptation

 Pg 13.5

Sensor cap

 Variopin (VP)
