Product Description

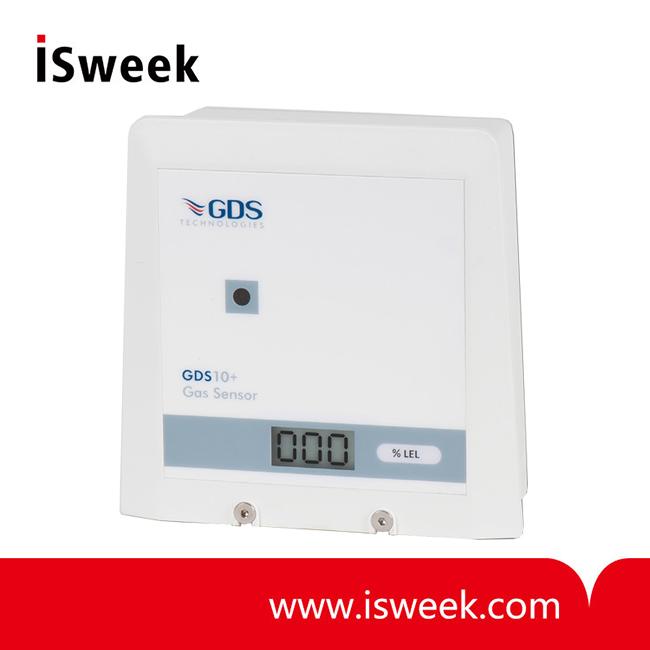

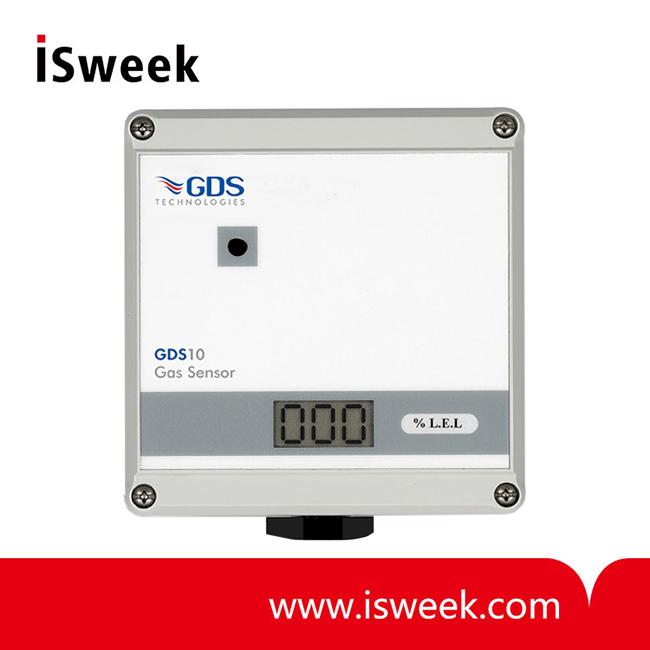

GDS10/GDS10+ Single Point Gas Sensor Description
A fixed gas sensor that meets the requirements for economic and reliable monitoring of gas levels in a wide range of environments and applications. Initially designed for the monitoring of gases within cabins, enclosures and cabinets the addition of an optional mains supply input expanded its use into conventional areas of gas detection covering boiler plant rooms, gas meter houses, battery charger rooms and many other commercial and light industrial applications.
GDS10/GDS10+ Single Point Gas Sensor Features
• Flammable, Oxygen or Toxic Gases
• Compact size
• Single stage alarm
• Alarm relays
• Alarm Sounder / LED
• Digital display
• Wall or panel mount
• 4~20mA analogue output
• IP65
GDS10/GDS10+ Single Point Gas Sensor TECHNICAL
A fixed gas sensor that meets the requirements for economic and reliable monitoring of gas levels in a wide range of environments and applications. Initially designed for the monitoring of gases within cabins, enclosures and cabinets the addition of an optional mains supply input expanded its use into conventional areas of gas detection covering boiler plant rooms, gas meter houses, battery charger rooms and many other commercial and light industrial applications.
GDS10/GDS10+ Single Point Gas Sensor Features
• Flammable, Oxygen or Toxic Gases
• Compact size
• Single stage alarm
• Alarm relays
• Alarm Sounder / LED
• Digital display
• Wall or panel mount
• 4~20mA analogue output
• IP65
GDS10/GDS10+ Single Point Gas Sensor TECHNICAL
|
Gas Type |
Oxygen / Toxic Gases |
|
Input Voltage |
12~30v DC - 24v nominal Optional Mains 230/115vAC 50/60hz Nominal 30mA - 120mA full alarm |
|
Output Standard |
Analogue 4~20 mA (250 ohms max) – sink/source (source mode - standard) Option 1~5v output – solder G |
|
CV-Sensor Cable |
3 core screened |
|
Alarm Relay |
Signal relay contacts S.P.C.O. rated 1A/24v Main relay S.P.C.O. 3A/230v AC Fire Alarm panel signalling – cut F Trip Indicator LED – trip point selectable 10% to full scale (Auto reset) On board sounder Auxiliary output DC volts – standard-as input volts 24v DPM – gas readout display – (zero and span potentiometers used only for DPM setting) |
