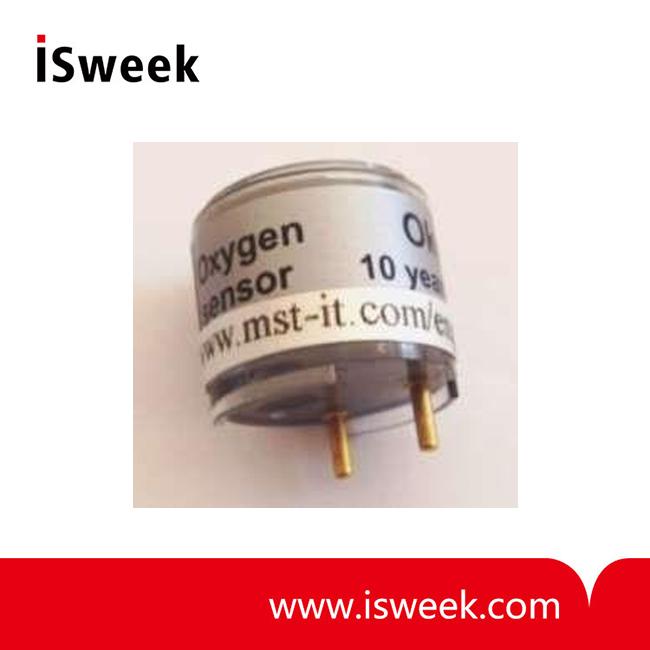

Oxygen sensors
-
Price
Price on request ≥1piece
-
Model Number
Oxygen-O2-2E-30% in CTL-4 -
Data Sheet
-
Package
Original packaging -
Specs
Oxygen-O2-2E-30% in CTL-4 -
Quantity
- +Send Inquiry
Find Similar Products
-
Oxygen Analyzer
Model Number：OMD-625
MOQ：1
-
Medical Electrochemical Galvanic Fuel Cell Percent Oxygen Sensor
Model Number：OKS-1
MOQ：1
-
Medical Electrochemical Galvanic Fuel Cell Percent Oxygen Sensor
Model Number：OKS-2
MOQ：1
-
Medical Electrochemical Galvanic Fuel Cell Percent Oxygen Sensor
Model Number：OKS-3
MOQ：1
-
Medical Electrochemical Galvanic Fuel Cell Percent Oxygen Sensor
Model Number：OKS-4
MOQ：1
-
Medical Electrochemical Galvanic Fuel Cell Percent Oxygen Sensor
Model Number：OKS-10
MOQ：1
Product Description
Oxygen sensors Features:
▪ very long life time
▪ high reliability
▪ built-in transmitter
Oxygen sensors Technical Data:
|
Sensor type |
Oxygen-O2-2E-30% |
|
Measuring principle |
amperometric 2-electrode-sensor |
|
Measuring range |
0-30% vol. O2 |
|
Sensitivity range |
100-300 mV/20.8%vol.O2 |
|
Long term sensitivity drift |
< 10% per 3 years, <20% per 5 years |
|
Deviation from linearity |
<0.3% vol. O2 inside of range 0-30% vol. O2 |
|
Zero voltage at 20℃ |
<0.3% vol. O2 |
|
Response time t 90 at 20℃ |
<20 seconds |
|
Effect of temperature on sensitivity |
<5% inside of range –20℃ to +50℃, built-in transmitter with temperature compensation |
|
Pressure dependence |
linear |
|
Operating conditions |
-35℃ to +50℃; 0 to 98% r.H. (non-condensed) |
|
Best storage conditions |
+5℃ to +20℃; 40 to 60% r.H. |
|
Sensor life expectancy |
>5 years at 20.8% vol.O2, at 20℃ |
|
Warranty |
18 months |
|
Dimensions |
CTL-4 housing (4-Series)height 18 mm, diameter 20 mm |
|
Sensor transmitter output |
two pins, Ø 1.6 mm |
|
None cross sensitivity at 20℃by |
Carbon monoxide <10%vol. Carbon dioxide <30%vol. Hydrogen <30%vol. Mainly VOCs ~ %-range |
